| MAX CUTTING DIAMETER | 11.75" | 298.45 mm |
| MAX CUTTING LENGTH | 22.5" | 571.5 mm |
| X-AXIS TRAVEL | 8.4" | 213.36 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 2" | +/- 2" |
| Z-AXIS TRAVEL | 22.5" | 571.5 mm |
| C-AXIS INDEXING | FULL C-AXIS | FULL C-AXIS |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.5" | 63.5 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 5" | 127 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| TURRET CAPACITY | 24 | 24 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |

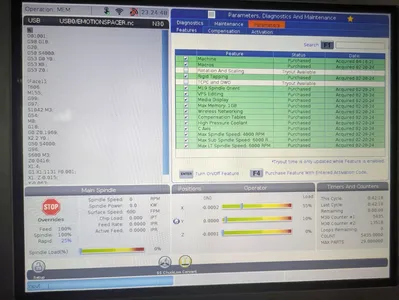

HAAS NEXTGEN CONTROL
Y-AXIS
LIVE TOOLING (6,000 RPM UPGRADE)
SUB SPINDLE
8”, 3-JAW LMC HYDRAULIC CHUCK (MAIN)
5”, 3-JAW LMC HYDRAULIC CHUCK (SUB)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
AUTO DOOR
24-STATION BMT65 TURRET
HIGH-PRESSURE COOLANT (1,000 PSI)
AUTOMATIC COOLANT REFILL SYSTEM
ENCLOSURE EXHAUST SYSTEM
COOLANT TANK OIL SKIMMER
CNC CONTROL CABINET COOLER
AUTO JET AIR BLAST
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DIPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTIVITY
HAASCONNECT: REMOTE MONITORING
EARLY POWER-FAILURE DETECTION MODULE
(1) RADIAL LIVE TOOL HOLDER
(1) AXIAL LIVE TOOL HOLDER
** MACHINE HAS BEEN VERY LIGHTLY USED
** AS OF MAY 2025, FEED CUTTING TIME – 588 HOURS
** ONE-MAN SHOP, OWNER OPERATED
** FULL REPLACEMENT COST, AS EQUIPPED - $190,000
** MACHINE CUT PRIMARILY ALUMINUM & STEEL – SOME PLASTIC & STAINLESS
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** COLLET CHUCKS SHOWN IN PHOTOS ARE NOT INCLUDED WITH THE MACHINE. 3-JAW CHUCKS WILL BE INCLUDED INSTEAD.
This equipment has been sold. Similar equipment available now is shown below.
