Used 2005 HAAS TL-1 | CNC Lathes 2-Axis

Sell Your HAAS TL-1
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Request Financing
Sell Your HAAS TL-1

Overview

Type:
CNC Lathes 2-Axis
Manufacturer:
HAAS
Model:
TL-1
Year:
2005
Stock #:
499569
Status:
For Sale

Description

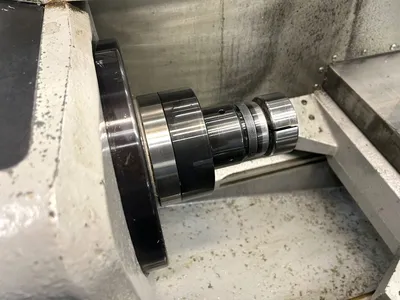

917 Spindle Hours, 10" Chuck, 5C Collet, 4-Station Tool Post. This low hours originally owned well maintained 2005 Haas TL-1 CNC 2-axis lathe is in excellent condition and is perfect for precision metalworking.

MAX SWING16"406.4 mm
SWING OVER CROSS SLIDE8.5"215.9 mm
MAX CUTTING DIAMETER16"406.4 mm
MAX CUTTING LENGTH30"762 mm
DISTANCE BETWEEN CENTERS30"762 mm
X-AXIS TRAVEL8"203.2 mm
Z-AXIS TRAVEL30"762 mm
CHUCK SIZE10"254 mm
BAR CAPACITY1.75"44.45 mm
SPINDLE BORE2.31"58.674 mm
SPINDLE NOSEA2-6A2-6
SPINDLE MOTOR7.5 hp5.6 kW
SPINDLE SPEED1,800 RPM1,800 RPM
TURRET POSITIONS4-STATION TURRET4-STATION TURRET

5C COLLET
10", 3-JAW MANUAL CHUCK

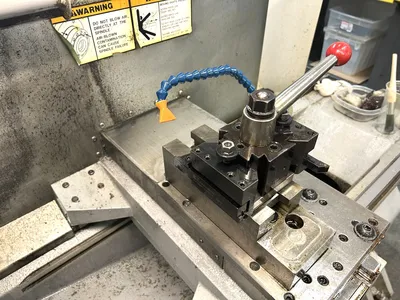

MANUAL INDEXABLE 4-STATION TOOL POST
COOLANT SYSTEM
SPINDLE DRIVE LINE ACCELERATOR
M19 SPINDLE LOAD MONITOR
INTUITIVE PROGRAMMING SYSTEM (IPS)
RNDS IPS HANDWHEEL
MANUAL JOG
SPINDLE OREINTATION
RIGID TAPPING
QUICK CODE
MACROS
USB

** ORIGINAL OWNER
** MACHINE PRIMARILY USE - MACHINING DOWN POLYETHYLENE

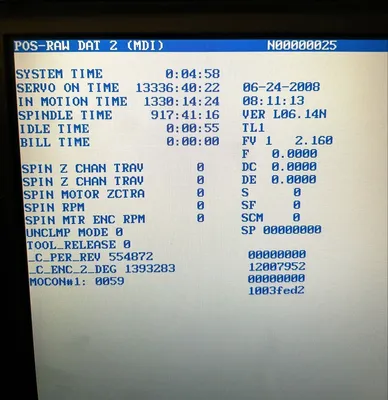

** ACTUAL HOURS AS PICTURED
** AS OF JULY, 2025 - SPINDLE TIME HOURS: 917

** MACHINE PRICE NEW AS EQUIPPED: $57,000+
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
