| SWING OVER CROSS SLIDE | 31.75" | 806.45 mm |
| MAX CUTTING DIAMETER | 18" | 457.2 mm |
| MAX CUTTING LENGTH | 23" | 584.2 mm |
| X-AXIS TRAVEL | 12.5" | 317.5 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 2" | +/- 2" |
| Z-AXIS TRAVEL | 23" | 584.2 mm |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 4" | 101.6 mm |
| SPINDLE BORE | 4.6" | 116.84 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 40 hp | 29.8 kW |
| SPINDLE SPEED | 2,400 RPM | 2,400 RPM |
| TURRET CAPACITY | 24 | 24 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |
Y-AXIS
LIVE MILLING (6,000 RPM)
2-SPEED GEARBOX
12”, 3-JAW HYDRAULIC CHUCK
4” BAR CAPACITY
PROGRAMMABLE HYDRAULIC TAILSTOCK

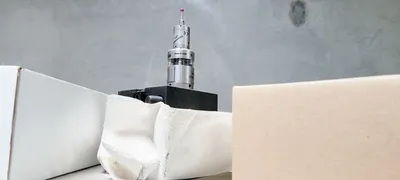

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
TOOL PRESETTER
PARTS CATCHER

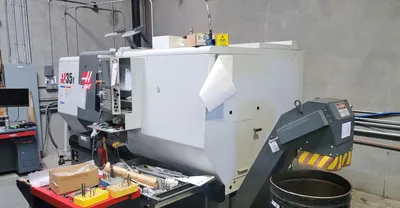

CHIP CONVEYOR

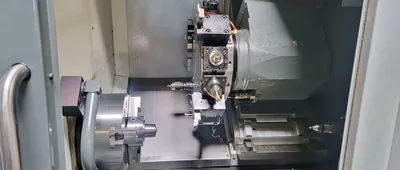

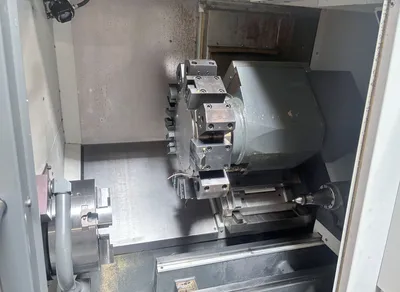

24-STATION BMT65 TURRET
HIGH-INTENSITY LIGHTING

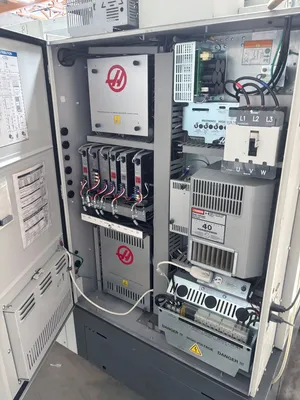

CNC CONTROL CABINET COOLER
EARLY POWER-FAULT DETECTION MODULE
INTUITIVE PROGRAMMING SYSTEM (IPS)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
(10) LIVE TOOL HOLDERS
AN ASSORTMENT OF STATIC HOLDERS

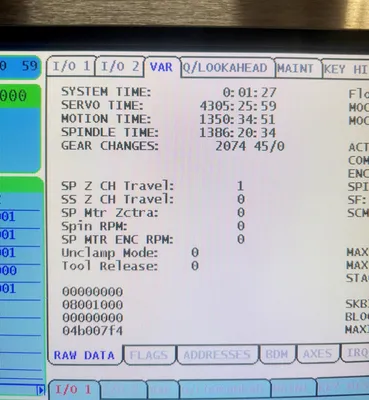

** AS OF JULY 2025, SPINDLE TIME - 1,386 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000

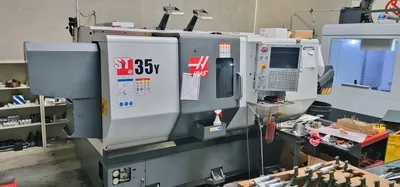

** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
