| MAX SWING | 20" | 508 mm |
| MAX CUTTING DIAMETER | 12.6" | 320.04 mm |
| MAX CUTTING LENGTH | 21" | 533.4 mm |
| X-AXIS TRAVEL | 6.9" | 175.26 mm |
| Z-AXIS TRAVEL | 21.7" | 551.18 mm |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.5" | 63.5 mm |
| SPINDLE BORE | 3" | 76.2 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |

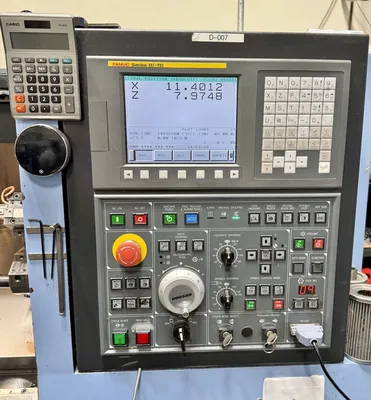

FANUC 0i-TC CONTROL

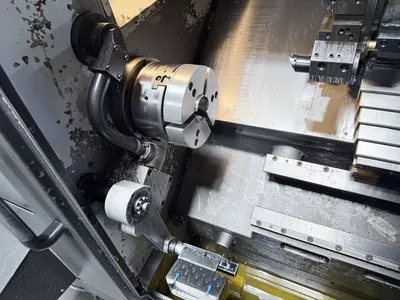

8”, 3-JAW HYDRAULIC CHUCK
2.5” BAR CAPACITY
TAILSTOCK
TOOL PRESETTER
PARTS CATCHER

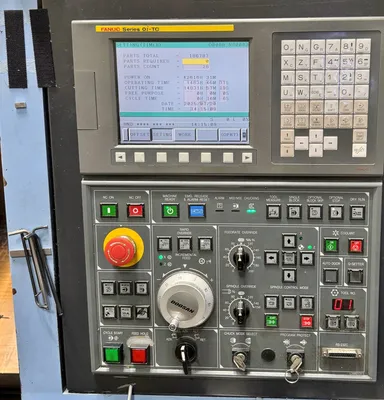

** AS OF JULY 2025, CUTTING TIME – 14,831 HOURS
** MACHINE CUT PRIMARILY ALUMINUM, INCONEL & STAINLESS
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

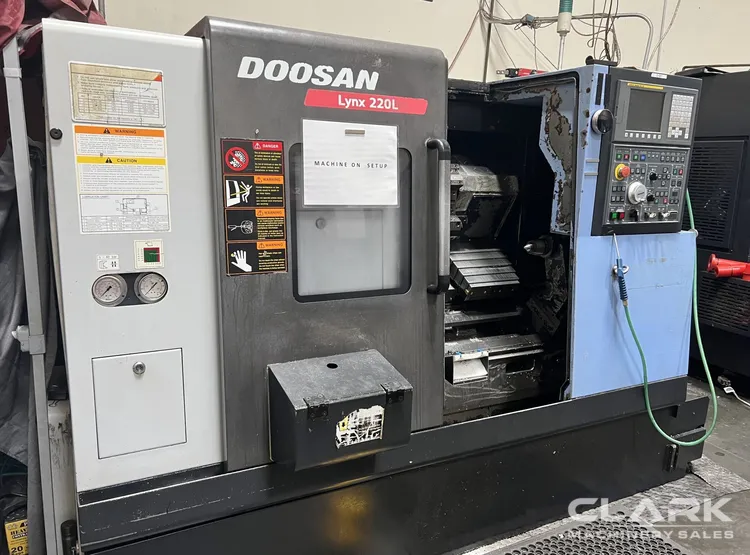

** 2011 DOOSAN LYNX 220A ALSO AVAILABLE IN THE SAME SHOP
