| SWING OVER BED | 24.8" | 629.92 mm |
| SWING OVER SADDLE | 18.1" | 459.74 mm |
| MAX CUTTING DIAMETER | 16.1" | 408.94 mm |
| MAX CUTTING LENGTH | 24" | 609.6 mm |
| X-AXIS TRAVEL | 10.4" | 264.16 mm |
| Z-AXIS TRAVEL | 26.8" | 680.72 mm |
| C-AXIS INDEXING | 0.001 | 0.001 |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 3.23" | 82.042 mm |
| SPINDLE BORE | 3.6" | 91.44 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 3,500 RPM | 3,500 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 945 in/min. | 24 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,181 in/min. | 30 m/min. |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT55 | BMT55 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| LIVE MILLING MOTOR | 7.4 hp | 5.5 kW |
| Dimensions | 133.7" X 67.2" X 70"H | 133.7" X 67.2" X 70"H |
| Weight | 9,590 LBS | 9,590 LBS |

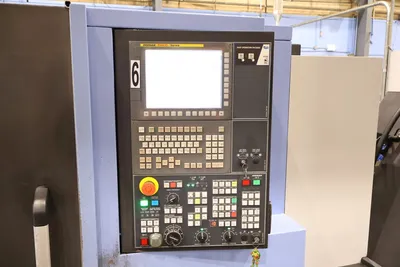

FANUC OiTF CNC CONTROL WITH DOOSAN EZ GUIDE i CONVERSATIONAL PROGRAMMING
3.23" BAR CAPACITY

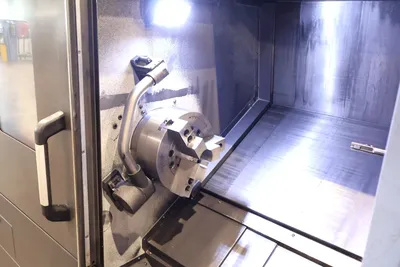

12" SAMCHULLY HS-12 3-JAW HYDRAULIC CHUCK (UPGRADE FROM 10")
TOOL SETTER

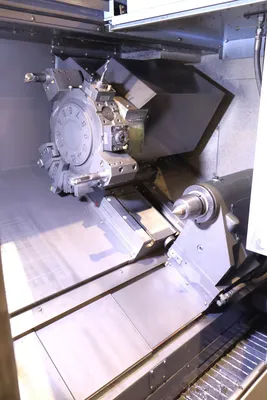

TAILSTOCK
3 COLOR TOWER LIGHT
WAY LUBE BELT SKIMMER

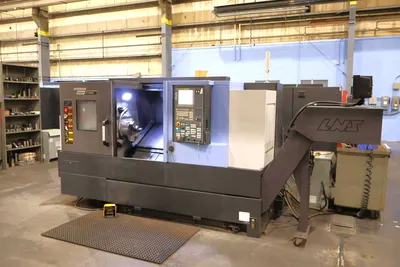

LNS TURBO SIDE DISCHARGE CHIP CONVEYOR WITH M-CODE CAPABILITY
AUTO DOOR
MISC. STICK AND BORING TOOL HOLDERS
(3) LIVE HOLDERS TO INCLUDE: (2) X-AXIS AND (1) Z-AXIS
SOLID BOX WAY CONSTRUCTION ON HEAVY DUTY ONE-PIECE MEEHANITE CAST IRON BED

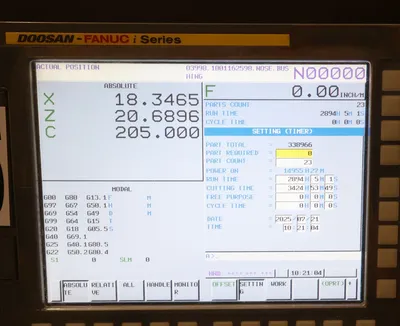

HOURS OF USE AS OF 7/21/2025 (AS SEEN IN PICTURE):
* POWER ON: 14,955 HOURS
* RUN TIME: 2,894 HOURS
* CUTTING TIME: 3,424 HOURS
--- ALSO AVAILABLE IN SAME FACILITY: (2) GT PUMA 2600M, (1) GT PUMA 3100LM
REPLACEMENT COST OF ABOVE EQUIPPED MACHINE IF PURCHASE NEW TODAY: $150,000
