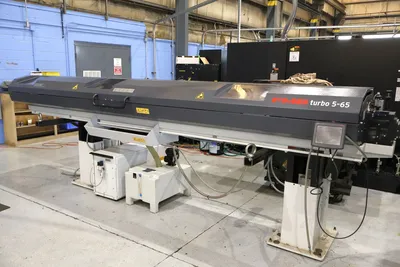

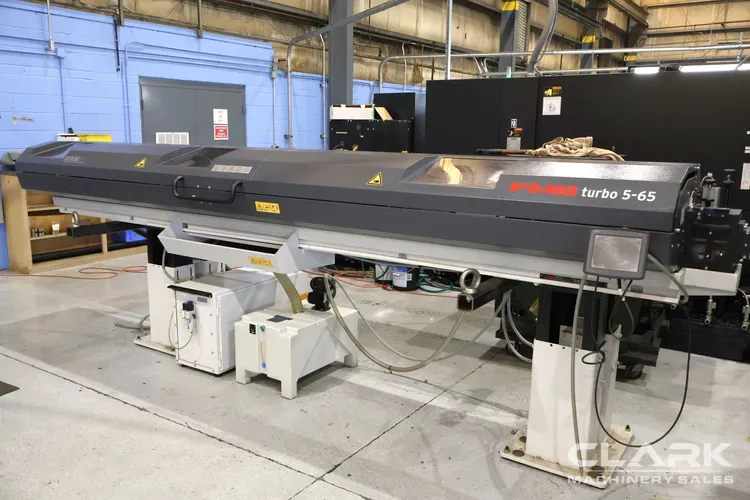

Used 2021 FMB TURBO 5-65 | Magazine Type Bar Loaders
ConditionUsed
1 available
FMB TURBO 5-65, manufactured in 2021, offers a bar capacity of up to 67mm and 12' length. Equipped with an automatic loading magazine, Bosch control, and quick-change features. Ideal for efficient and precise operations.
BAR DIAMETER CAPACITY - NO BAR PREPARATION: 5MM TO 62MM
BAR DIAMETER CAPACITY - WITH BAR PREPARATION OR FRONT EJECT: 5MM TO 67MM
MAXIMUM BAR LENGTH: 3800MM (12 FEET 5 INCHES)
MINIMUM BAR LENGTH: 1000MM (39.4")
MAXIMUM REMNANT LENGTH: 530MM (20.8")
MAGAZINE RACK CAPACITY: 11
BAR LOADING CYCLE TIME: 35 SECONDS FOR 12-FOOT BAR
MATERIAL STRAIGHTNESS SPECIFICATION: .007" TIR/FOOT OF MATERIAL (V BLOCKS, 3 POINTS EQUIDISTANCE)
FEED FORCE PUSHER TORQUE): MAX 750 N, ADJUSTABLE
FORWARD FEED RATE: 2360 INCHES/MINUTE MAX, ADJUSTABLE
IN-FEED RATE: 0 - 1650 INCHES/MINUTE MAX, ADJUSTABLE
POWER CONSUMPTION: 1.5 KW / 2KVA
OPERATING VOLTAGE: 230V/60HZ 3-PHASE
CONTROL VOLTAGE: 24V DC
OIL CAPACITY: 80 LITERS (22 GALLONS)
OIL VISCOSITY: ISO 150 CST
COMPRESSED AIR SUPPLY: 0.6 MPA (6 BAR) - 90 PSI
COMPRESSED AIR CONSUMPTION: APPROX 10 LITERS PER LOADING CYCLE
MACHINE WEIGHT (WITHOUT OIL): 6,400 LBS
BAR DIAMETER CAPACITY: 5MM TO 67MM (.196" - 2.637")
AUTOMATIC LOADING MAGAZINE - 11 LINEAR INCHES OF RACK CAPACITY
DOUBLE PUSHER, SPACE SAVING DESIGN
POLYURETHANE GUIDE CHANNEL SYSTEM -- NOISE & VIBRATION DAMPENING
QUICK CHANGE GUIDE CHANNELS AND PUSHER
HYRDODYNAMIC SUPPORT VIA HIGH VOLUME OIL FLOW INTO CHANNELS
BOSCH INDRADRIVE CONTROL SYSTEM WITH 48 PART PROGRAM STORAGE, ALLOWS EASY BAR FEEDER PARAMETER CHANGES
AUTOMATIC REMNANT RETRACTION, SELF-CENTERING GRIPPER
CUSTOM LATHE CABLE AND INTERFACE PLUGS
REPLACEMENT COST OF ABOVE EQUIPPED MACHINE IF PURCHASED NEW TODAY: $59,000
*** NOTE: THIS BARFEED WAS PURCHASED NEW IN 2021 AND USED VERY LITTLE.
