| X-AXIS MEASURING RANGE | 39" | 990.6 mm |
| Y-AXIS MEASURING RANGE | 26" | 660.4 mm |
| Z-AXIS MEASURING MACHINE | 20" | 508 mm |
| CMM TYPE | RENISHAW PH20 | RENISHAW PH20 |
| APPROX MACHINE WEIGHT | 2,434 lb | 1,104 kg |
| APPROX MACHINE DIMENSIONS | 65.4" x 46.5" x 99.7"H | 65.4" x 46.5" x 99.7"H |

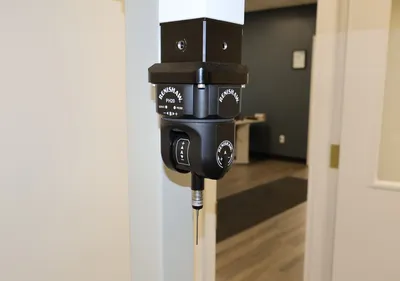

RENISAHW PH20 INDEXING PROBE HEAD

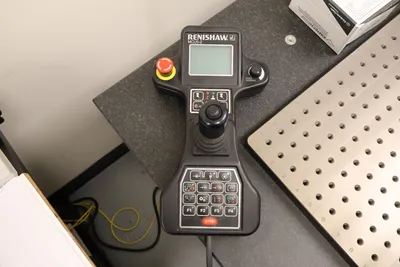

RENISAHW MCU5-2 HANDBOX
UCC-T5 CONTROLLER

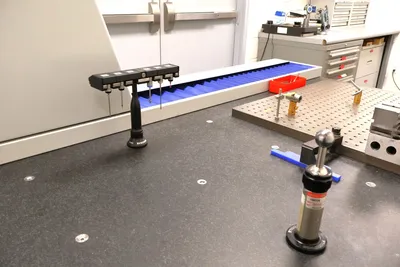

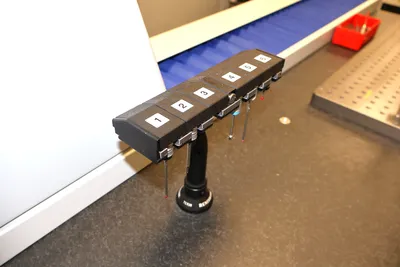

6-POSITION STYLUS CHANGER ON TABLE
PH20 SPECIFICATIONS:
* HEAD TYPE: 5-AXIS COTINUOUS
* HEAD POSITIONS: INFINITE
* ANGULAR TILT: +/- 115 DEG
* ANGULAR ROTATION: INFINITE
NOTE: MACHINE IS IN PLANT, UNDER POWER -- AVAILABLE IMMEDIATELY
OTHER ITEMS IN THE QUALITY CONTROL ROOM AT THIS FACILITY ARE ALSO AVAILABLE, PLEASE INQUIRE.
