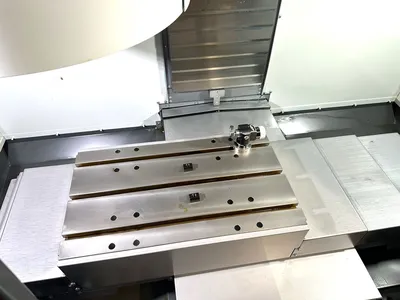

| TABLE LENGTH | 26" | 660.4 mm |
| TABLE WIDTH | 14" | 355.6 mm |
| X-AXIS TRAVEL | 20" | 508 mm |
| Y-AXIS TRAVEL | 16" | 406.4 mm |
| Z-AXIS TRAVEL | 20" | 508 mm |
| SPINDLE SPEED | 8,100 RPM | 8,100 RPM |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |

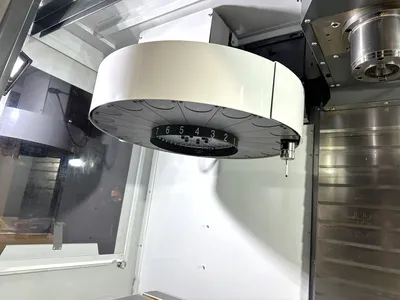

| TOOL CAPACITY (ATC) | 20 | 20 |
| ROTARY OR TRUNNION | Yes | Yes |

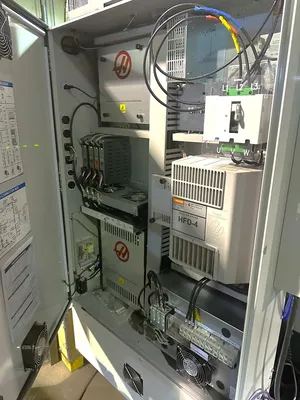

HAAS CNC CONTROL
300 PSI THROUGH SPINDLE COOLANT
WIRELESS INTUITIVE PROBING SYSTEM: RENISHAW (WIPS-R)

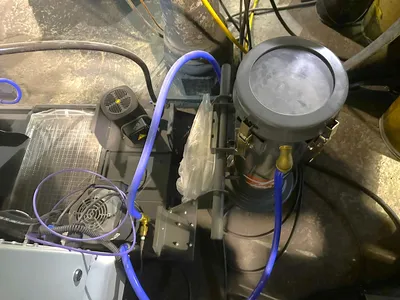

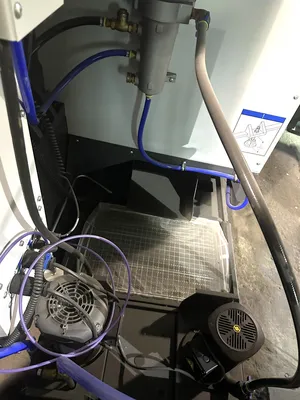

AUXILIARY COOLANT FILTER SYSTEM

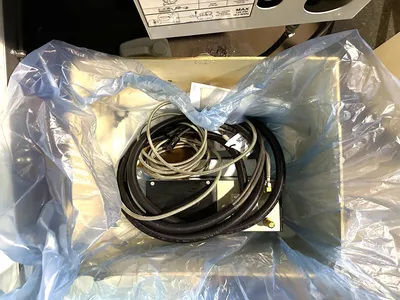

4TH AXIS DRIVE AND WIRING

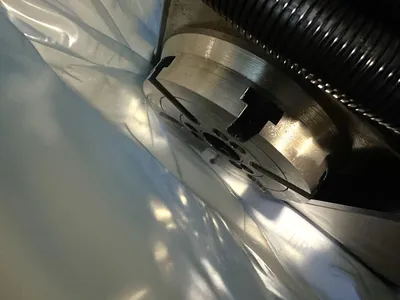

HAAS HRT-160 ROTARY TABLE

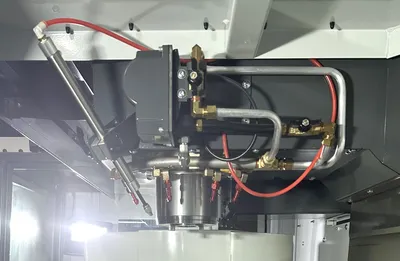

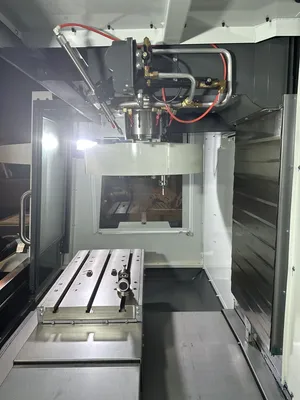

PROGRAMMABLE COOLANT NOZZLE
CHIP AUGER
AUTOMATIC AIR GUN
MACROS
ROTATION & SCALING
RIGID TAPPING
M19 SPINDLE ORIENT
VPS EDITING
MEDIA DISPLAY
1 GB MEMORY

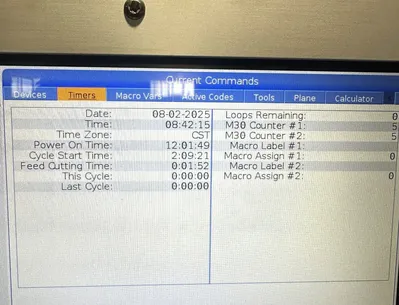

HOURS OF USE, AS OF 8/2/2025 (ZERO USE):
* POWER ON TIME: 12 HOURS
* CYCLE START TIME: 2 HOURS
* FEED CUTTING TIME: 1.52 MINUTES
*** NOTE: COMPANY RECEIVED MACHINE IN 2021, HAD IT INSTALLED, AND NEVER CUT A CHIP. MACHINE HAS NOT RUN COOLANT, NEVER HAD VISES ON TABLE.
REPLACEMENT COST IF ABOVE SYSTEM PURCHASED TODAY NEW: $105,000
IN PLANT, UNDER POWER - AVAILABLE IMMEDIATELY
