| MAX CUTTING DIAMETER | 12" | 304.8 mm |
| MAX CUTTING LENGTH | 32.8" | 833.12 mm |
| DISTANCE BETWEEN CENTERS | 39.3" | 998.22 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 4.13" | +/- 4.13" |
| BAR CAPACITY | 2.5" | 63.5 mm |
| SPINDLE BORE | 3.15" | 80.01 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,500 RPM | 4,500 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - BAR CAPACITY | 2" | 50.8 mm |
| SUB SPINDLE - SPINDLE BORE | 2.48" | 62.992 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE MOTOR | 15 hp | 11.2 kW |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| B-AXIS MILLING SPEED | 12,000 RPM | 12,000 RPM |
| B-AXIS SPINDLE TAPER | CAPTO C4 | CAPTO C4 |
| B-AXIS TOOL POSITIONS | 48 | 48 |
| TURRET CAPACITY | 12 STATIONS (24 INDEXING POSITIONS) | 12 STATIONS (24 INDEXING POSITIONS) |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 8,000 RPM | 8,000 RPM |
| LIVE MILLING MOTOR | 10 hp | 7.5 kW |

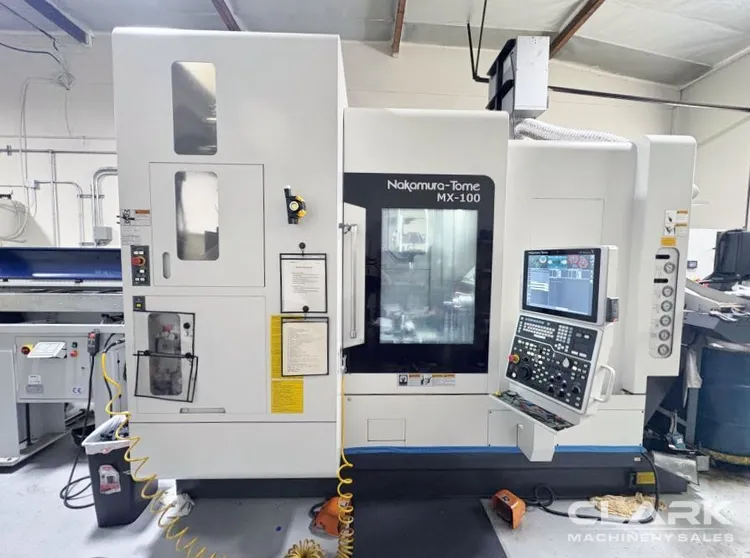

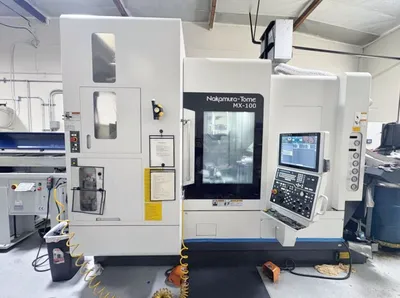

NT SMARTX CONTROL (FANUC 31i-B5 CONTROL)

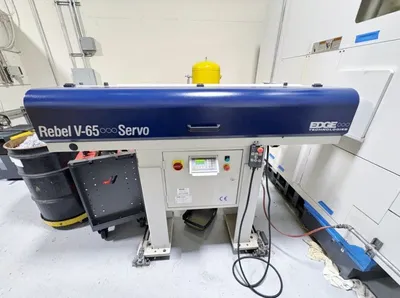

EDGE REBEL V-65 SERVO MAGAZINE BAR FEEDER
B-AXIS MILLING SPINDLE (12,000 RPM, CAPTO C4)
BIG BORE (2.5" BAR CAPACITY) - MAIN SPINDLE
HAINBUCH COLLET CHUCKS (MAIN & SUB)
SUB SPINDLE
Y-AXIS
48-POSITION TOOL CHANGER (CAPTO C4)
12-POSITION (24 INDEXING) LOWER TURRET
LIVE MILLING ON LOWER TURRET (UPGRADED 8,000 RPM)

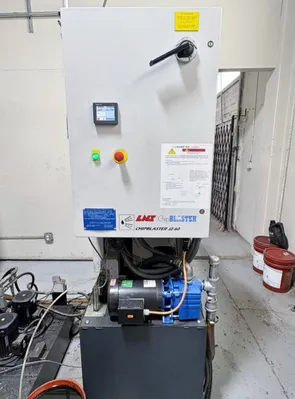

CHIP BLASTER HIGH-PRESSURE COOLANT UNIT

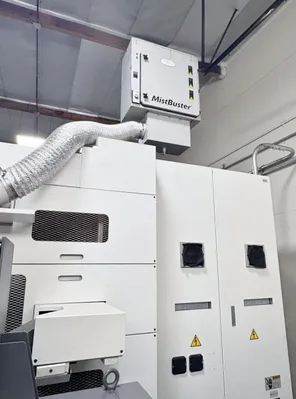

MISTBUSTER MIST COLLECTOR
CHIP CONVEYOR (LNS TURBO MH250)
PARTS CATCHER
APPROX. (48) CAPTO C4 TOOL HOLDERS INCLUDED
** FULL REPLACEMENT COST, AS EQUIPPED - $650,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
