| PALLET WIDTH | 15.7" | 398.78 mm |
| PALLET LENGTH | 15.7" | 398.78 mm |
| PALLET INDEXING | FULL 4TH | FULL 4TH |
| NUMBER OF PALLETS | 2 | 2 |
| MAX WORKPIECE WEIGHT | 880 lb | 399.2 kg |
| X-AXIS TRAVEL | 22" | 558.8 mm |
| Y-AXIS TRAVEL | 25" | 635 mm |
| Z-AXIS TRAVEL | 25" | 635 mm |
| SPINDLE SPEED | 14,000 RPM | 14,000 RPM |
| SPINDLE TAPER | HSK 63A | HSK 63A |
| TOOL POSITIONS (ATC) | 133 | 133 |

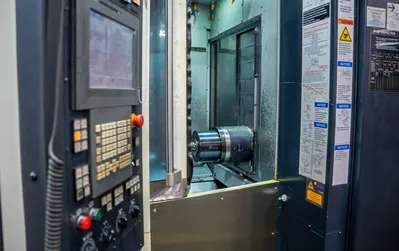

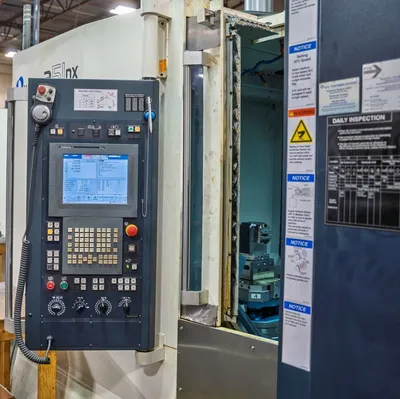

PRO 5 CONTROL
FULL 4TH AXIS

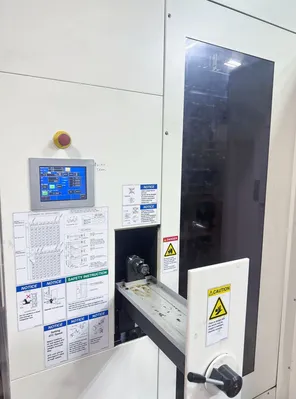

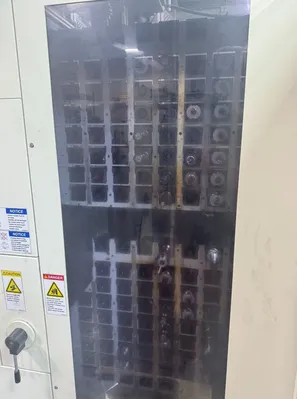

133 TOOL POSITIONS

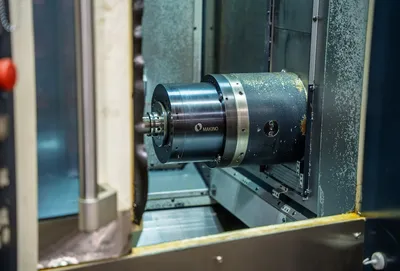

14,000 RPM SPINDLE (HSK-63A TAPER)
THROUGH-SPINDLE COOLANT (1,000 PSI)
CHIPBLASTER (JV40) HIGH-PRESSURE COOLANT UNIT
DONALDSON MIST COLLECTOR
BLUM PROBING SYSTEM

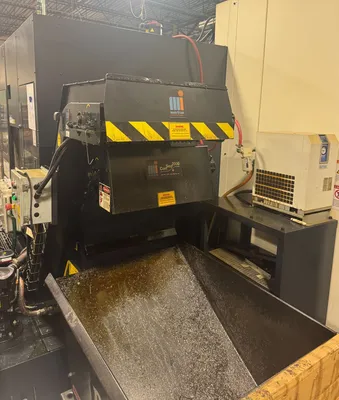

MAYFRAM CONSEP 2000 CHIP CONVEYOR

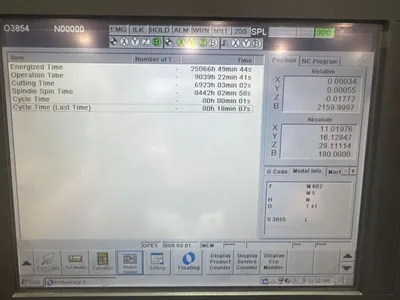

** AS OF AUGUST 2025, SPINDLE TIME – 8,442 HOURS
** MACHINE CUT PRIMARILY ALUMINUM & STEEL
** FULL REPLACEMENT COST, AS EQUPPED - $425,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

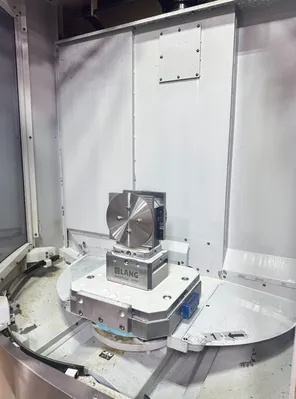

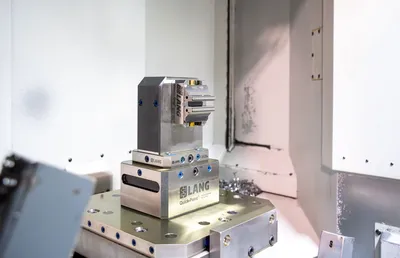

** LANG TOMBSTONES SHOWN IN PHOTOS ARE NOT INCLUDED WITH THE MACHINE
