2021 AWR VBX-260 LOAD AND GO & FANUC ROBOT LR MATE 200iD14L
ConditionUsed
1 available
Over 50% off the price of new as equipped. This originally owned 2021 AWR VBX-260 Load & Go with the 6-axes Fanuc Robot LR Mate 200iD can queue up to 4 different 2-operation OP10/OP20 parts at a time. Automation Within Reach's tending loading and unloading system for mills rolls right up to your mill and locks into place. 8" cube maximum part size and 21.6 lb (top jaws + part) payload capacity. VBX allows for 3, 4, 5, 6, or 8 parts per shelf. No teach pendant or robot programming required.

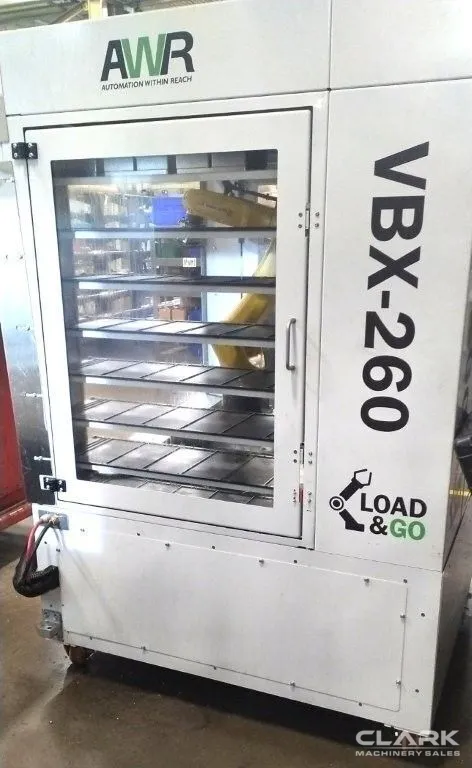

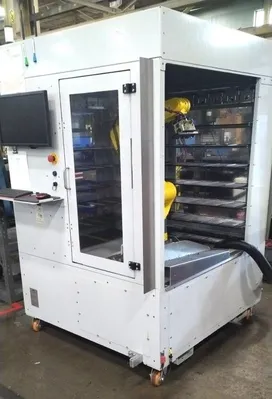

AWR VBX-260 LOAD & GO

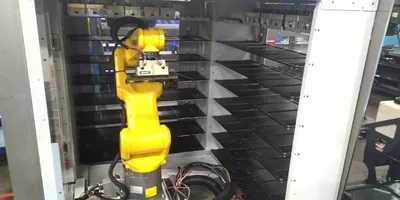

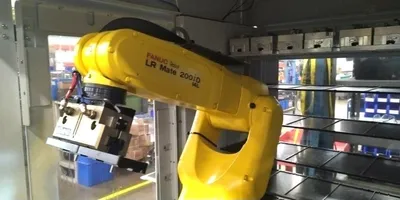

FANUC ROBOT LR MATE 200ID 14L (6-AXIS)

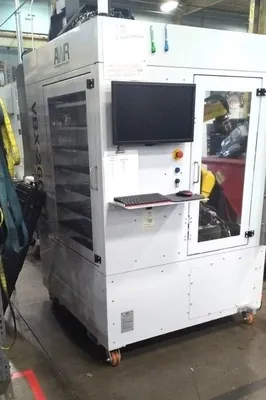

EASY VBX USER INTERFACE
CUSTOMIZABLE SHELVES
3, 4, 5, 6, OR 8 PARTS ALLOWED PER SHELF
MULTIGRIP WORKHOLDING BASEJAWS & INTERCHANGEABLE TOPJAWS
MACHINABLE TOPJAWS HOLD PART FOR EACH MACHINING OPERATION
TOPJAWS SNAP ONTO BASEJAWS
LOADED JAWS PLACED INTO SLOT ON TOP SHELF
QUEUE UP TO 4 DIFFERENT OP10/OP20 PARTS AT A TIME
LOAD & UNLOAD DURING OPERATION WITHOUT PULLING VBX AWAY FROM CNC MILL
HAND HELD TABLET (CONNECTS TO ROBOT)
(4) SETS OF 1" THICK JAWS
(24) SETS OF 2” THICK JAWSINCLUDES CALIBRATION KIT (BRACKET)
** ORIGINAL OWNER
** REPLACEMENT COST NEW AS EQUIPPED: 130,000+
** IN PLANT, NEAR POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
