| TABLE LENGTH | 23.6" | 599.44 mm |
| TABLE WIDTH | 14.3" | 363.22 mm |
| X-AXIS TRAVEL | 31.5" | 800.1 mm |
| Y-AXIS TRAVEL | 24" | 609.6 mm |
| Z-AXIS TRAVEL | 20" | 508 mm |
| A-AXIS ROTATION | -42/+120 | -42/+120 |
| C-AXIS ROTATION | 360 | 360 |
| SPINDLE SPEED | 15,000 RPM | 15,000 RPM |
| SPINDLE MOTOR | 35 hp | 26.1 kW |
| SPINDLE TAPER | CAT 40 (BIG PLUS) | CAT 40 (BIG PLUS) |
| TOOL CAPACITY (ATC) | 30 | 30 |
| RAPID TRAVERSE - X AXIS | 1,417 in/min. | 36 m/min. |
| RAPID TRAVERSE - Z-AXIS | 1,417 in/min. | 36 m/min. |
| ROTARY OR TRUNNION | Yes | Yes |

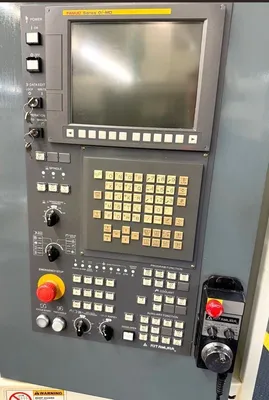

FANUC 0i-MD CONTROL

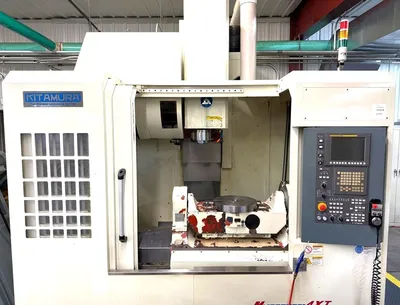

BUILT-IN 4TH/5TH AXIS TRUNNION TABLE
4 AXES SIMULTANEOUS CONTROL (4 + 1)
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (220 PSI)
15,000 RPM SPINDLE

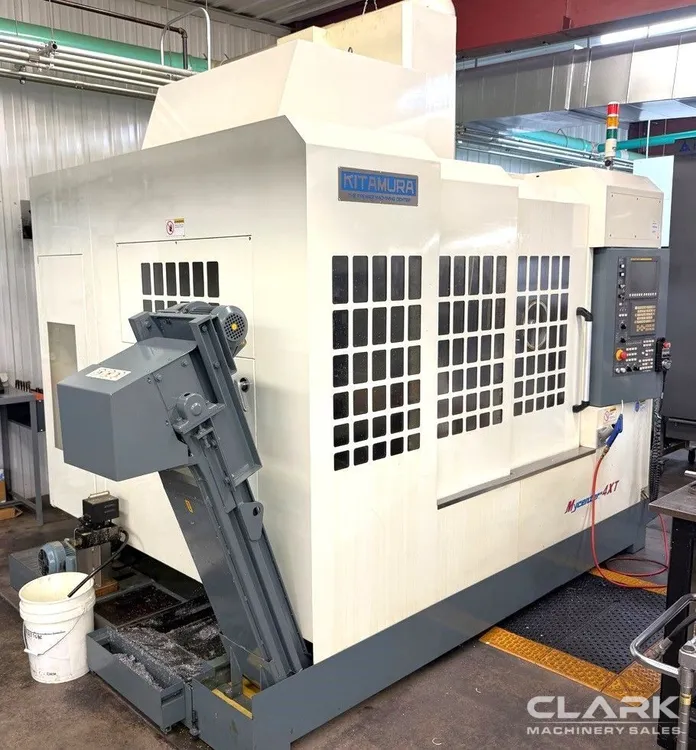

CHIP CONVEYOR
SPINDLE CHILLER
BOX WAY (4 BOX WAYS ON Y-AXIS)

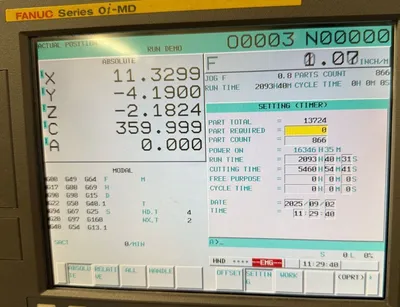

** AS OF 09/02/2025 (AS PICTURED):
- POWER ON TIME: 16,346 HOURS
- CUTTING TIME: 5,460 HOURS
** MACHINE CUT PRIMARY ALUMINUM
** REPLACEMENT COST, AS EQUIPPED - $250,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
