| MAX SWING | 39.37" | 1,000 mm |
| MAX CUTTING DIAMETER | 36.22" | 919.99 mm |
| MAX CUTTING LENGTH | 33.86" | 860.04 mm |
| CHUCK SIZE | 35.43" | 899.92 mm |
| MAX WEIGHT ON TABLE | 2,640 lb | 1,197.5 kg |
| X-AXIS TRAVEL | 19.09" | 484.89 mm |
| Z-AXIS TRAVEL | 33.86" | 860.04 mm |
| SPINDLE SPEED | 1,250 RPM | 1,250 RPM |
| SPINDLE MOTOR | 40 hp | 29.8 kW |
| RAPID TRAVERSE RATE | 944.9 in/min. | 24 m/min. |
| LIVE TOOLING SPEED | 4,000 RPM | 4,000 RPM |
| LIVE TOOLING MOTOR | 7.5 hp | 5.6 kW |
| TOOL POSITIONS (ATC) | 12 | 12 |
| Dimensions | 130" X 112" X 145.39"H | 130" X 112" X 145.39"H |
| Weight | 25,740 LBS | 25,740 LBS |

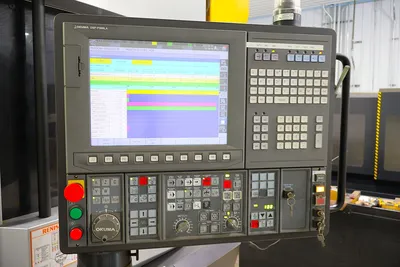

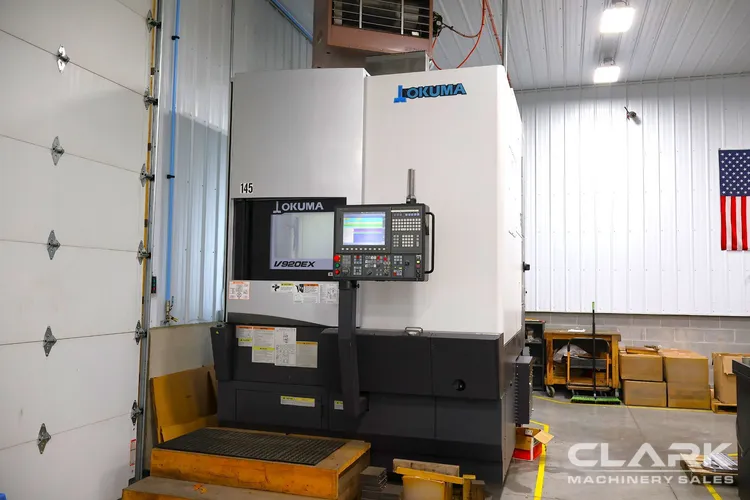

OSP-P300LA CNC CONTROL

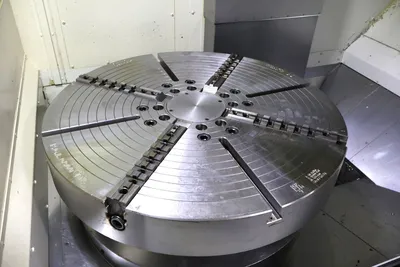

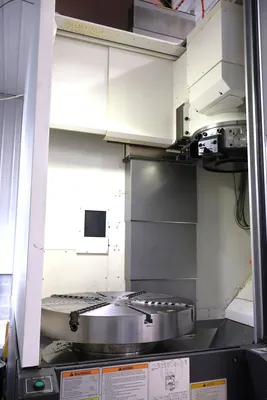

900MM (35.43") FORKARDT 4-JAW CHUCK
GEARED SPINDLE
X AND Y BOX WAY DESIGN
MILLING FUNCTION
AUTOGAUGING

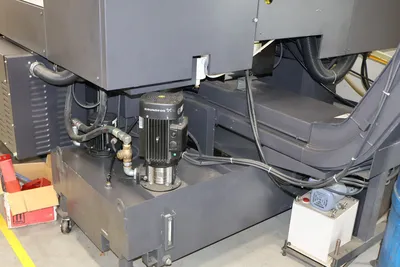

SHOWER COOLANT
OKUMA ADVANCED ONE TOUCH (AOT) - CONVERSATIONAL PROGRAMMING

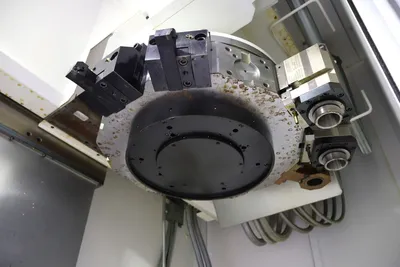

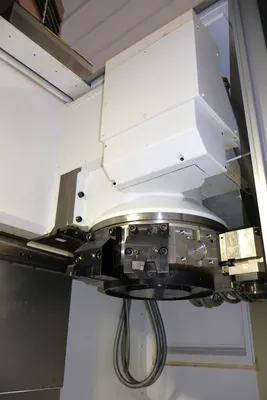

STATIC AND MILLING TOOLS
MACHINE WAS PURCHASED NEW 11/2022. INSTALLED, NEVER PUT INTO PRODUCTION.

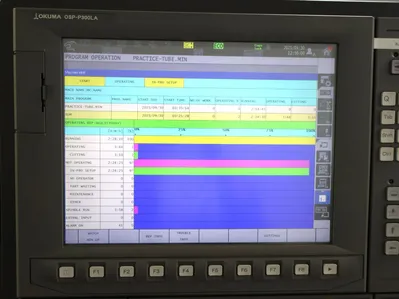

HOURS AS OF 9/30/2025 (AS PICTURED):
* RUNNING: 2 HOURS 28 MINUTES
* OPERATING: 3 MINUTES
* CUTTING: 3 MINUTES
* SPINDLE RUN: 3 MINUTES 58 SECONDS

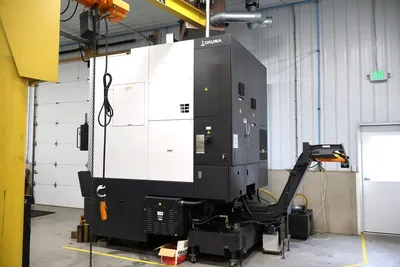

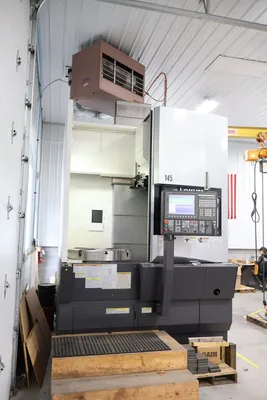

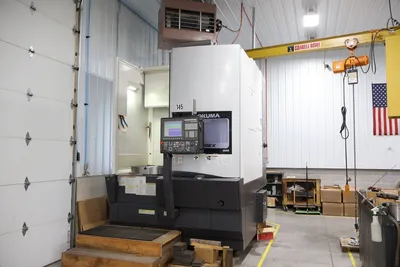

*** MACHINE IS IN "LIKE NEW" CONDITION - IN PLANT, UNDER POWER - AVAILABLE FOR IMMEDIATE SALE
