| MAX CUTTING DIAMETER | 13.75" | 349.25 mm |
| MAX CUTTING LENGTH | 32.5" | 825.5 mm |
| X-AXIS TRAVEL | 9.4" | 238.76 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 2" | +/- 2" |
| Z-AXIS TRAVEL | 32.5" | 825.5 mm |
| CHUCK SIZE | 10" | 254 mm |
| BAR CAPACITY | 3" | 76.2 mm |
| SPINDLE BORE | 3.5" | 88.9 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 4,500 RPM | 4,500 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 8" | 203.2 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE MOTOR | 15 hp | 11.2 kW |
| SUB SPINDLE - SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| TURRET CAPACITY | 24 STATIONS | 24 STATIONS |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |

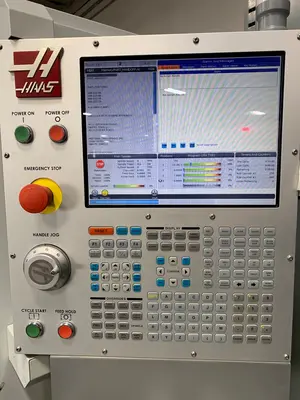

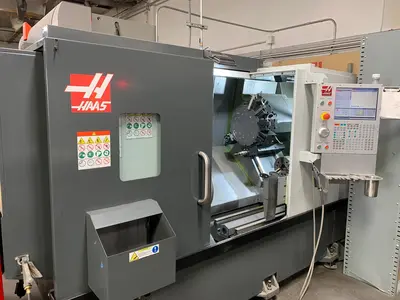

HAAS NEXTGEN CONTROL
Y-AXIS
LIVE MILLING (6,000 RPM UPGRADE)
SUB SPINDLE

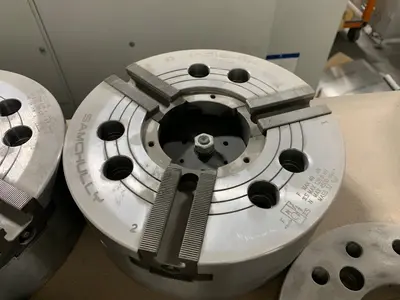

10”, 3-JAW SAMCHULLY (MH-210VI) HYDRAULIC CHUCK (MAIN)

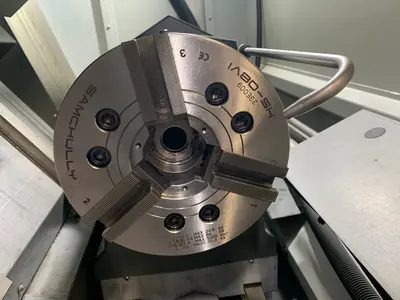

8”, 3-JAW SAMCHULLY (HS-08VI) HYDRAULIC CHUCK (SUB)

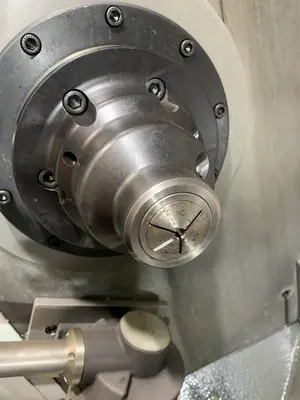

ROYAL COLLET CHUCK (MAIN)
3” BAR CAPACITY (MAIN)

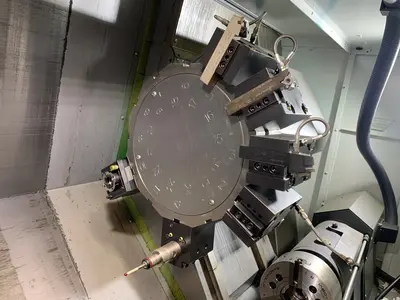

24-STATION BMT65 TURRET
WIRELESS INTUITIVE PROBING FOR LATHES
TOOL PRESETTER

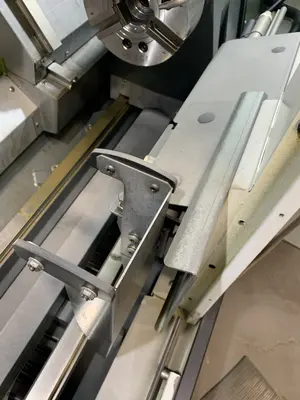

PARTS CATCHER
CHIP CONVEYOR

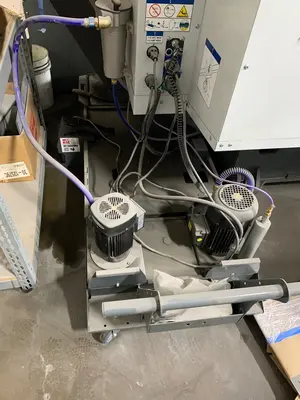

HIGH-PRESSURE COOLANT
CHUCK AIR BLAST (MAIN)
SUB SPINDLE AIR BLAST
COOLANT TANK OIL SKIMMER
CHIP TRAY FILTER KIT

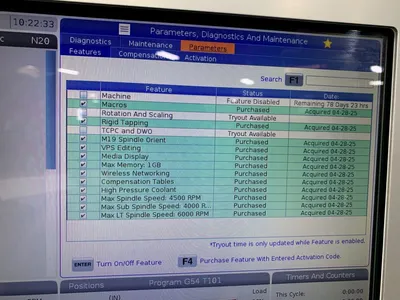

VISIAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIRELESS NETWORKING
(3) AXIAL LIVE TOOL HOLDERS
(2) RADIAL LIVE TOOL HOLDERS

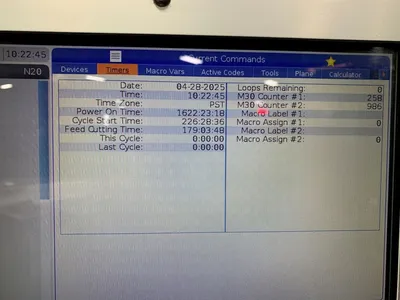

** AS OF SEPTEMBER 2025, CUTTING TIME – 179 HOURS
** MACHINE IS LIKE-NEW
** FULL REPLACEMENT COST, AS EQUIPPED - $235,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
