2008 FADAL VMC-4020 FXMP-HT, 10000 RPM

2008 FADAL VMC-4020 FXMP-HT, 10000 RPM

Sell Your FADAL VMC-4020 FXMP-HT
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your FADAL VMC-4020 FXMP-HT

Overview

Type:
Vertical Machining Centers
Manufacturer:
FADAL
Model:
VMC-4020 FXMP-HT
Condition:
Very Good
Year:
2008
Stock #:
499824
Status:
For Sale

Description

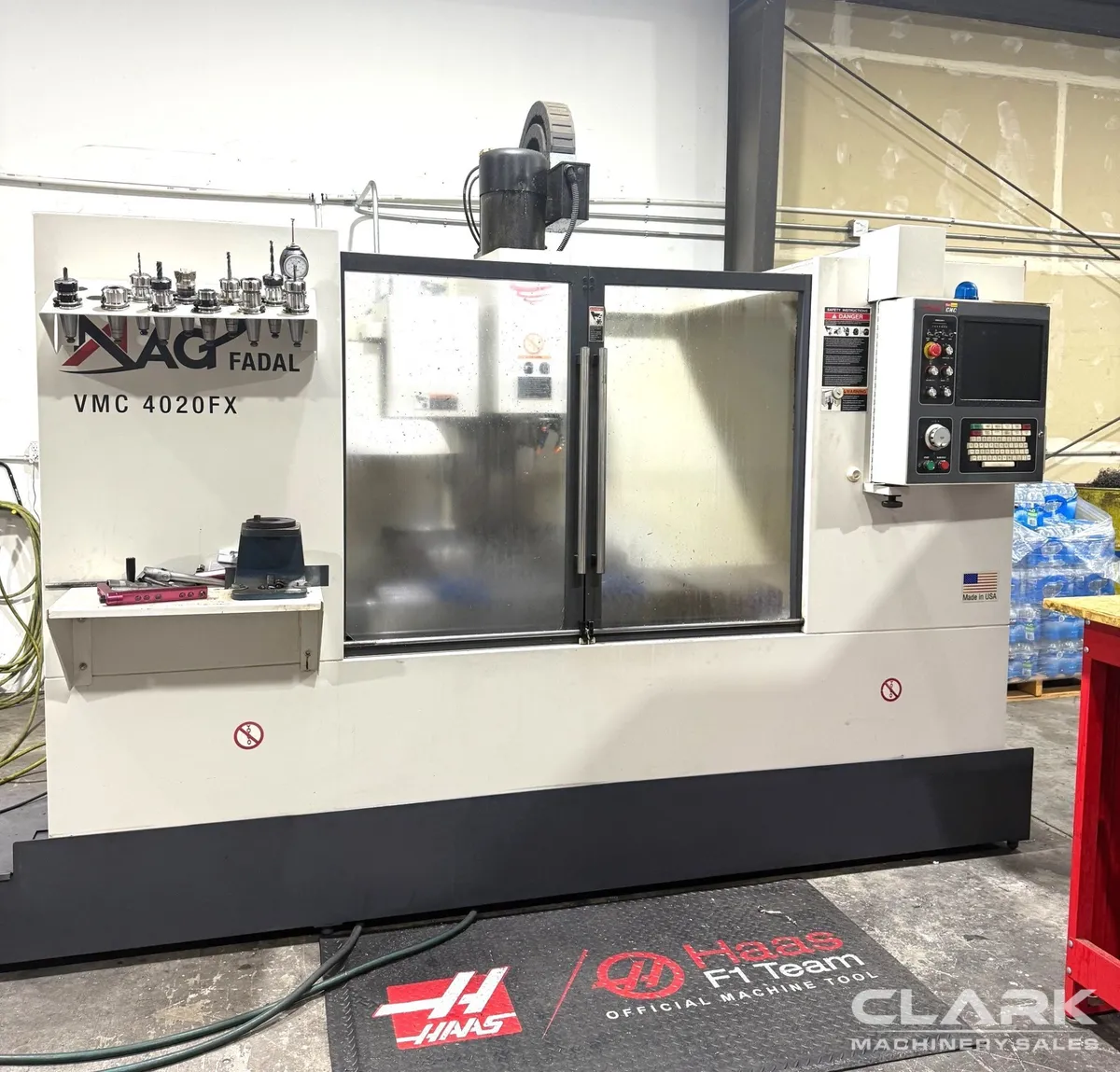

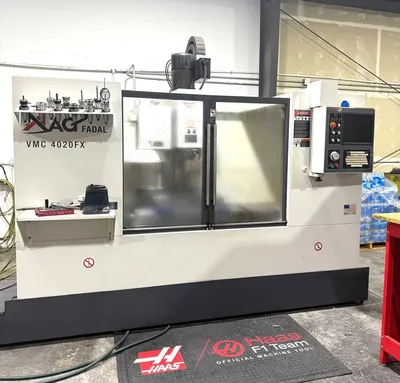

10,000 RPM, CAT 40. This high torque 2008 Fadal VMC-4020 FXMP-HT CNC vertical machining center is in plant, under power, and ready for immediate inspection and purchase.

TABLE LENGTH48"1,219.2 mm
TABLE WIDTH20"508 mm
TABLE CAPACITY3,600 lb1,632.9 kg
X-AXIS TRAVEL40"1,016 mm
Y-AXIS TRAVEL20"508 mm
Z-AXIS TRAVEL20"508 mm
SPINDLE SPEED10,000 RPM10,000 RPM
SPINDLE MOTOR15 hp11.2 kW
SPINDLE TAPERCAT 40CAT 40
TOOL CAPACITY (ATC)2121
RAPID TRAVERSE - X AXIS1,000 in/min.25.4 m/min.
RAPID TRAVERSE - Y AXIS1,000 in/min.25.4 m/min.
RAPID TRAVERSE - Z-AXIS900 in/min.22.9 m/min.
Dimensions132″L x 100″W x 108″H132″L x 100″W x 108″H
Weight13,000 lbs13,000 lbs

FADAL CNC MULTIPROCESSOR CONTROL
HIGH TORQUE

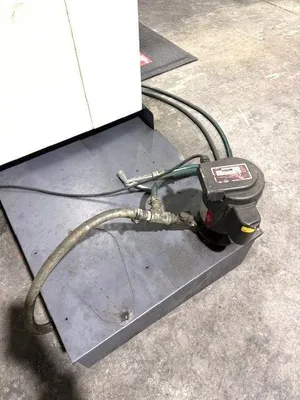

COOLANT SYSTEM
RIGID TAPPING
208V
PULL STUDS INCLUDED

** ORIGINAL OWNER

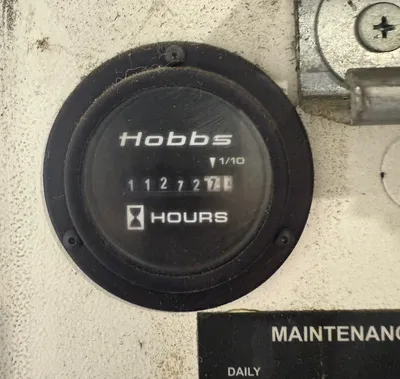

** AS OF OCTOBER, 2025 - POWER-ON TIME: 11,300 HOURS

** TOOL HOLDERS & VISES AS PICTURED AVAILALBE AT ADDITIONAL COST
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
