2013 VIPER VT-50B/3000 - 12" BORE

2013 VIPER VT-50B/3000 - 12" BORE

Sell Your VIPER VT-50B/3000
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your VIPER VT-50B/3000

Overview

Type:
CNC Lathes 2-Axis
Manufacturer:
VIPER
Model:
VT-50B/3000
Year:
2013
Stock #:
499828
Status:
For Sale

Description

2013 VIPER VT-50B/3000 CNC Lathe, used, 2-axis with a 12.25" spindle bore, 50 hp motor, and 600 RPM speed. Max swing of 39.37", cutting length of 116.2". Features include FANUC 32i control, 24" chucks, programmable tailstock, and chip conveyor.

MAX SWING39.37"1,000 mm
MAX CUTTING DIAMETER33.85"859.79 mm
MAX CUTTING LENGTH116.2"2,951.5 mm
X-AXIS TRAVEL16.93"430.02 mm
Z-AXIS TRAVEL114.1"2,898.1 mm
CHUCK SIZE24"609.6 mm
SPINDLE BORE12.25"311.15 mm
SPINDLE NOSEA2-20A2-20
SPINDLE MOTOR50 hp37.3 kW
SPINDLE SPEED600 RPM600 RPM

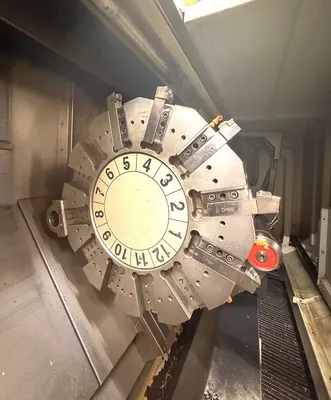

TURRET POSITIONS1212

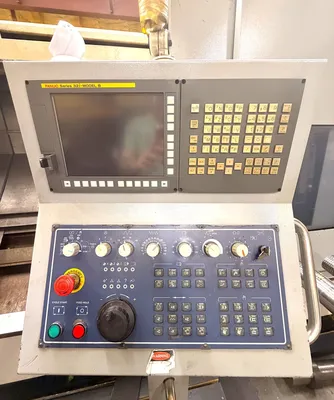

FANUC SERIES 32i-MODEL B CNC

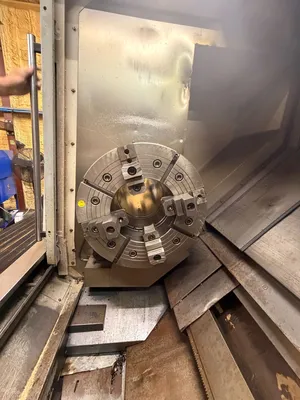

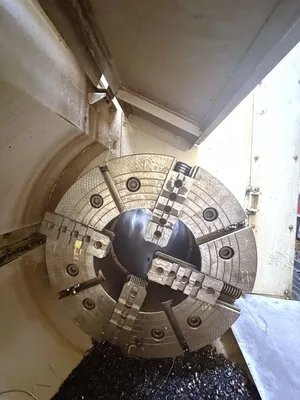

FRONT CHUCK: 24" 4-JAW MANUAL
BACK CHUCK: 24" 4-JAW MANUAL
PROGRAMMABLE TAILSTOCK
* TAILSTOCK CENTER: MT-6
* TAILSTOCK CENTER STROKE: 5.9"

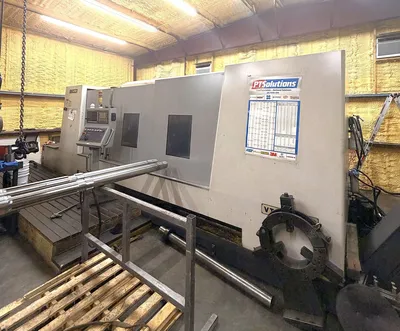

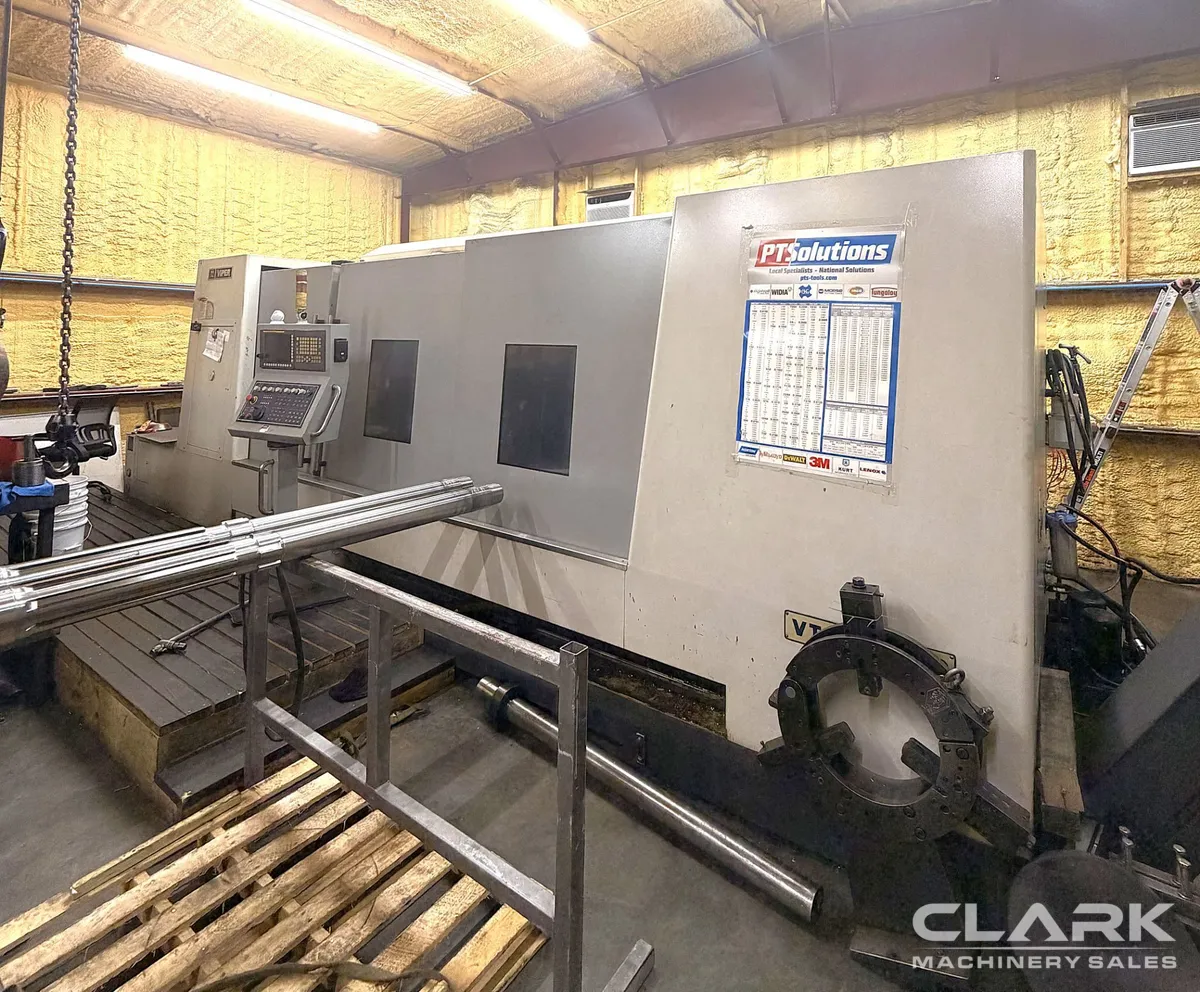

"RIP" STEADY REST (AS PICTURED IN FRONT OF MACHINE)

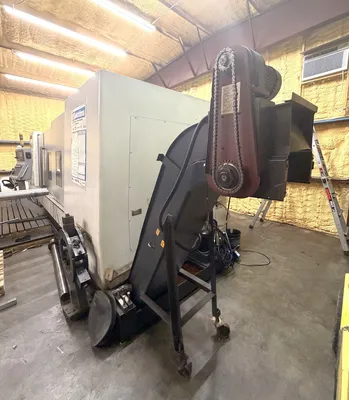

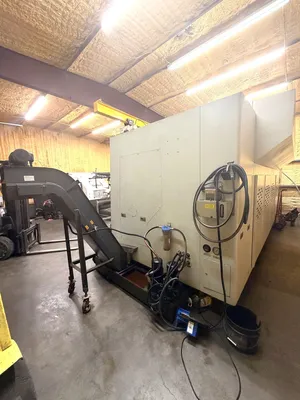

CHIP CONVEYOR

** MACHINE HAS RUN LESS THAN 1/2 SHIFT SINCE INSTALLATION:

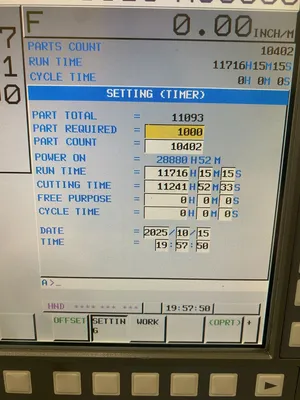

**** 11,241 CUTTING TIME ON LATHE (AS SEEN IN PICTURES)

MACHINE IS IN PLANT, UNDER POWER AND AVAILABLE IMMEDIATELY
