2019 HAAS TR-310
ConditionUsed
1 available

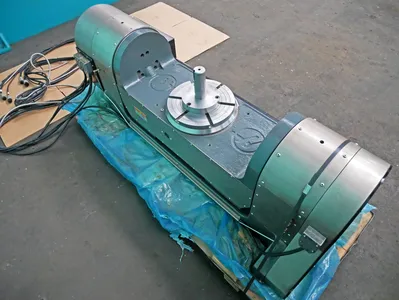

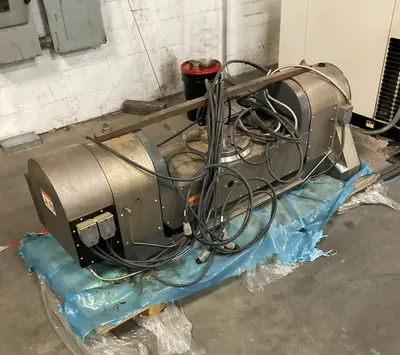

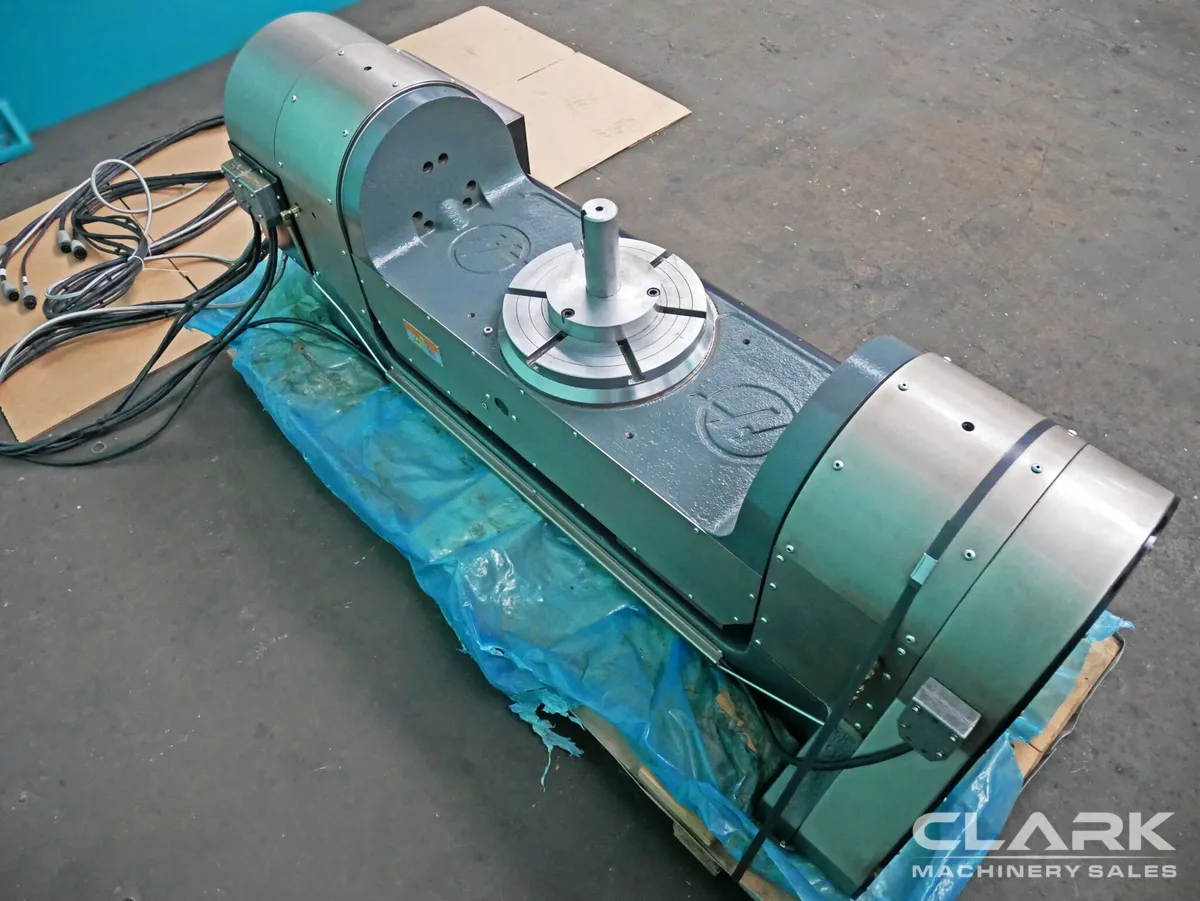

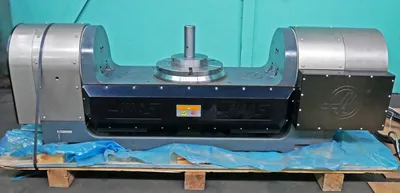

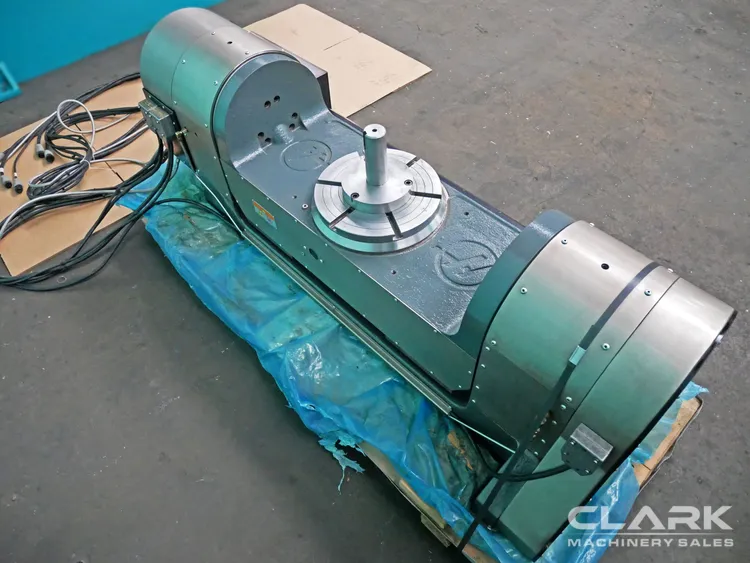

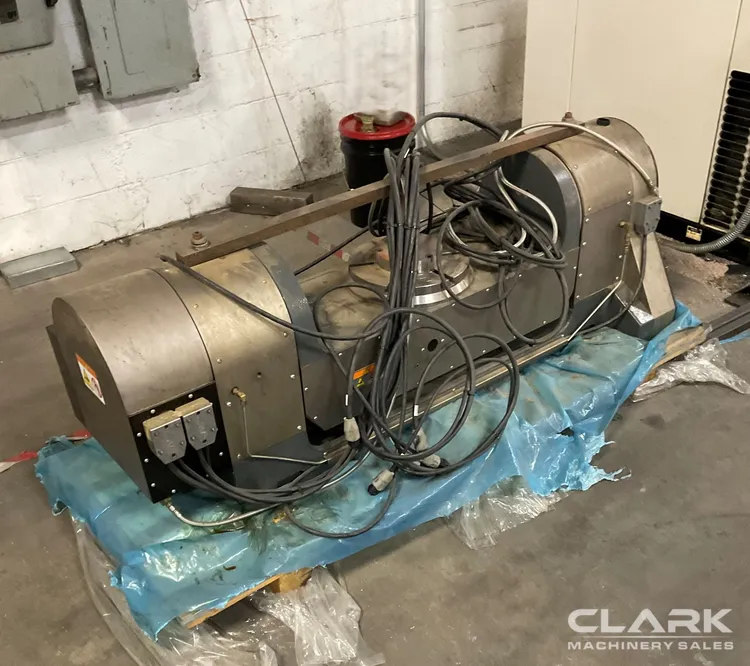

This 2019 Haas TR-310 has a 310 mm (12.2") tilting face plate, and is a 2-axis Trunnion Rotary Table with scale feedback on the A (tilting) axis. Unit is a version P4 and is ideally suited to be used on a NextGen Haas vertical machining center.
VERSION P4
NOTE: THIS HAAS TR-310 TRUNNION TABLE WAS PURCHASED AND USED VERY LITTLE
COMPARE TO REPLACEMENT COST FOR ABOVE TRUNNION, IF PURCHASED NEW TODAY: $63,395
*** MACHINE IS AVAILABLE FOR IMMEDIATE DELIVER
This 2019 Haas TR-310 has a 310 mm (12.2") tilting face plate, and is a 2-axis Trunnion Rotary Table with scale feedback on the A (tilting) axis. Unit is a version P4 and is ideally suited to be used on a NextGen Haas vertical machining center.
Imperial
| TABLE WIDTH | 12.2" |
| TABLE LENGTH | 12.2" |
| MAX WEIGHT ON PLATTER | 500 lb |
| PART SWING MAX | 31" |
| A-AXIS TILT INDEXING | +/- 120 DEGREES |
| A-AXIS TILT SPEED | 50 DEGREES SEC |
| B-AXIS INDEXING (ROTARY) | 999.999 DEG |
| B-AXIS ROTARY SPEED | 50 DEG PER SEC |
| Weight | 2105 LBS |
VERSION P4
NOTE: THIS HAAS TR-310 TRUNNION TABLE WAS PURCHASED AND USED VERY LITTLE
COMPARE TO REPLACEMENT COST FOR ABOVE TRUNNION, IF PURCHASED NEW TODAY: $63,395
*** MACHINE IS AVAILABLE FOR IMMEDIATE DELIVER
