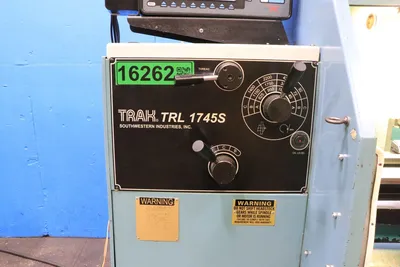

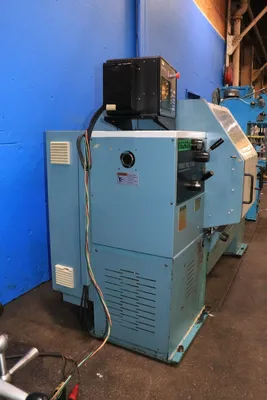

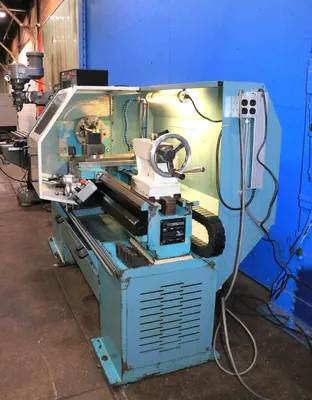

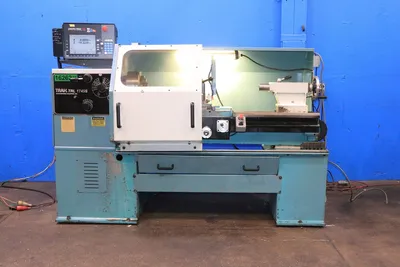

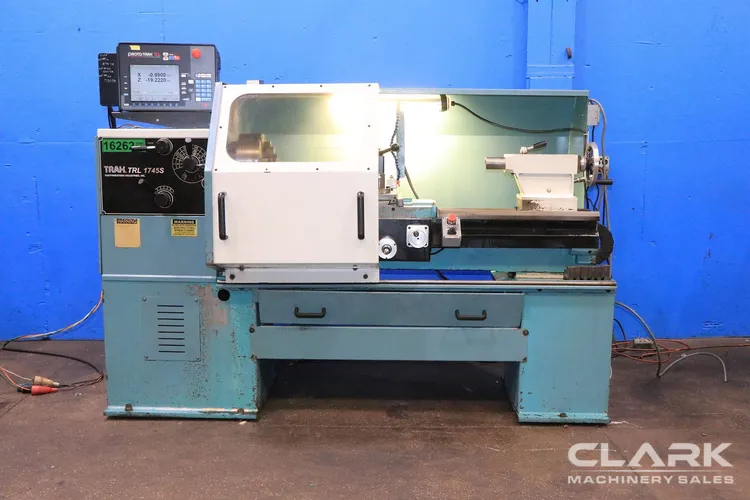

2004 SOUTHWESTERN INDUSTRIES PROTOTRAK TRL 1745P
ConditionUsed
1 available

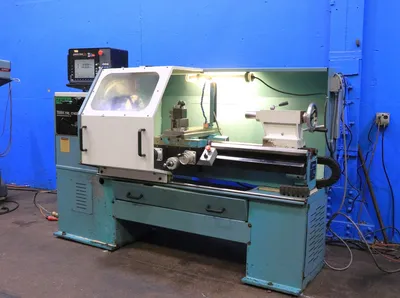

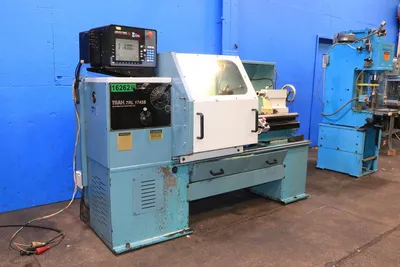

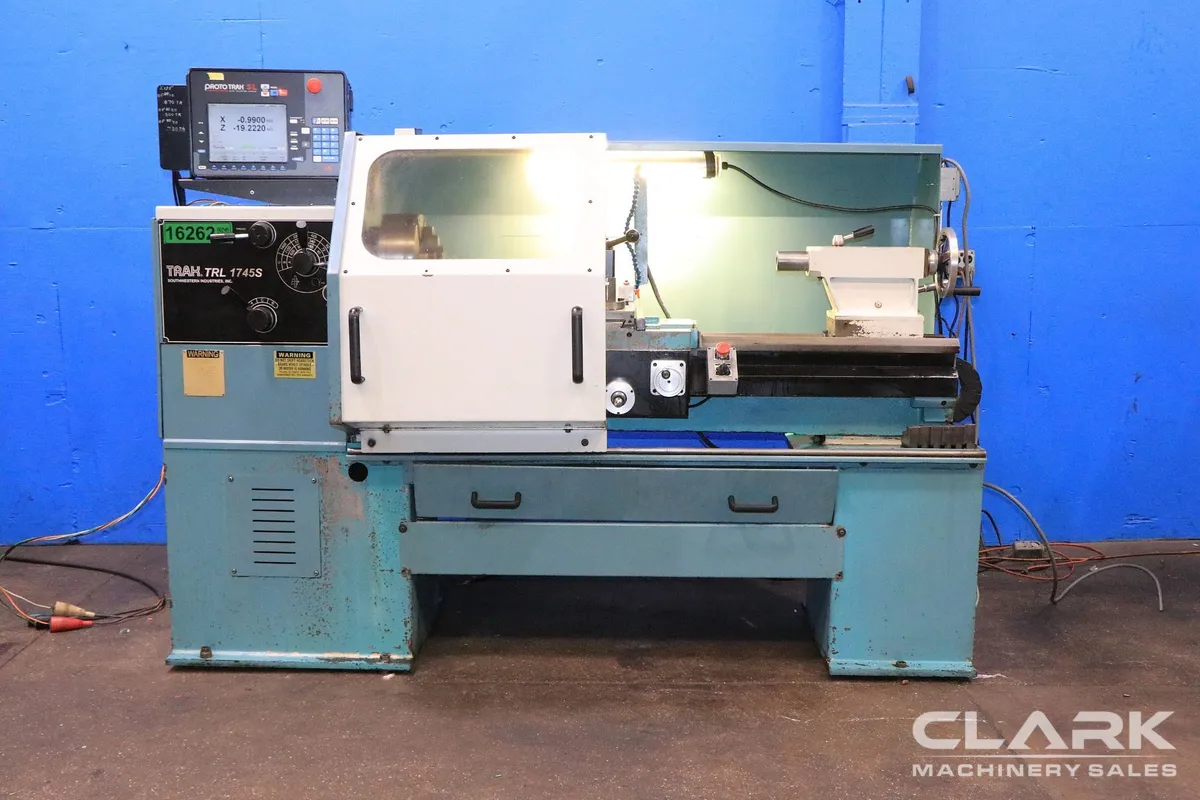

2004 Southwestern Industries Prototrak TRL 1745P CNC Lathe, 2-axis with Prototrak CNC Control. Equipped with Aloris quick change toolpost, 3-jaw scroll chuck, 5C collet closer, and coolant system. Max swing 17.687", cutting length 45", spindle 2,200 RPM.

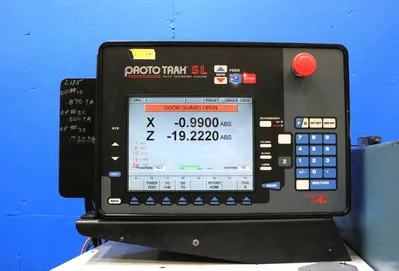

PROTO TRAK CNC CONTROL MODEL SL W/CONVERSATIONAL & GRAPHICS

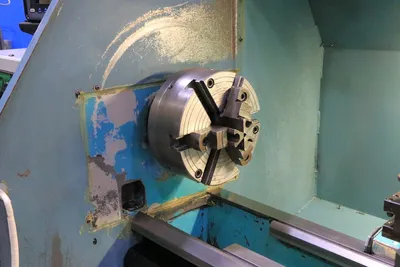

6-JAW CHUCK

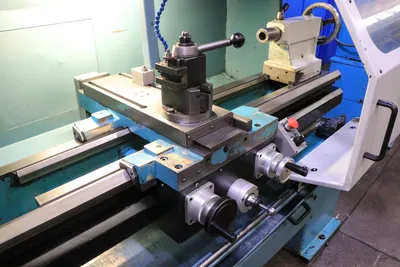

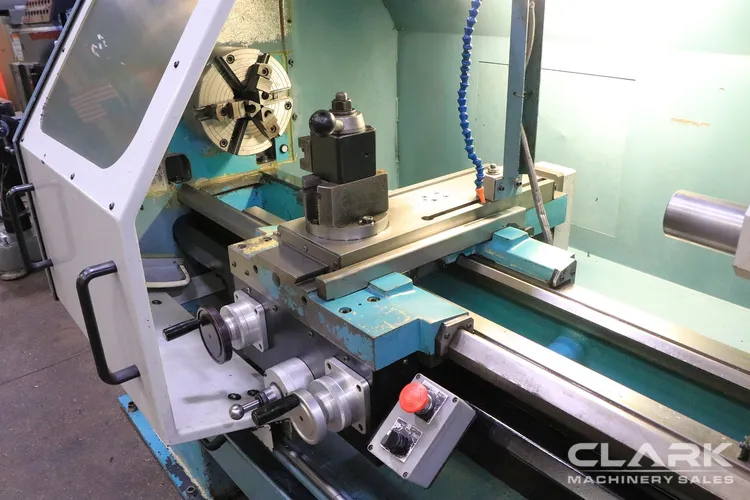

ALORIS QUICK CHANGE TOOLPOST
LEVER TYPE 5C COLLET CLOSER & NOSE PIECE
PRECISION GROUND BALLSCREWS IN THE SADDLE & CROSS SLIDE
HARDENED AND GROUND BED
SCROLL CHUCK WITH 3-JAWS
COOLANT SYSTEM AND REMOVAL CHIP PAN
* TURNS PARTS MANUALLY OR AUTOMATICALLY
*** AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
2004 Southwestern Industries Prototrak TRL 1745P CNC Lathe, 2-axis with Prototrak CNC Control. Equipped with Aloris quick change toolpost, 3-jaw scroll chuck, 5C collet closer, and coolant system. Max swing 17.687", cutting length 45", spindle 2,200 RPM.
Imperial
| MAX SWING | 17.687" |
| SWING OVER CROSS SLIDE | 10.46" |
| MAX CUTTING LENGTH | 45" |
| DISTANCE BETWEEN CENTERS | 45" |
| X-AXIS TRAVEL | 9" |
| SPINDLE BORE | 2" |
| SPINDLE NOSE | D1-6 |
| SPINDLE MOTOR | 7.5 hp |
| SPINDLE SPEED | 2,200 RPM |
| Dimensions | 87" X 36" X 57" |
| Weight | 3500 LBS |
PROTO TRAK CNC CONTROL MODEL SL W/CONVERSATIONAL & GRAPHICS
6-JAW CHUCK
ALORIS QUICK CHANGE TOOLPOST
LEVER TYPE 5C COLLET CLOSER & NOSE PIECE
PRECISION GROUND BALLSCREWS IN THE SADDLE & CROSS SLIDE
HARDENED AND GROUND BED
SCROLL CHUCK WITH 3-JAWS
COOLANT SYSTEM AND REMOVAL CHIP PAN
* TURNS PARTS MANUALLY OR AUTOMATICALLY
*** AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
