2019 TSUGAMI BW129Z-I, 11-AXIS, 1,400 HOURS
ConditionUsed
1 available

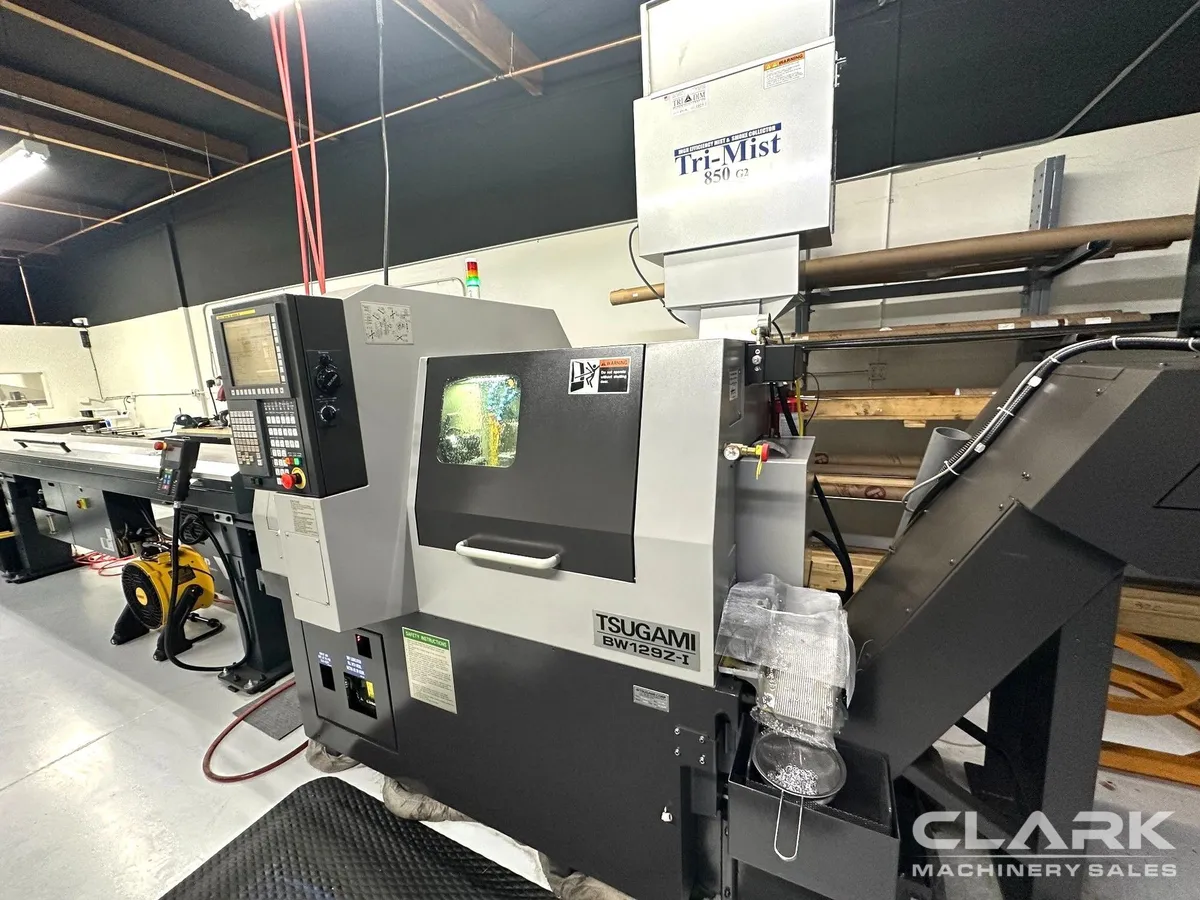

1,400 Cutting Hours, 0.47" (12mm), 11 Controlled Axes, 12,000 RPM (Main & Sub), Fanuc 31-iB, LNS Barfeed. This chucker convertible 2019 Tsugami BW129Z automatic screw machine is a 9-axis independent gang tool Swiss CNC lathe with the ability to use 3 tools in the cut; two on the main and one on the sub. Equipped with parts catcher, parts conveyor, chip conveyor, high pressure coolant system, and fire suppression system.
FANUC 31i-B CNC CONTROL
CHUCKER CONVERTIBLE

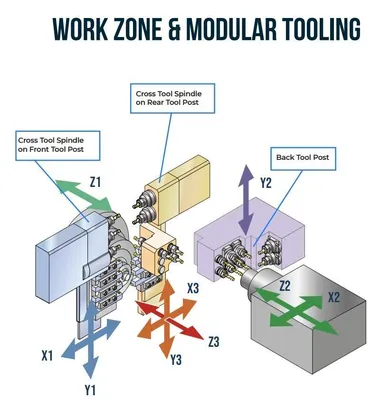

NUMBER OF CONTROLLED AXES: 11 (X1, Y1, Z1, X2, Y2, Z2, X3, Y3, Z3, C1, C2)
LINEAR AXES: 9 (X1, Y1, Z1, X2, Y2, Z2, X3, Y3, Z3)
ROTARY AXES: 2 (C1 & C2)
3-PATH CONTROL SYSTEM

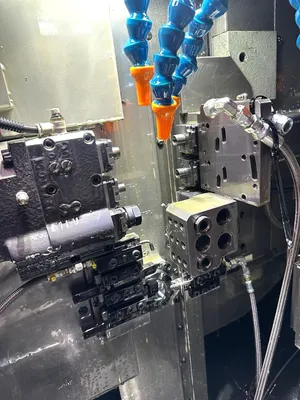

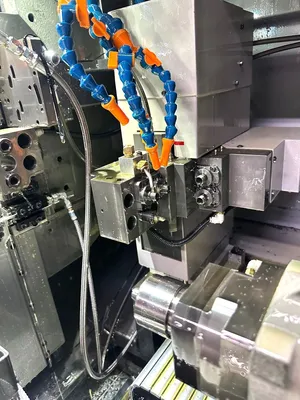

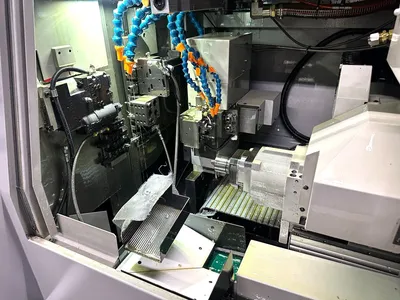

DUAL INDEPENDENT GANG SLIDES
8 BACKWORKING TOOLS

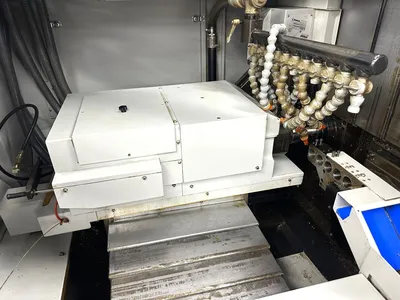

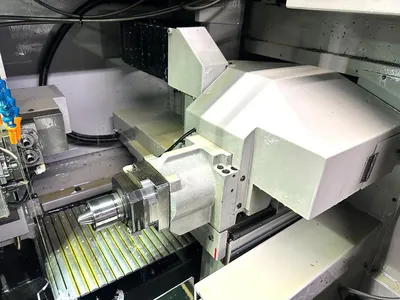

4 LIVE TOOL POSITION ON SUB SPINDLE

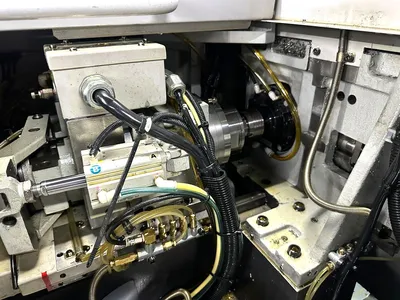

DIRECT DRIVE ROTARY GUIDE BUSHING

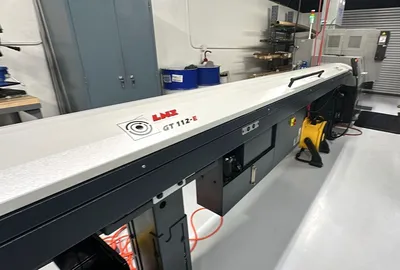

LNS GT 112-E MAGAZINE BARFEED

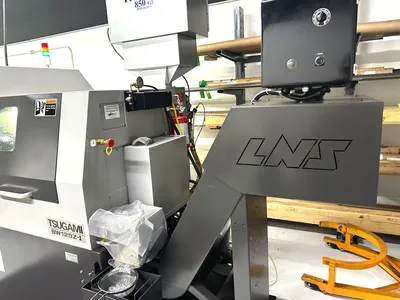

LNS CHIP CONVEYOR

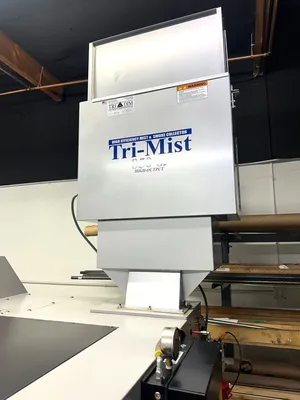

TRI-MIST MIST COLLECTOR 850 G2 MIST COLLECTOR

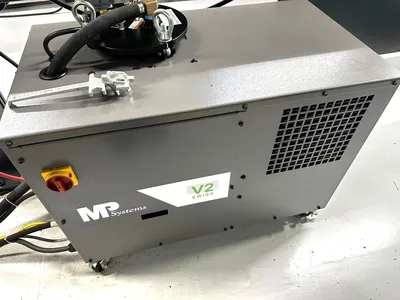

MP SYSTEMS V2 SWISS HIGH PRESSURE COOLANT SYSTEM
FIRE SUPPRESSION
PARTS CATCHER AND CONVEYOR
ALL AVAILABLE TOOLING AND MANUALS
ROTARY GUIDE BUSHING SPEEDS:
-CARRIER ROTARY GUIDE BUSHING: 8,000 RPM
-DIRECT DRIVE GUIDE BUSHING: 12,000 RPM
INCLUDED TOOLING:

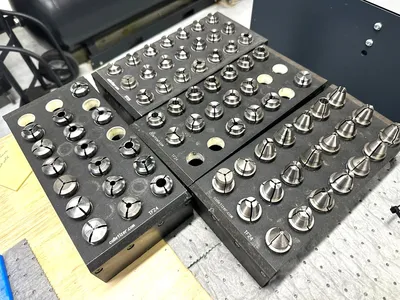

(74) T24 COLLETS

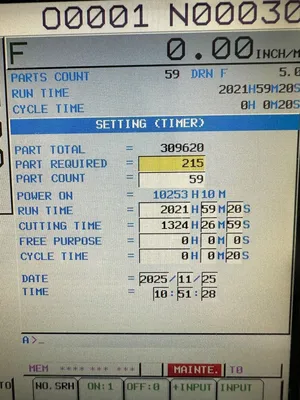

** AS OF DECEMBER, 2025 - CUTTING TIME HOURS:
POWER ON: 10,253
RUN TIME: 2,021
CUTTING: 1,324
** ORIGINAL OWNER
** MACHINE RUNNING OIL
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
