2015 HAAS DT-1, 15K, KOMA TRUNNION
Sold

2015 HAAS DT-1, 15K, KOMA TRUNNION

Sell Your HAAS DT-1
Vertical Machining Centers
Manufacturer:
HAAS
Model:
DT-1
Year:
2015
Stock #:
499944

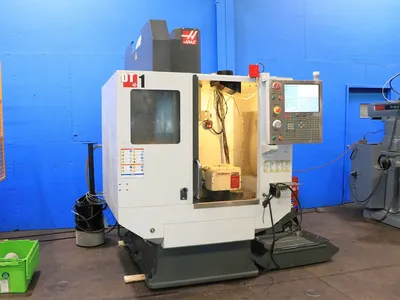

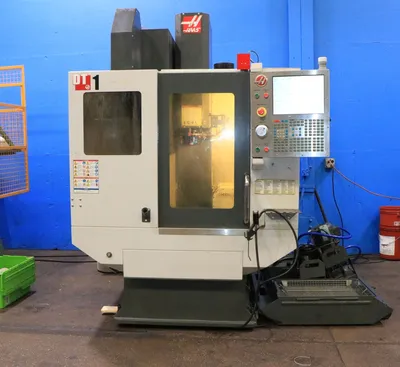

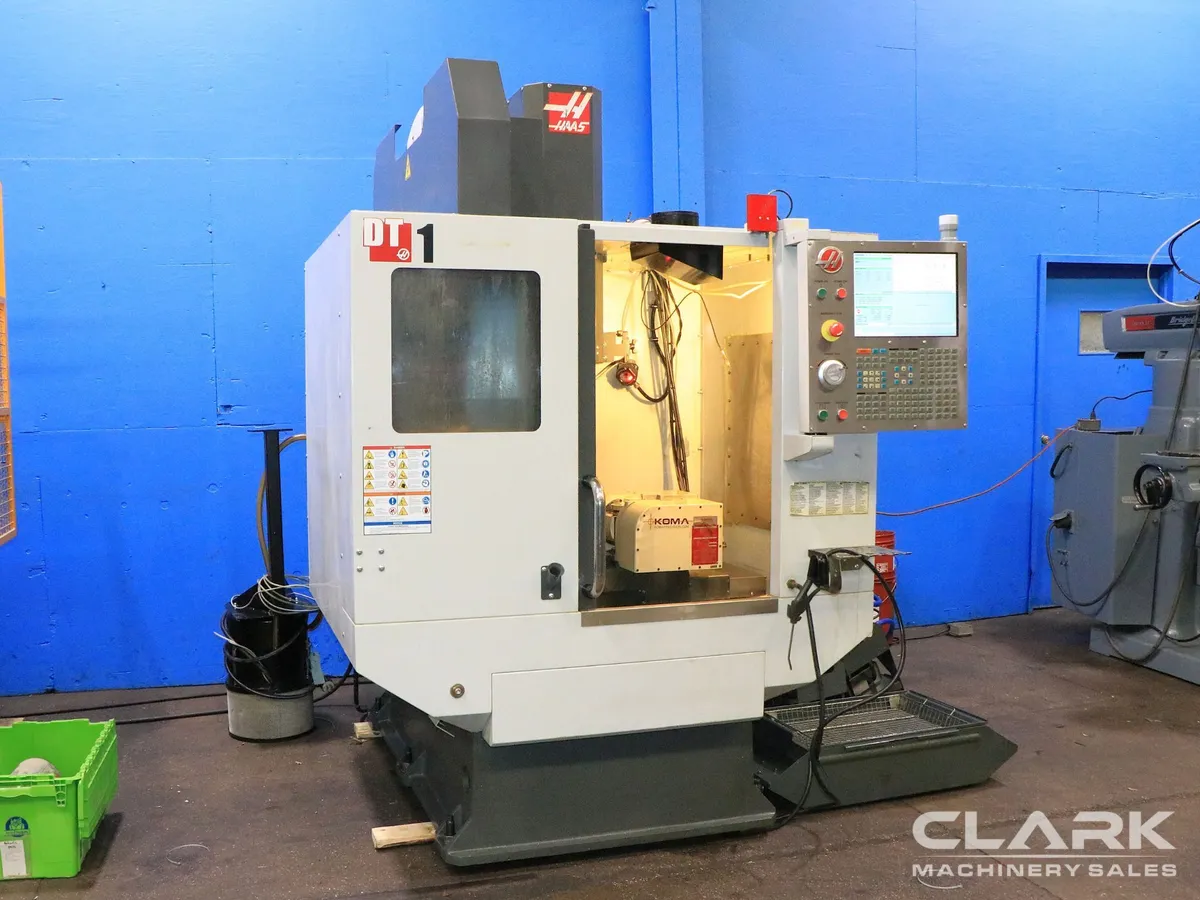

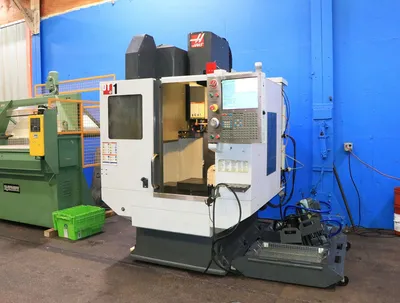

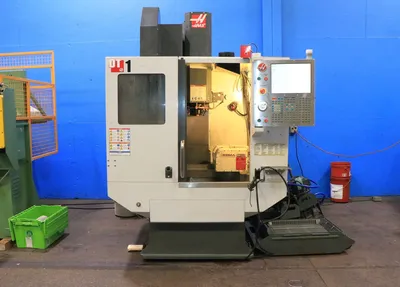

2015 Haas DT-1 Vertical Machining Center. Features: Komo trunnion table, 20" x-axis, 16" y-axis, 15.5" z-axis, 15,000 RPM, BT30 taper, 15 hp motor. Includes coolant system, through spindle coolant, dual chip augers, and more.
TABLE LENGTH26"660.4 mm
TABLE WIDTH15"381 mm
TABLE CAPACITY250 lb113.4 kg
X-AXIS TRAVEL20"508 mm
Y-AXIS TRAVEL16"406.4 mm
Z-AXIS TRAVEL15.5"393.7 mm
SPINDLE SPEED15,000 RPM15,000 RPM
SPINDLE MOTOR15 hp11.2 kW
SPINDLE TAPERBT 30BT 30
TOOL CAPACITY (ATC)2020
RAPID TRAVERSE - X AXIS2,400 in/min.61 m/min.
RAPID TRAVERSE - Z-AXIS2,400 in/min.61 m/min.
CUTTING FEEDRATE1200 ipm
ROTARY OR TRUNNIONYesYes
APPROX MACHINE DIMENSIONS68"W x 124"L W/COOLANT TANK X 103" H68"W x 124"L W/COOLANT TANK X 103" H

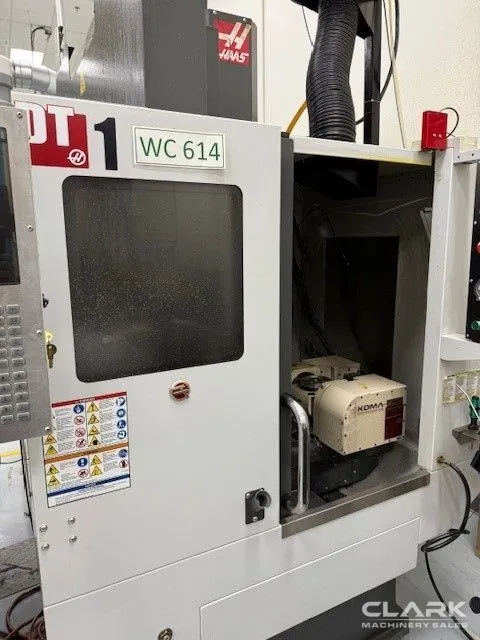

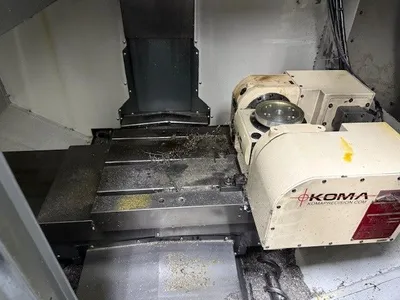

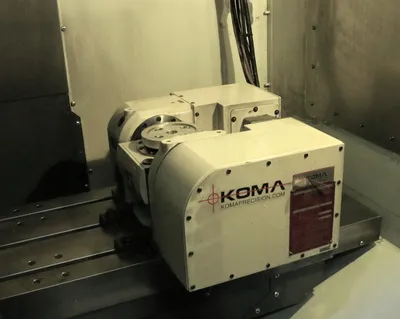

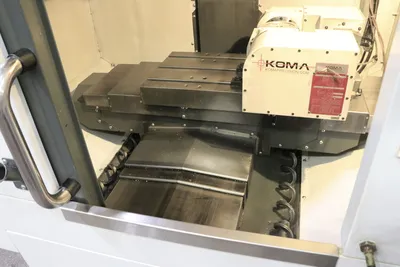

KOMA TN101 TRUNNION TABLE

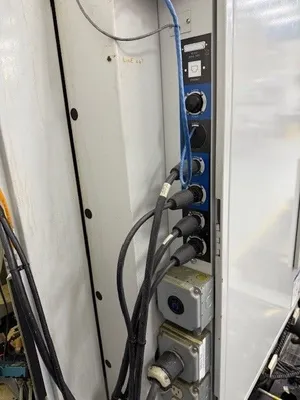

HAAS 4TH AND 5TH AXIS DRIVE CARDS

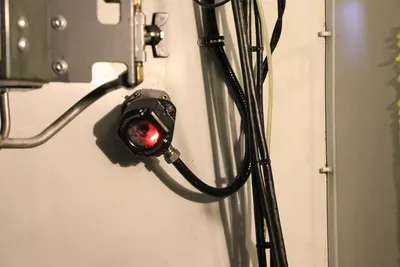

RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
** PROBE TOOL AND TOUCH SETTER REQUIRED (NOT INCLUDED)
SIDE-MOUNT TOOL CHANGER, 20 POSITION

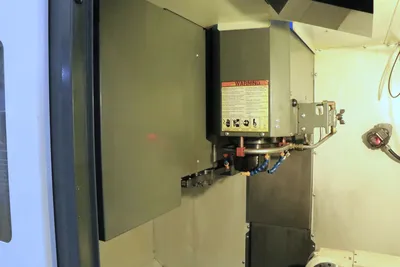

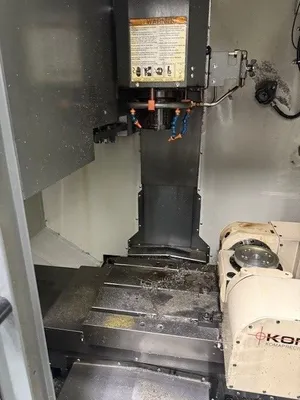

15,000 RPM SPINDLE
THROUGH SPINDLE COOLANT
USB PORT

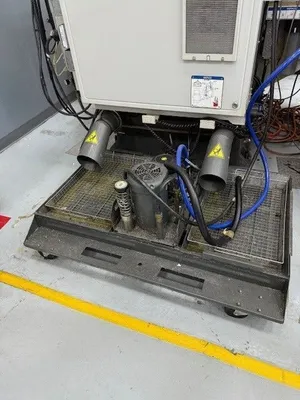

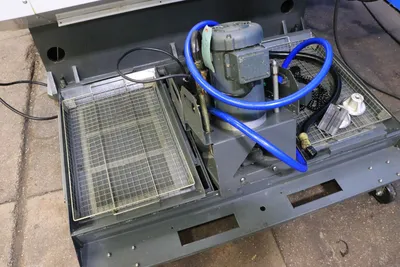

COOLANT SYSTEM

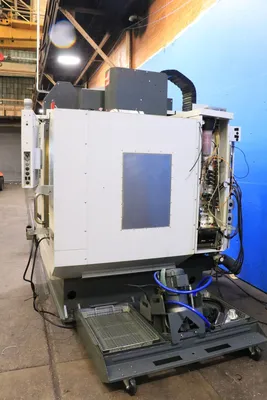

CHIP AUGERS, DUAL SYSTEM FOR REAR EXIT
ROTATION & SCALING, M-19 SPINDLE ORIENT.
INTUITIVE PROGRAMMING SYSTEM (IPS), QUICK CODE, DNC, ADVANCED TOOL MANAGEMENT
RIGID TAPPING
MACROS

** AVAILABLE FOR IMMEDIATE PURCHASE & REMOVAL

REPLACEMENT COSTS FOR ABOVE EQUIPPED MACHINE IF PURCHASED NEW TODAY: $160,000

AVAILABLE FROM SAME SHOP:
* ADDITIONAL DT-1 WITH TRUNNION ROTARY TABLE
* (2) DUAL PALLET DT-1, 2-ROTARY TABLE MACHINE
