| SWING OVER BED | 33.46" | 849.88 mm |
| SWING OVER CROSS SLIDE | 26.38" | 670.05 mm |
| MAX CUTTING DIAMETER | 16.54" | 420.12 mm |
| MAX CUTTING LENGTH | 50.39" | 1,279.9 mm |
| X-AXIS TRAVEL | 11.53" | 292.86 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 5.12 | 5.12 |
| Z-AXIS TRAVEL | 53.15" | 1,350 mm |
| C-AXIS INDEXING | 0.001 | 0.001 |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 4.02" | 102.11 mm |
| SPINDLE BORE | 4.52" | 114.81 mm |
| SPINDLE NOSE | A2-11 | A2-11 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 2,800 RPM | 2,800 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 1,181 in/min. | 30 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,181 in/min. | 30 m/min. |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| LIVE MILLING MOTOR | 10 hp | 7.5 kW |
| Dimensions | 220" X 83" X 92"H W/CONVEYOR | 220" X 83" X 92"H W/CONVEYOR |
| Weight | 17,640 | 17,640 |

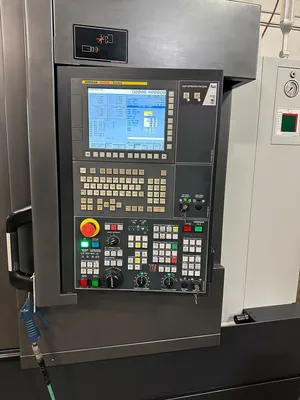

FANUC Oi-T SERIES CNC CONTROL

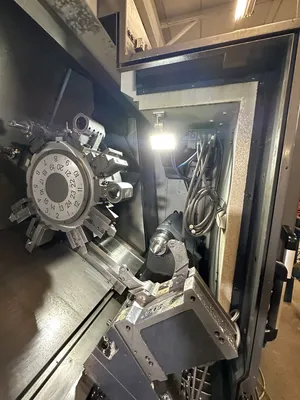

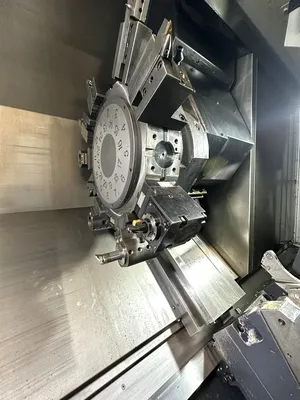

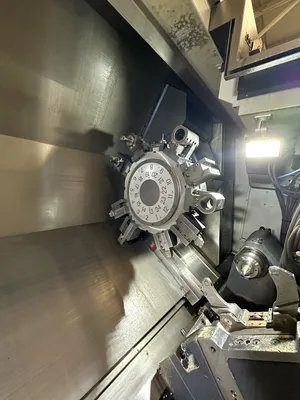

12 STATION BMT TURRET WITH 24 INDEXIBLE POSITIONS
ROHM SELF-CENTERING HYDRAULIC STEADY REST (2.5" - 7.9" CAPACITY)
12" SAMCHULLY 3-JAW HYDRAULIC CHUCK
HYDRAULIC TAILSTOCK

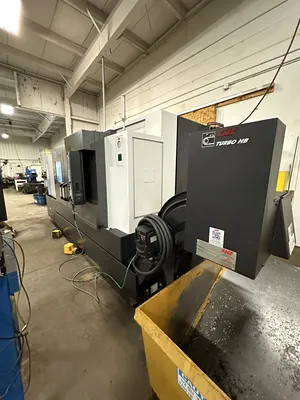

LNS TURBO HB SIDE DISCHARGE CHIP CONVEYOR
(2) STRAIGHT LIVE HOLDERS, (1) RIGHT ANGLE LIVE HOLDER
MISC. TOOL HOLDERS

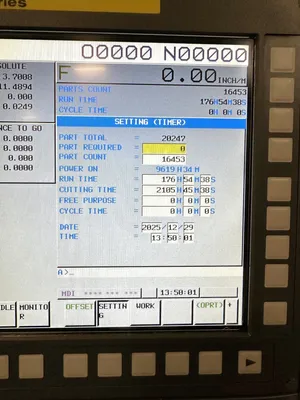

HOURS OF USE (AS OF 1/5/2026):
* POWER ON: 9,619 HOURS
CUTTING TIME: 2,105 HOURS
*** MACHINE IS IN PLANT, UNDER POWER. AVAILABLE FOR IMMEDIATE PURCHASE

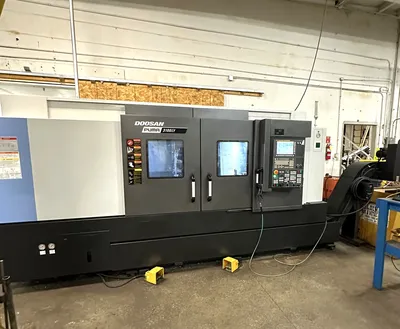

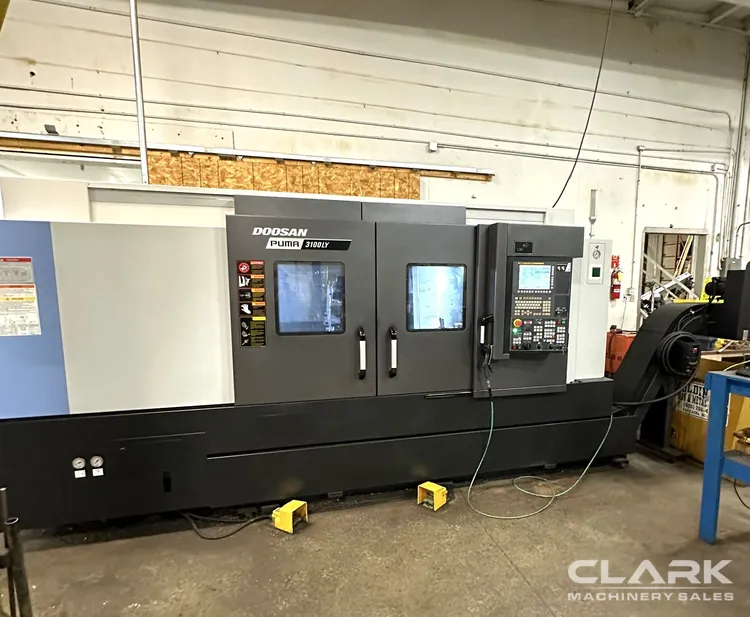

PUMA 3100LY SERIES TURNING CENTERS ARE DESIGNED FOR LONG-TERM HIGH ACCURACY AND SUPERIOR SURFACE FINISHES. HIGH SPEED TURRET INDEXING AND ULTRA-FAST RAPID TRAVERSE RATES MINIMIZE NON-CUTTING TIME. MILL-DRILL CAPABILITY WITH Y-AXIS REDUCES THE NEED FOR SECONDARY MACHINING ON OTHER MACHINES, HELPING TO ELIMINATE ADDITIONAL MACHINE SET-UPS AND HANDLING COSTS.
