| PLATTER DIAMETER | 19.7" | 500.38 mm |
| X-AXIS TRAVEL | 30" | 762 mm |
| Y-AXIS TRAVEL | 20" | 508 mm |
| Z-AXIS TRAVEL | 20" | 508 mm |
| B-AXIS (TILT) TRAVEL | +110 DEGREES / -35 DEGREES | +110 DEGREES / -35 DEGREES |
| C-AXIS (ROTATION) TRAVEL | 360 DEGREES | 360 DEGREES |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 40 | 40 |
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH-SPINDLE COOLANT (300 PSI)
SIDE-MOUNT TOOL CHANGER (40 ATC)
12,000 RPM SPINDLE
CHIP CONVEYOR
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
COORDINATE ROTATION & SCALING
SECOND HOME POSITION
HIGH-SPEED MACHINING
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT

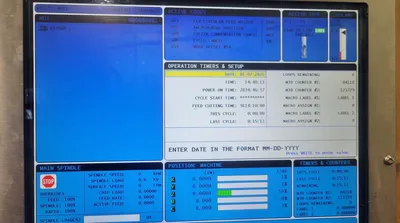

** AS OF JANUARY 2026, FEED CUTTING TIME – 9,114 HOURS
** MACHINE CUT PRIMARILY ALUMINUM
** FULL REPLACEMENT COST, AS EQUIPPED - $230,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
