| TABLE LENGTH | 49.2" | 1,249.7 mm |
| TABLE WIDTH | 22" | 558.8 mm |
| TABLE CAPACITY | 2,200 lb | 997.9 kg |
| X-AXIS TRAVEL | 43.3" | 1,099.8 mm |
| Y-AXIS TRAVEL | 22" | 558.8 mm |
| Z-AXIS TRAVEL | 20.5" | 520.7 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 40 | 40 |
| RAPID TRAVERSE - X AXIS | 1,575 in/min. | 40 m/min. |
| RAPID TRAVERSE - Y AXIS | 1,575 in/min. | 40 m/min. |
| RAPID TRAVERSE - Z-AXIS | 1,417 in/min. | 36 m/min. |

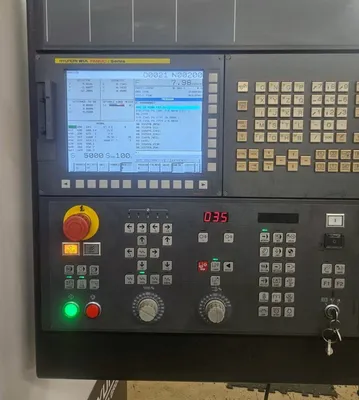

FANUC 0i-MF CONTROL
THROUGH-SPINDLE COOLANT (290 PSI)

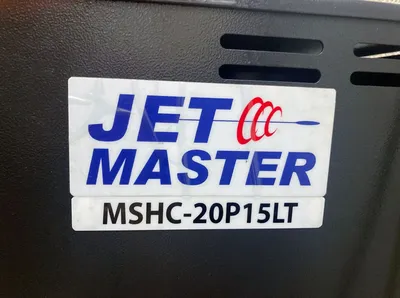

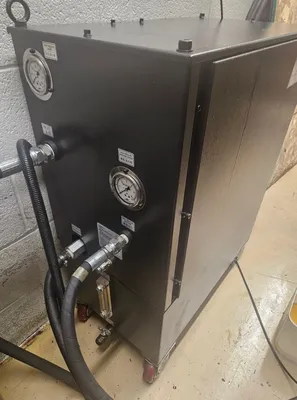

JET MASTER HIGH-PRESSURE COOLANT UNIT

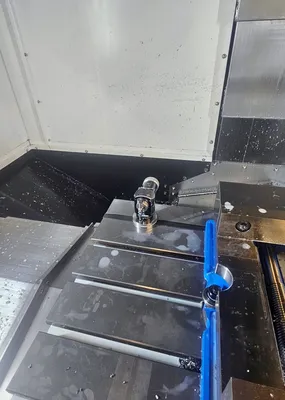

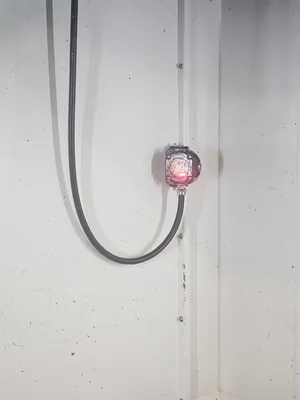

RENISHAW PROBING SYSTEM
12,000 RPM SPINDLE
40 TOOL POSITIONS

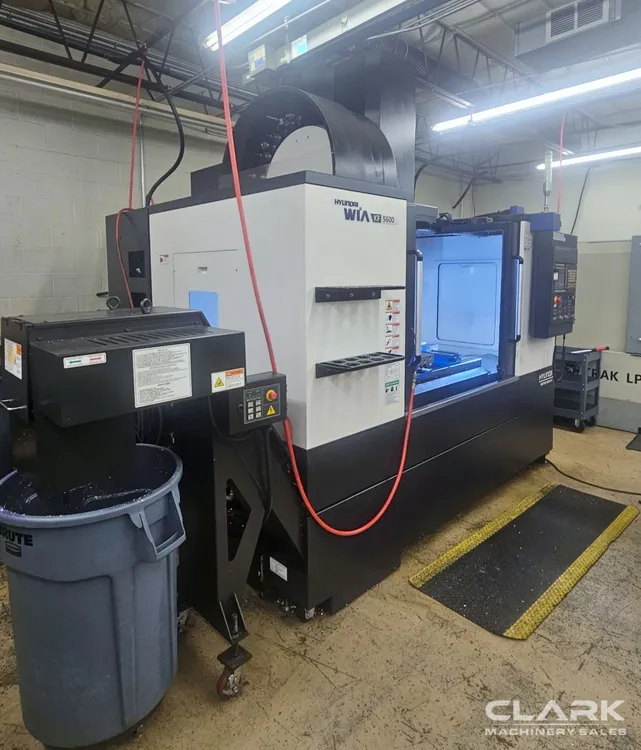

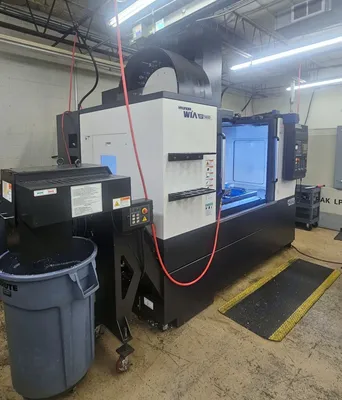

CHIP CONVEYOR
SPINDLE CHILLER
AICC II (200 BLOCK LOOK-AHEAD)
RIGID TAPPING

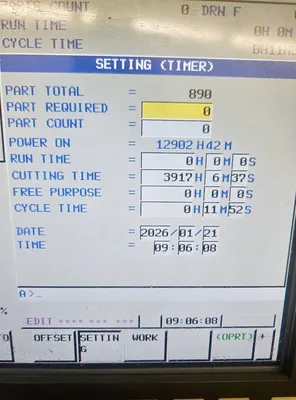

** AS OF JANUARY 2026, CUTTING TIME – 3,917 HOURS
** MACHINE CUT PRIMARILY 316 STAINLESS
** FULL REPLACEMENT COST, AS EQUIPPED - $140,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

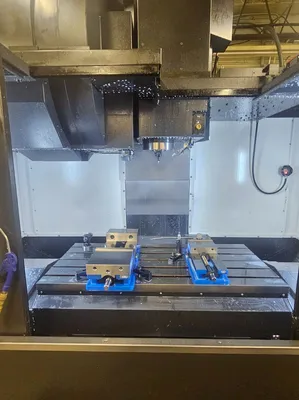

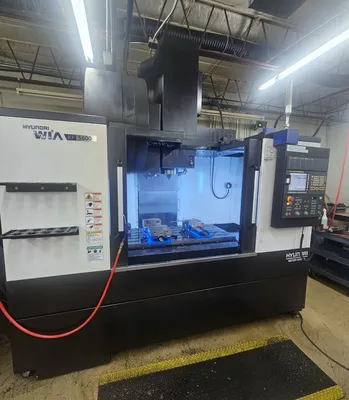

** VICES SHOWN ON THE TABLE ARE NOT INCLUDED WITH THE MACHINE
