| TABLE WIDTH | 10" | 254 mm |
| TABLE LENGTH | 50" | 1,270 mm |
| MAX WEIGHT OF WORKPIECE | 850 lb | 385.6 kg |
| TABLE TRAVEL (X-AXIS) | 32" | 812.8 mm |
| SADDLE TRAVEL (Y-AXIS) | 16" | 406.4 mm |
| QUILL TRAVEL (Z-AXIS) | 5" | 127 mm |
| QUILL DIAMETER | 0" | 0 mm |
| KNEE TRAVEL | 16" | 406.4 mm |
| RAM TRAVEL | 15" | 381 mm |
| SPINDLE MOTOR | 3 hp | 2.2 kW |
| SPINDLE SPEED | 4,200 RPM | 4,200 RPM |
| SPINDLE TAPER | R8 | R8 |
| Control | CNC (PROTOTRAK SMX) | CNC (PROTOTRAK SMX) |
| Dimensions | 71" X 59" X 84" | 71" X 59" X 84" |
| Weight | 2816 lbs | 2816 lbs |

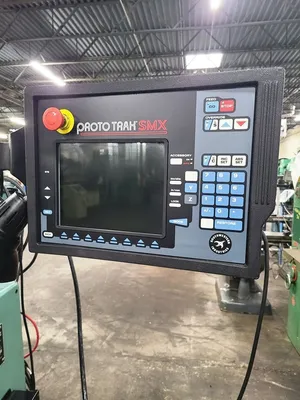

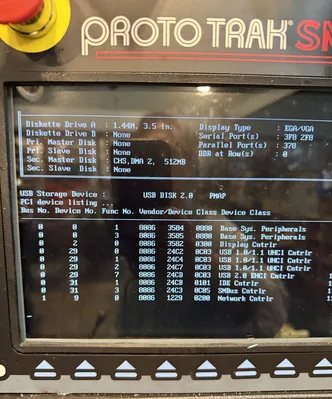

2018 UPDATED SMX CONTROL
3-AXIS DRO (VERTICAL READS FROM QUILL)

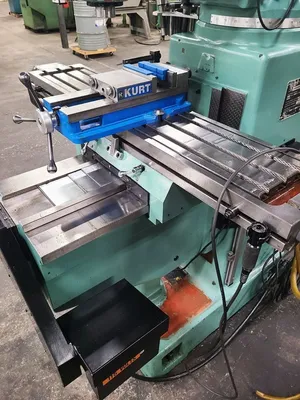

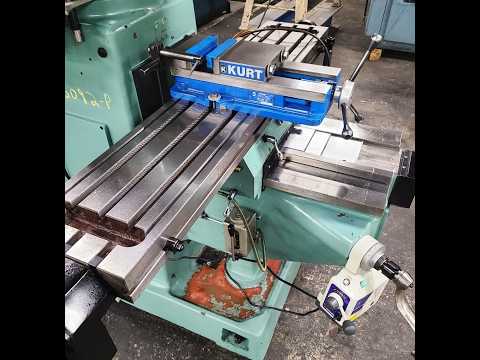

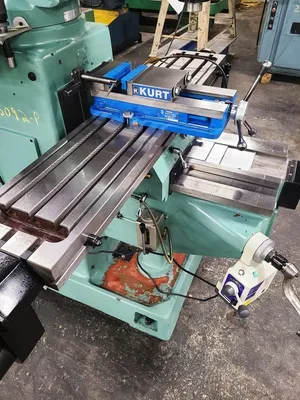

6" KURT VISE
ASSORTED R8 COLLETS
IMPORT BRAND POWER FEED ON KNEE
VARI-SPEED HEAD: 60-500 & 600-4200 RPM
HEAD TILT: 45 DEG. FRONT-BACK & 90 DEG LEFT-RIGHT
MANUALS
GRAYMILLS COOLANT TANK AND PUMP
ONE SHOT LUBE
TORQUE RITE AIR POWER DRAW BAR
HARD BOX WAYS
3 HP MAIN MOTOR
WIRED FOR 3 PHASE, 60 CYCLE, 220 VOLTS
OVERALL SIZE: 71" LR X 59" FB X 84" HIGH X 2816 LBS.
** EXCELLENT CONDITION FROM SINGLE USER SHOP, PURCHASED NEW, R&D LAB
