| MAX SWING | 28.3" | 718.82 mm |
| MAX CUTTING DIAMETER | 18.9" | 480.06 mm |
| MAX CUTTING LENGTH | 29.7" | 754.38 mm |
| X-AXIS TRAVEL | 10.2" | 259.08 mm |
| Z-AXIS TRAVEL | 32.7" | 830.58 mm |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 4" | 101.6 mm |
| SPINDLE BORE | 4.5" | 114.3 mm |
| SPINDLE NOSE | A2-11 | A2-11 |
| SPINDLE MOTOR | 45 hp | 33.6 kW |
| SPINDLE SPEED | 2,800 RPM | 2,800 RPM |
| TURRET POSITIONS | 12 | 12 |
| TURRET TYPE | BMT | BMT |

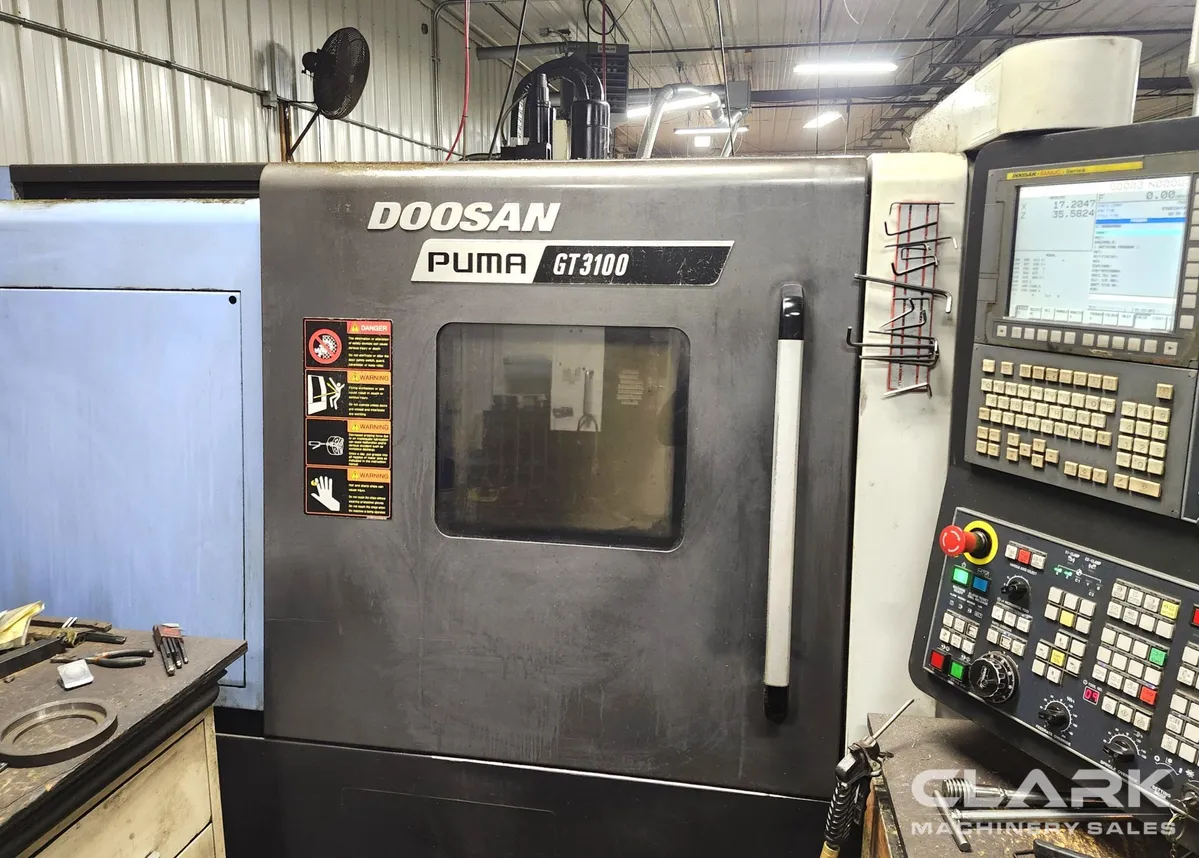

DOOSAN-FANUC i SERIES CONTROL
2-SPEED GEARBOX
4" BAR CAPACITY
12”, 3-JAW SAMCHULLY (MH-212) HYDRAULUC CHUCK
S26 COLLET CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
BOX WAYS
** AS OF MARCH 2026, CUTTING TIME: 8,028 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED - $150,000
** MACHINE CUTTING PRIMARILY STAINLESS STEEL & ALUMINUM
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
