| MAX CUTTING LENGTH | 3.93" | 99.822 mm |
| X-AXIS TRAVEL | 5.5" | 139.7 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 1.37" | +/- 1.37" |
| Z-AXIS TRAVEL | 9.25" | 234.95 mm |
| CHUCK SIZE | 5" | 127 mm |
| BAR CAPACITY | 1.625" | 41.275 mm |
| SPINDLE MOTOR | 10 hp | 7.5 kW |
| SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 4" | 101.6 mm |
| SUB SPINDLE - BAR CAPACITY | 1.625" | 41.275 mm |
| SUB SPINDLE - SPINDLE MOTOR | 7.5 hp | 5.6 kW |
| SUB SPINDLE - SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| TURRET CAPACITY | 8 | 8 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| TURRET 2 CAPACITY | 6 | 6 |

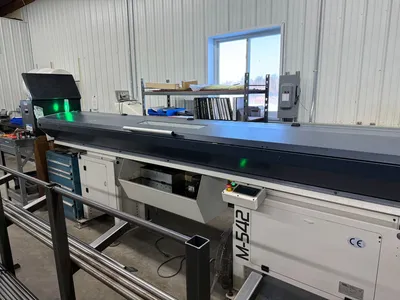

EDGE MIYANO M542 MAGAZINE BAR FEEDER (12’)

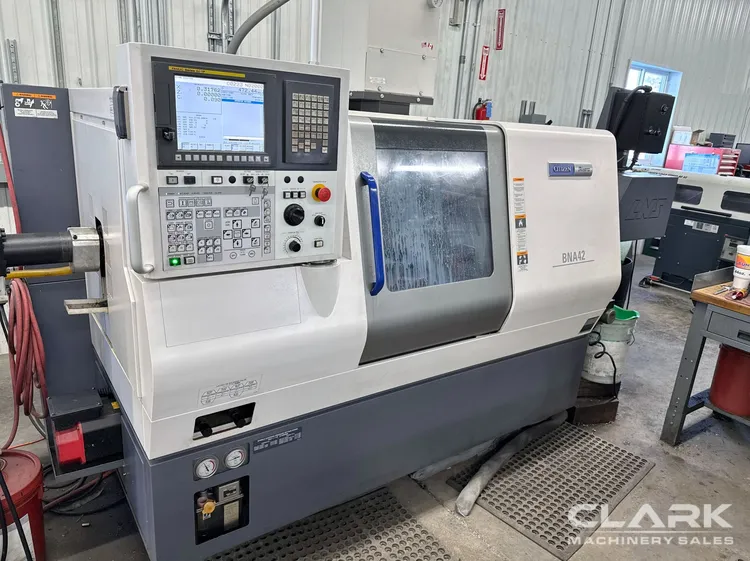

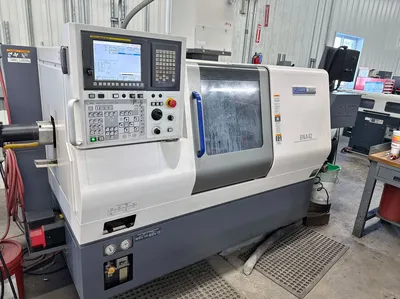

FANUC 0i-TF CONTROL
(7) CUTTING AXES

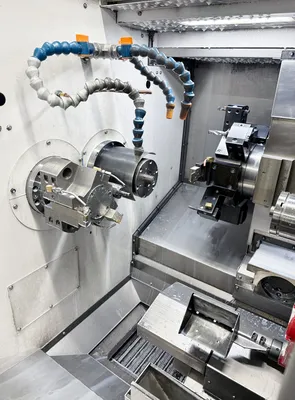

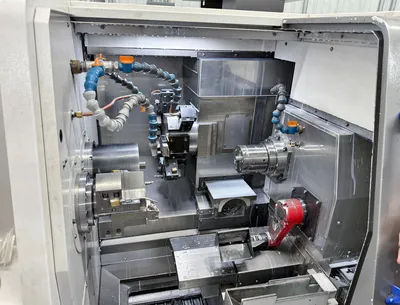

SIMULTANEOUS MACHINING ON MAIN & SUB SPINDLES
5” POWER CHUCK (MAIN)
4” POWER CHUCK (SUB)
Y-AXIS
LIVE MILLING
SUB SPINDLE
8-STATION HALF-INDEXING MAIN TURRET
6-STATION SUB TURRET FOR STATIONARY TOOLS
MIST-FIT MF-550 MIST COLLECTOR
PARTS CATCHER
WORK EJECTOR
PARTS CONVEYOR
CHIP CONVEYOR
AIR BLOW (MAIN & SUB)
SPINDLE DISC BRAKE (MAIN & SUB)
HELICAL INTERPOLATION
BACKGROUND EDITING
CUSTOM MACROS
TOOL MONITOR
RIGID TAPPING
Y-AXIS OFFSET
(3) LIVE TOOL HOLDERS
(1) CHANNEL SET
** AS OF FEBRUARY 2026, CUTTING TIME – 1,612 HOURS

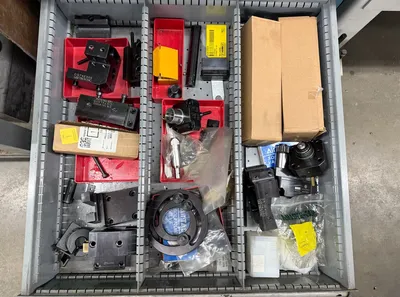

** TOOL HOLDERS & COLLETS SHOWN ARE INCLUDED
** FULL REPLACEMENT COST, AS EQUIPPED - $220,000
** MACHINE CUT PRIMARILY ALUMINUM & COLD-ROLLED STEEL (1215)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
