| SWING OVER BED | 33.47" | 850.14 mm |
| MAX CUTTING DIAMETER | 16.93" | 430.02 mm |
| MAX CUTTING LENGTH | 31.3" | 795.02 mm |
| X-AXIS TRAVEL | 11.03" | 280.16 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 5.12" (+/- 2.56") | 5.12" (+/- 2.56") |
| Z-AXIS TRAVEL | 34.06" | 865.12 mm |
| CHUCK SIZE | 12" | 304.8 mm |
| BAR CAPACITY | 4.06" | 103.12 mm |
| SPINDLE BORE | 4.53" | 115.06 mm |
| SPINDLE NOSE | A2-11 | A2-11 |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE SPEED | 2,500 RPM | 2,500 RPM |
| TURRET CAPACITY | 12 STATIONS (24 POSITIONS) | 12 STATIONS (24 POSITIONS) |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 4,500 RPM | 4,500 RPM |

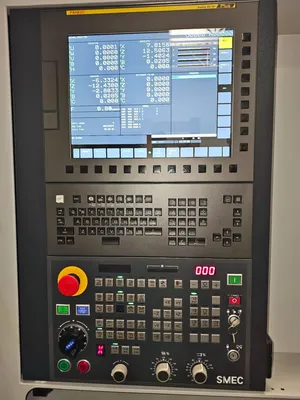

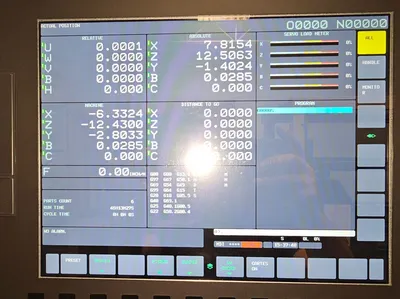

FANUC 0i-TF PLUS CONTROL
Y-AXIS
LIVE MILLING

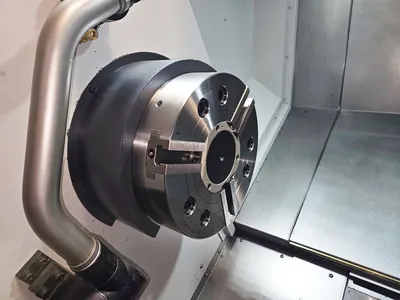

12”, 3-JAW SAMCHULLY (MH-212) HYDRAULIC CHUCK
4” BAR CAPACITY
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR

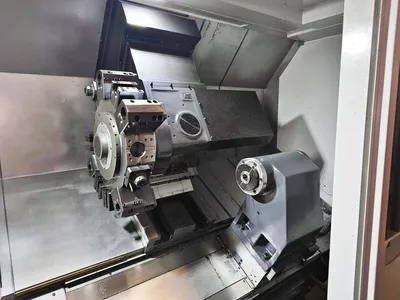

12 STATION/24 POSITION BMT65 TURRET
RIGID TAPPING
BOX WAYS
ETHERNET
USB PORT
(2) STRAIGHT LIVE TOOL HOLDERS
(1) RIGHT ANGLE LIVE TOOL HOLDER
** AS OF FEBRUARY 2026, RUN TIME – 46 HOURS
** MACHINE HAS BARELY BEEN USED
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
