2019 TSUDAKOMA TBS-160H, 5-AXIS TILTING ROTARY TABLE
ConditionUsed
1 available

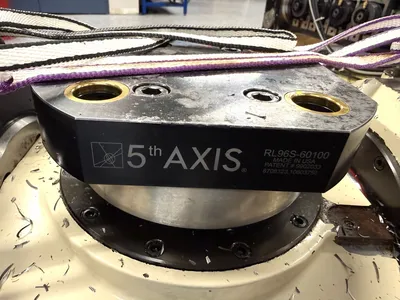

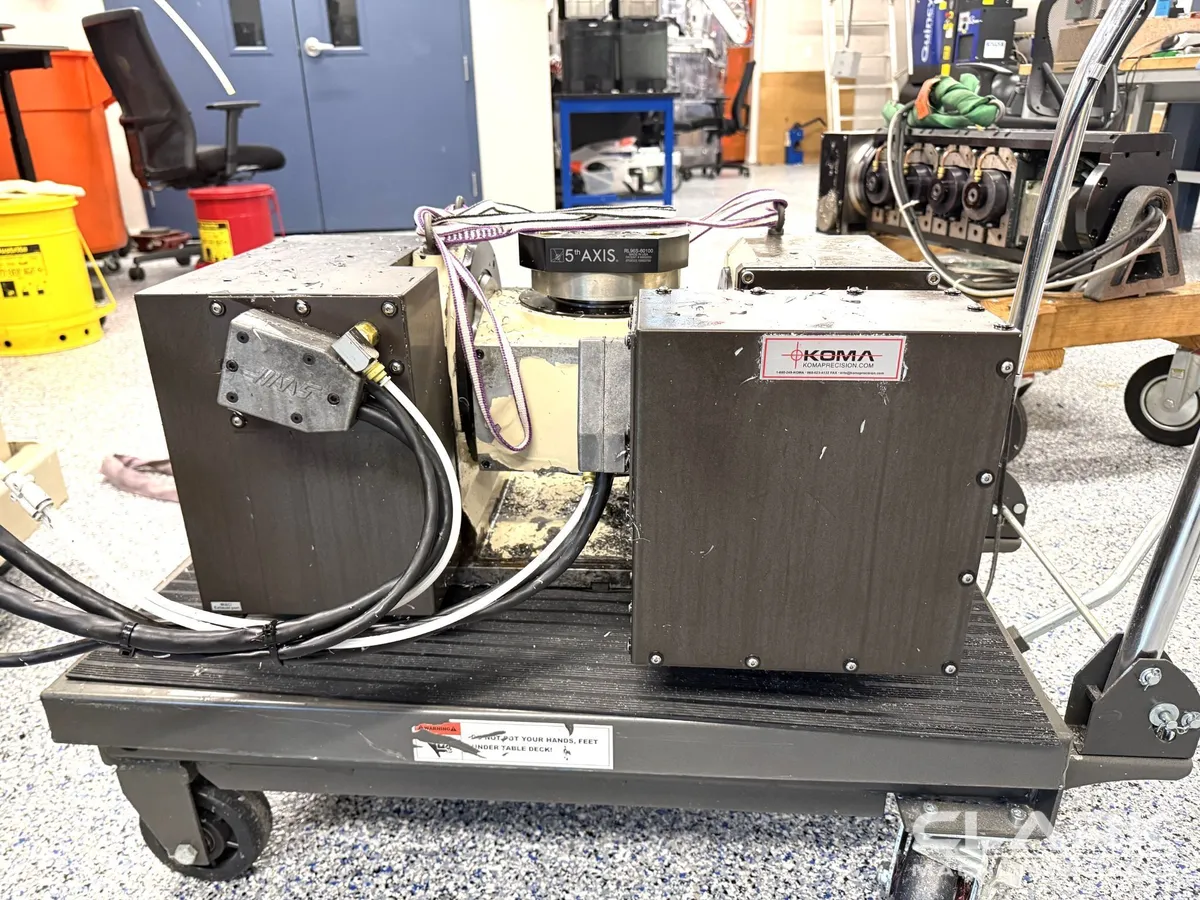

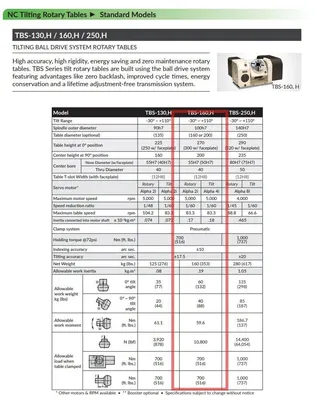

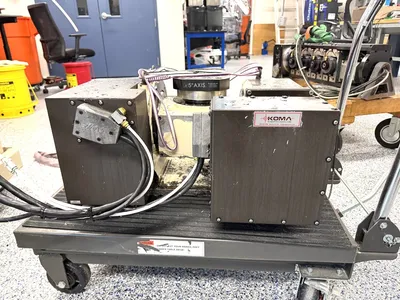

Only used in an R & D medical facility, this 2019 Tsudakoma TBS-160H 5-axis NC tilting rotary table with high speed indexing is built with Tsudakoma's new tilting ball drive system offering high torque transfer efficiency, high accuracy, energy saving and zero maintenance. See attached photo with specifications.
TILT RANGE.................... -30° ~ +110°
SPINDLE OUTER DIAMETER........ 100H7 (or 3.93")
TABLE HEIGHT AT 0° POSITION... 10.62"
CENTER HEIGHT AT 90° POSITION. 7.87"
CENTER BORE NOSE DIAMETER..... 55H7 (or 2.16")
CENTER BORE THRU DIAMETER..... 1.57"
TABLE T-SLOT WIDTH............ 12H8 (or 0.47")
MAXIMUM MOTOR SPEED........... 5,000 RPM
MAXIMUM TABLE SPEED........... 83.3 RPM
CLAMP SYSTEM.................. PNEUMATIC
HOLDING TORQUE @72 PSI........ 516 FT.LBS.
INDEXING ACCURACY............. ±10 ARC SEC.
TILTING ACCURACY.............. ±17.5 ARC SEC.
NET WEIGHT.................... 353 LBS

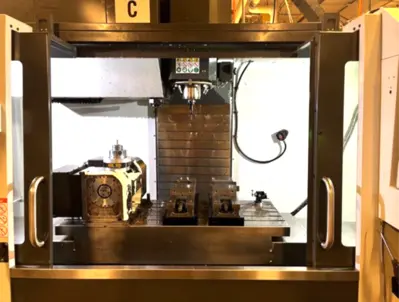

** ONLY INSTALLED ON A 2019 HAAS VF-4SS WITH 4,479 FEED CUTTING HOURS
** VF-4SS WAS CUTTING PRIMARILY ALUMINUM FOR MEDICAL R & D COMPANY
** REPLACEMENT PRICE NEW AS EQUIPPED: $70,000
** READY FOR IMMEDIATE INSPECTION & PURCHASE
