| SWING OVER SADDLE | 25.59" | 649.99 mm |
| MAX CUTTING LENGTH | 82" | 2,082.8 mm |
| DISTANCE BETWEEN CENTERS | 93.11" | 2,365 mm |
| X-AXIS TRAVEL | 27.36" | 694.94 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 11.81 | 11.81 |
| Z-AXIS TRAVEL | 82.68" | 2,100.1 mm |
| CHUCK SIZE | 15" | 381 mm |
| SPINDLE BORE | 4.01" | 101.85 mm |
| SPINDLE MOTOR | 50 hp | 37.3 kW |
| SPINDLE SPEED | 3,000 RPM | 3,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 15" | 381 mm |
| SUB SPINDLE - SPINDLE BORE | 3.189" | 81.001 mm |
| SUB SPINDLE - SPINDLE MOTOR | 30 hp | 22.4 kW |
| SUB SPINDLE - SPINDLE SPEED | 3,800 RPM | 3,800 RPM |
| SUB SPINDLE / W-AXIS TRAVEL | 78.74" | 2,000 mm |
| B-AXIS SPINDLE MOTOR | 33 hp | 24.6 kW |
| B-AXIS MILLING SPEED | 12,000 RPM | 12,000 RPM |
| B-AXIS SPINDLE TAPER | CAPTO C6 | CAPTO C6 |
| B-AXIS TOOL POSITIONS | 80 | 80 |
| TURRET CAPACITY | 12 | 12 |
| LIVE MILLING | Yes | Yes |
OKUMA OSP-P500S-H CNC CONTROL

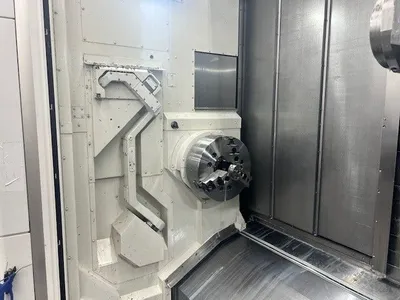

KITAGAWA 15" 3-JAW HYDRAULIC CHUCKS (BOTH SPINDLES)

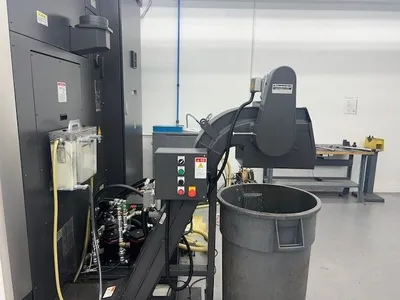

CHIP CONVEYOR
80 ATC SYSTEM

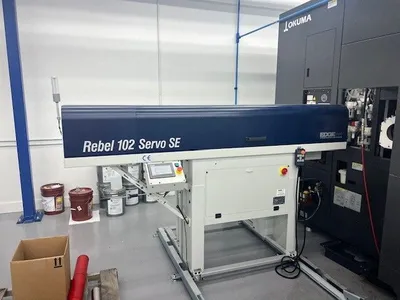

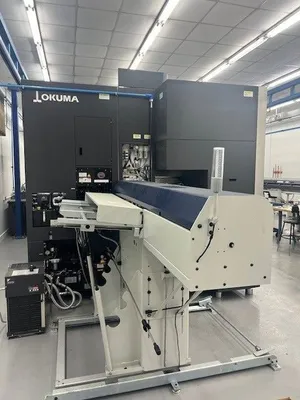

EDGE TECHNOLOGIES REBEL 102 SE SERVO FEED SHORT LOADER 0.315"-4.015"
LNS SLUX-3.2 PROGRAMMABLE STEADY REST
MP SYSTEMS VR SERIES 1000 PSI HIGH PRESSURE COOLANT SYSTEM
T-SUPPLY INTERNATIONAL CO LTD DRY TYPE TRANSFORMER
RENISHAW RMP60-RMI-Q PART PROBE
RED SPINDLE LINER ON SKID
CALIBRATION KIT IN WOOD BOX
DAIKIN COOLING UNIT
OKUMA MANUALS
BLUE OKUMA TOOL BOX
STATIC TOOL HOLDER KIT
TOOL HOLDERS TO INCLUDE:
- (6) BORING BAR HOLDERS
- (2) SINGLE TURNING HOLDERS
- (3) DOUBLE TURNING HOLDERS
- (2) RIGHT ANGLE DRIVEN TOOL HOLDERS
- (2) STRAIGHT DRIVEN TOOL HOLDERS
- (1) PART PROBE TOOL HOLDER AND STYLUS
MISC CHUCK JAWS AS DOCUMENTED:
- 1 DRAWER FULL, IN BLUE CABINET
- BOX OF MSC CHUCK JAWS
- SET OF 3 JAWS ON ROLLING TABLE
- SET OF 3 JAWS ON WORK TABLE
5-AXIS MACHINING KIT
MULTI-EDGE LATHE TOOL INDEX FUNCTION
B-AXIS TURNING FUNCTION
HIGH-SPEC. 5-AXIS AUTO TUNING SYSTEM
Y-AXIS GAUGING WITH SLOPE GAUGING
C-AXIS AUTO ZERO OFFSET (BOTH SPINDLES)
Z-AXIS AUTO ZERO OFFSET (BOTH SPINDLES)
AUTO TOUCHSETTER FOR 2 SADDLE
THERMAL ACTIVE STABILIZERS
COLLISION AVOIDANCE SYSTEM
AOT / IGF CONVERSATIONAL PROGRAMMING
NEGATIVE TOOL RADIUS COMPENSATION
CUTTING STEP FEED FUNCTION
C-AXIS SYNCHRONIZE FUNCTION (BOTH SPINDLES)
VARIABLE SPINDLE SPEED THREADING (BOTH SPINDLES)
THREAD PHASE MATCHING
GEAR MACHINING FUNCTION
TYPE B SHOWER COOLANT
*** MACHINE IS STILL IN PLANT, UNDER POWER. AVAILABLE IMMEDIATELY.
