2018 DOOSAN PUMA 5100LC, 10.8" BORE, 80" CENTERS, LIKE-NEW
Sold

2018 DOOSAN PUMA 5100LC, 10.8" BORE, 80" CENTERS, LIKE-NEW

Sell Your DOOSAN PUMA 5100LC
CNC Lathes 2-Axis
Manufacturer:
DOOSAN
Model:
PUMA 5100LC
Condition:
Like New
Year:
2018
Stock #:
500163

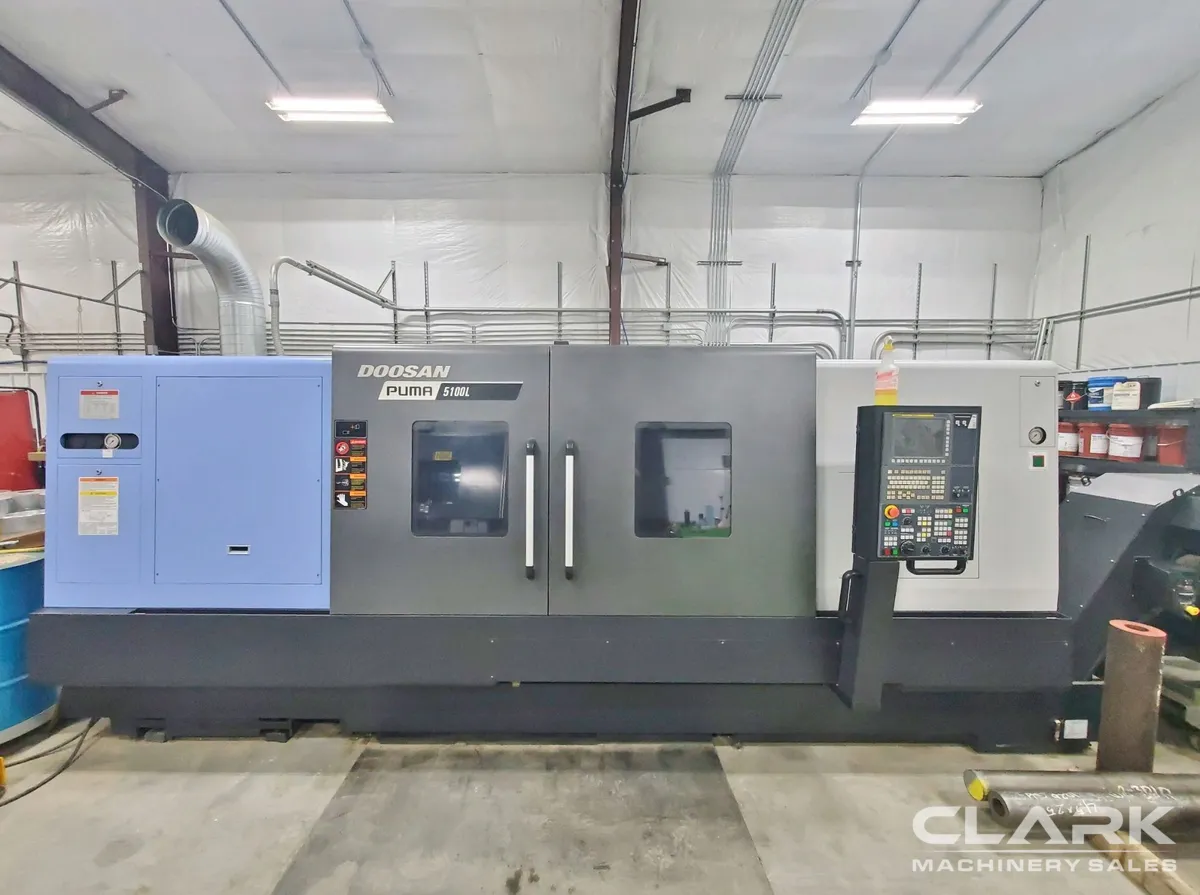

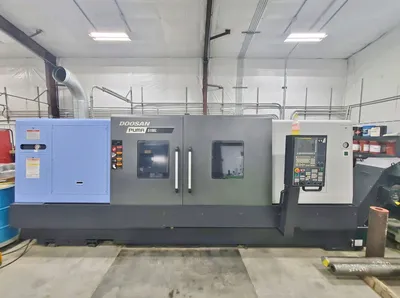

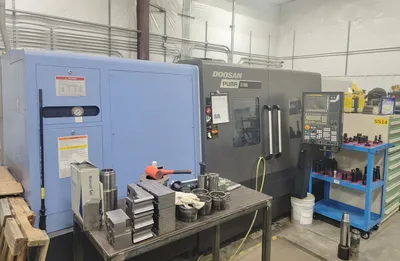

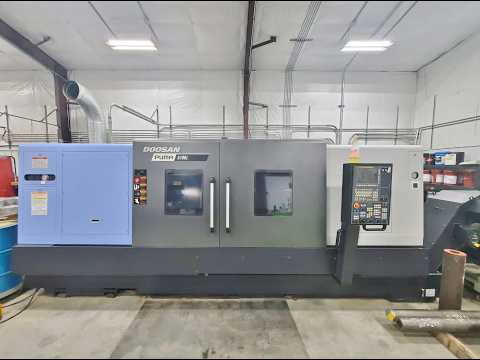

Rare Find, Like-New, Available Immediately! 2018 Doosan Puma 5100LC. Fanuc Control, 24" chuck, 10.8" Spindle Bore, 80" Turning Length, Tailstock, Chip Conveyor, Box Ways, like-new, only 230 Cutting Hours. In plant, under power and available immediately.
MAX SWING35.4"899.16 mm
MAX CUTTING DIAMETER25.6"650.24 mm
MAX CUTTING LENGTH80.4"2,042.2 mm
X-AXIS TRAVEL14.3"363.22 mm
Z-AXIS TRAVEL84.8"2,153.9 mm
CHUCK SIZE24"609.6 mm
SPINDLE BORE10.8"274.32 mm
SPINDLE NOSEISO 702-4 NO. 20ISO 702-4 NO. 20
SPINDLE MOTOR60 hp44.7 kW
SPINDLE SPEED1,000 RPM1,000 RPM
RAPID TRAVERSE RATE X-AXIS629 in/min.1,597.7 cm/min.
RAPID TRAVERSE RATE Z-AXIS787 in/min.1,999 cm/min.

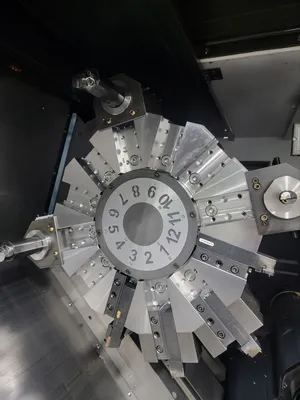

TURRET POSITIONS1212
TURRET TYPEBMTBMT
Dimensions270" x 90" x 90"270" x 90" x 90"
Weight27,000 LBS27,000 LBS

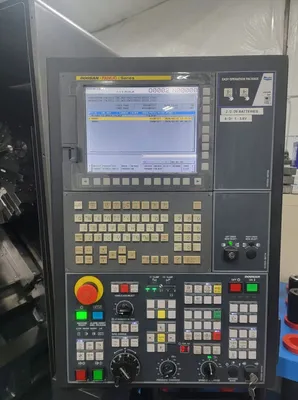

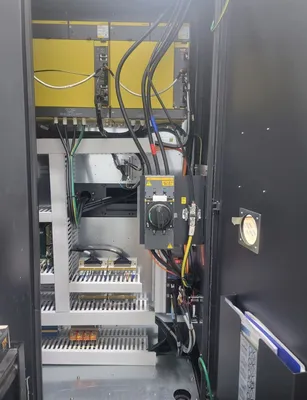

FANUC 0i-TF CONTROL (EZ-GUIDE i)
2-SPEED GEARBOX (60 HP PEAK)

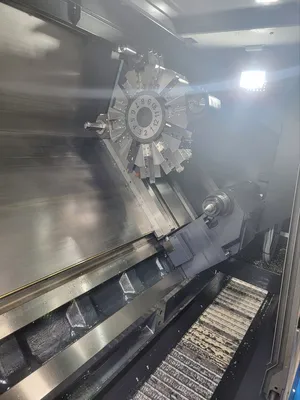

BOX WAYS

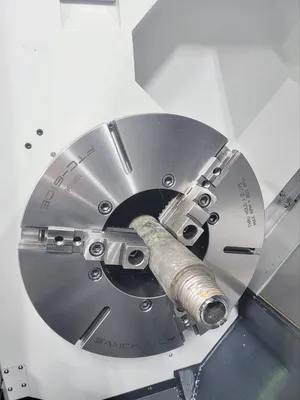

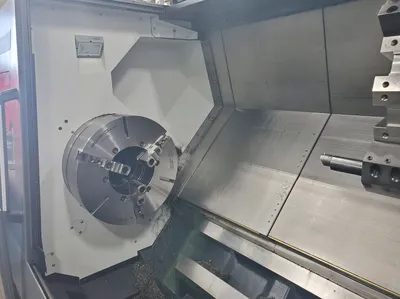

24”, 3-JAW SAMCHULLY (FTC-610B) MANUAL CHUCK (850 MAX RPM)

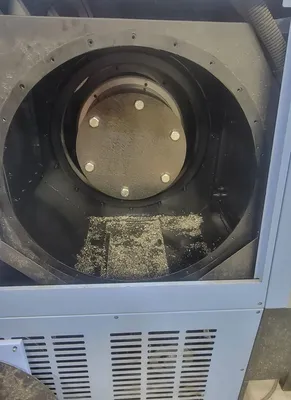

BIG BORE (10.8” SPINDLE BORE)
LONG BED (80.4” TURNING LENGTH)

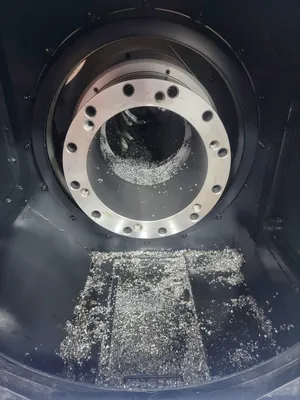

ADAPTER TO ACCEPT A REAR CHUCK

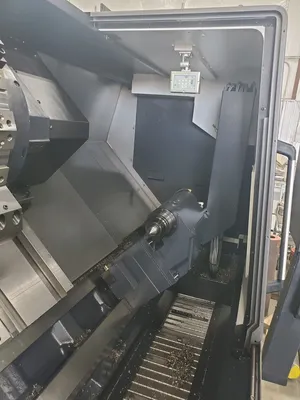

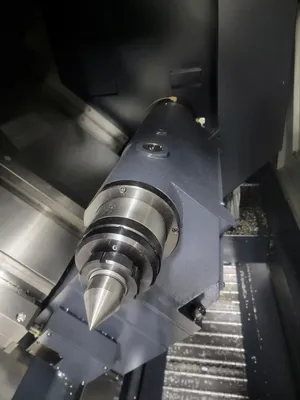

PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR
INTERFACE FOR HIGH-PRESSURE COOLANT
ARBITRARY SPEED THREADING
ETHERNET & USB

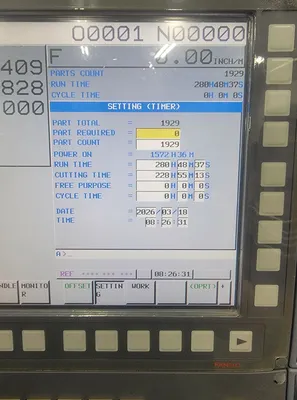

** AS OF APRIL 2026, CUTTING TIME – 228 HOURS

** MACHINE IS LIKE-NEW
** MACHINE CUT ALUMINUM & STEEL (4145)
** FULL REPLACEMENT COST, AS EQUIPPED - $300,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE

** MACHINE DOES NOT HAVE A HYDRAULIC ACTUATOR OR DRAW TUBE

This equipment has been sold. Similar equipment available now is shown below.
