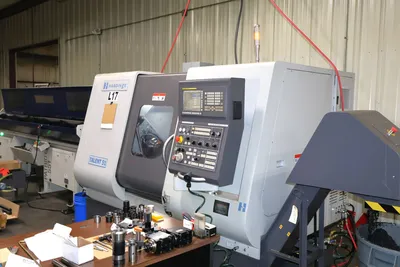

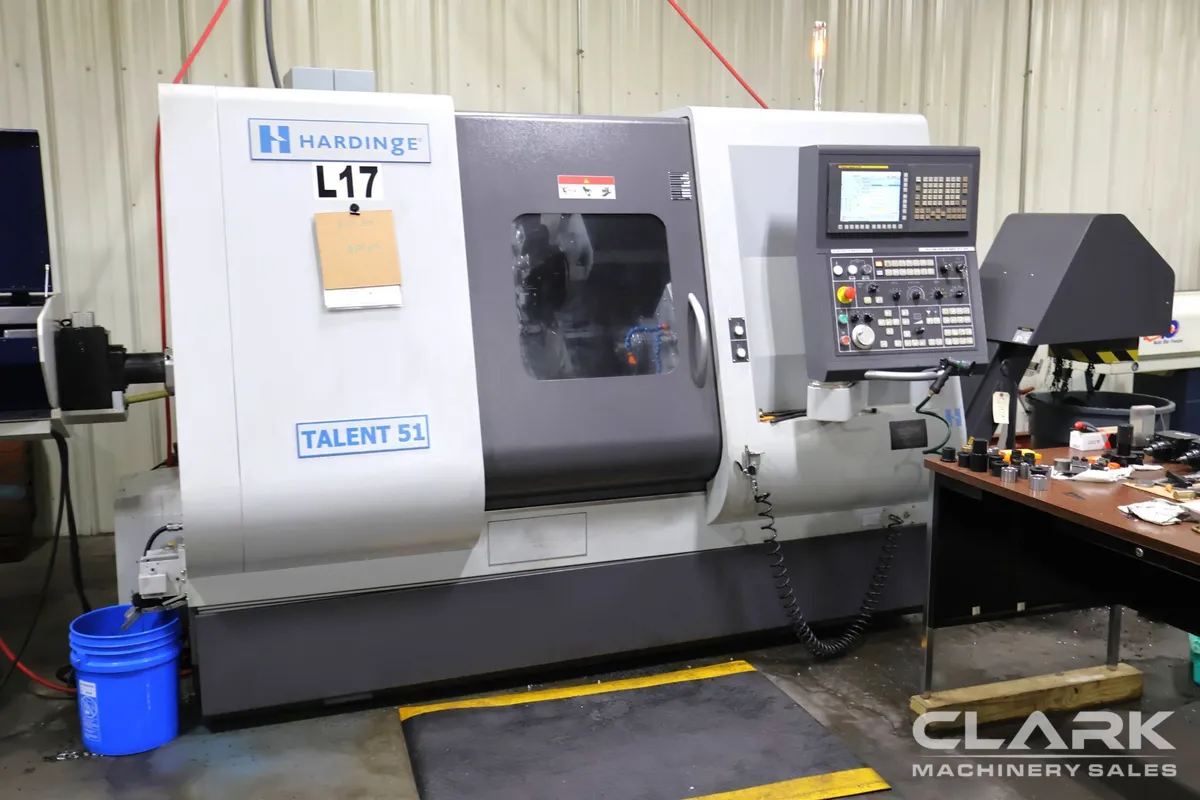

| SWING OVER BED | 21.65" | 549.91 mm |
| MAX CUTTING DIAMETER | 11.41" | 289.81 mm |
| MAX CUTTING LENGTH | 23.4" | 594.36 mm |
| X-AXIS TRAVEL | 7.08" | 179.83 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 1.65 | 1.65 |
| Z-AXIS TRAVEL | 25.67" | 652.02 mm |
| BAR CAPACITY | 2" | 50.8 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 24.8 hp | 18.5 kW |
| SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 1,181 in/min. | 30 m/min. |
| RAPID TRAVERSE RATE - Y-AXIS | 394 in/min. | 10 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,181 in/min. | 30 m/min. |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - BAR CAPACITY | 1.65" | 41.91 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT45 | BMT45 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| LIVE MILLING MOTOR | 5 hp | 3.7 kW |
| Dimensions | 114.7" X 72.2" X 76.1" H | 114.7" X 72.2" X 76.1" H |
| Weight | 12,786 LBS | 12,786 LBS |

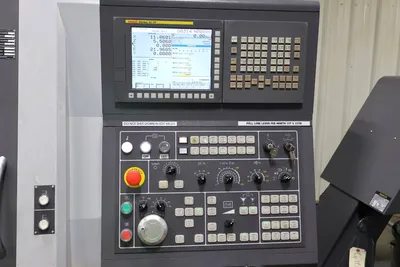

FANUC OI-TF CNC CONTROL

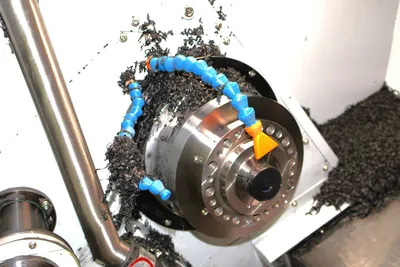

COLLET CHUCKS ON MAIN & SUB SPINDLE
* MAIN AND SUB SPINDLES ARE "COLLET READY" FOR INCREASED PART ACCURACY AND SURFACE FINISH

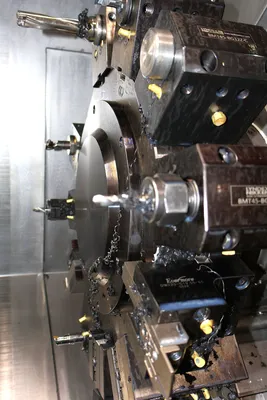

MISC DRIVEN AND FIXED TOOL HOLDERS
C-AXIS, Y-AXIS

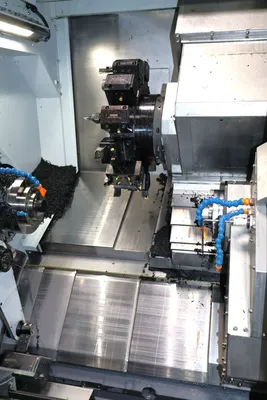

12 POSITION TURRET WITH 1/2 INDEX CAPABILITY

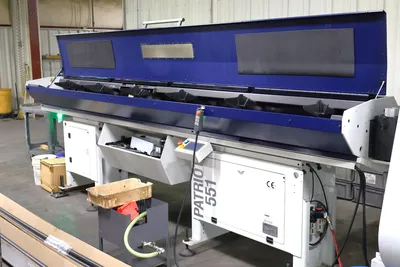

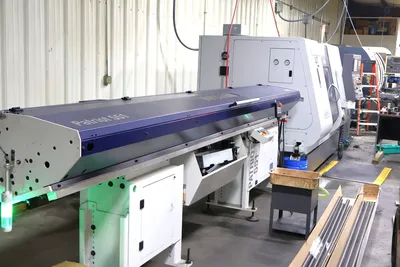

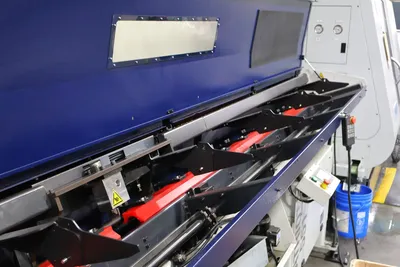

12' EDGE PATRIOT 551/12 BAR FEED
PARTS CATCHER
RENISHAW PROBING
AUTOMATIC TOOL EYE
CHIP CONVEYOR
COOLANT SYSTEM
MACHINE NOTES:
* "COLLET READY" MAIN AND SUB-SPINDLES, NO ADAPTOR REQUIRED
* HEAVY DUTY ROLLER LINEAR GUIDEWAYS AND BALLSCRES
MACHINE IS IN SINGLE SHIFT HARDINGE FACILITY.
CONDITION: EXCELLENT, CUT PRIMARILY PLASTIC
*** MACHINE IS IN PLANT, UNDER POWER - AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
This equipment has been sold. Similar equipment available now is shown below.
