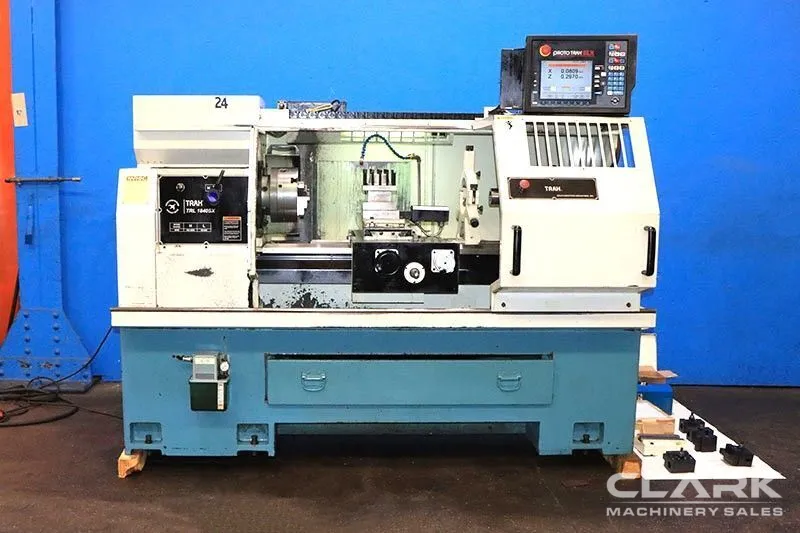

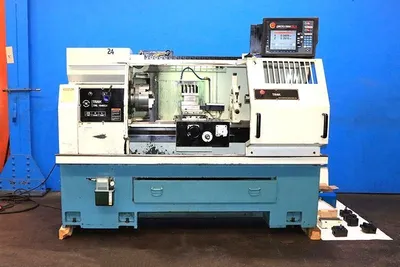

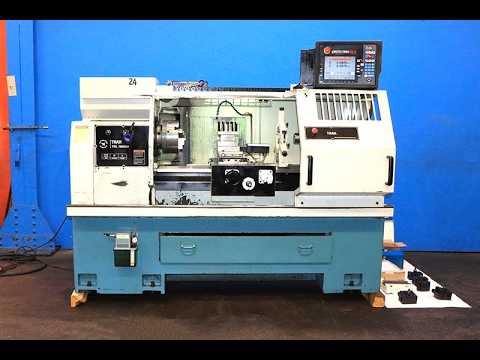

2006 SOUTHWESTERN INDUSTRIES TRAK 1840SX, 10" CHUCK
ConditionUsed
1 available
10" 3-Jaw Chuck, 4-Station Toolpost, Steady Rest, 2-Axis DRO. This 2006 Southwestern Industries (SWI) Trak TRL 1840SX cnc 2-axis manual flat bed lathe is also equipped with constant and programmable spindle speeds, electronic handwheels, and jogstick.
SWING OVER BED ............................. 18-1/2"
HEIGHT OF CENTERS .......................... 9"
SWING OVER CROSS SLIDE ..................... 9"
SWING OVER SADDLE WINGS .................... 17"
MAX DISTANCE BETWEEN CENTERS ............... 40.2"
CROSS SLIDE TRAVEL (X) ..................... 13"
LONGITUDINAL TRAVEL (Z) .................... 40"
SPINDLE TAPER, CAMLOCK, SIZE ............... D1-6

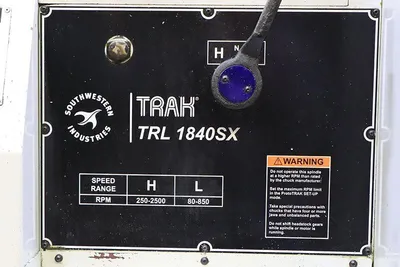

SPINDLE SPEED RANGE (2), INF VAR ........... 50 - 2500 RPM
SPINDLE BORE ............................... 2.36"
TAPER IN HEADSTOCK SPINDLE ................. #6 MT
TAPER IN HEADSTOCK SPINDLE REDUCTION SLEEVE. #4 MT

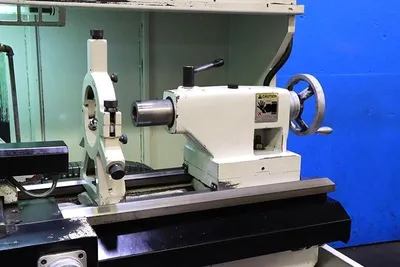

TAILSTOCK QUILL TRAVEL ..................... 6.3"
TAILSTOCK QUILL DIAMETER ................... 2.95"
TAILSTOCK QUILL TAPER HOLE ................. #5 MT
APPROX WEIGHT .............................. 4,500 LBS
APPROX DIMENSIONS .......................... 94" X 53" X 70"

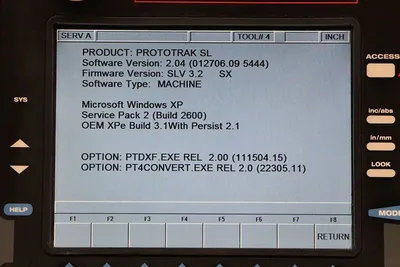

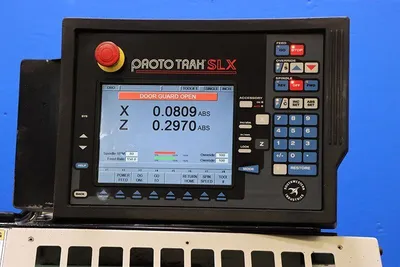

PROTOTRAK SLX CNC CONTROL
TWO AXIS DIGITAL READOUT DURING MANUAL OPERATION

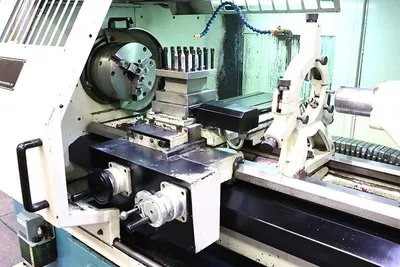

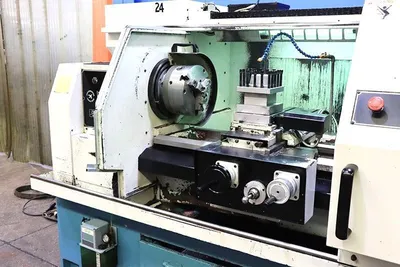

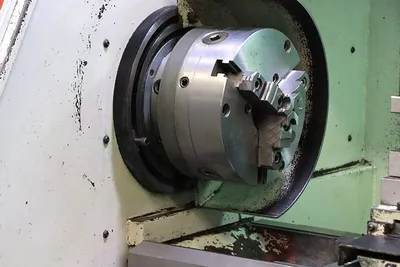

10" 3-JAW CHUCK
STEADY REST

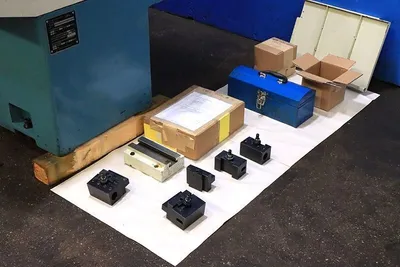

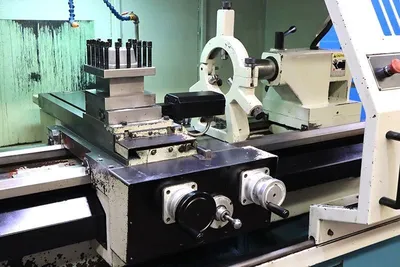

4-STATION PROGRAMMABLE STAR INDEXABLE TOOLPOST
CONSTANT SURFACE SPEED & PROGRAMMABLE SPINDLE SPEEDS
ELECTRONIC HANDWHEELS (X & Z MANUAL TRAVERSE)
JOGSTICK (JOGGING AT RAPID TRAVELS)
COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM (SLIDE WAYS & BALLSCREWS)
SERVO MOTORS & GROUND BALLSCREWS
HARDENED & GROUND BED WAYS
AC SPINDLE DRIVE
ELECTRICAL CONTROLS
10 HORSE POWER 3/60/220 VOLT SPINDLE DRIVE MOTOR &
UNLIMITED NUMBER OF THREAD PITCHES & UP TO 10 LEADS
** UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
