2019 HAAS ST-30, 2900 HOURS, RENISHAW WIPS, TAILSTOCK
ConditionUsed
1 available

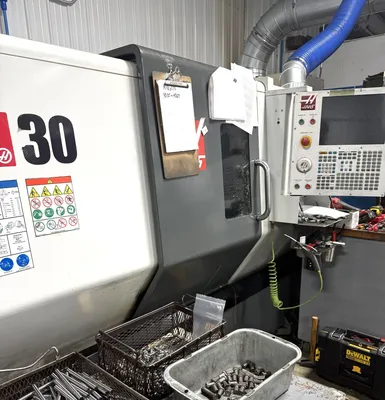

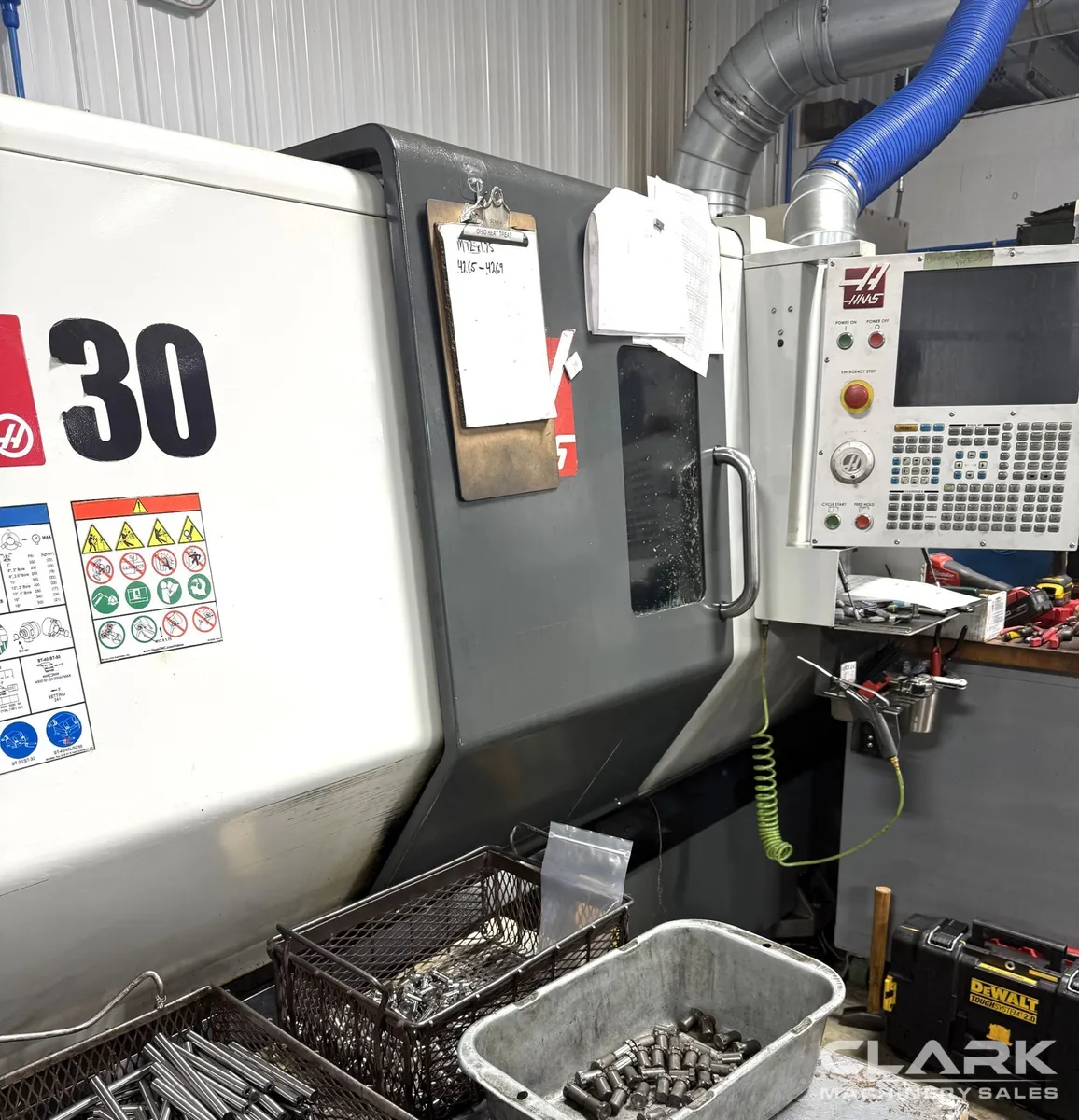

2,879 Cutting Hours, NexGen Control, Renishaw WIPS for Lathes, Tool Presetter, Tailstock, 4,500 RPM. Installed in January, 2020, this very well maintained originally owned 2019 Haas ST-30 CNC 2-axis lathe is in plant and under power and also includes chip conveyor and high pressure coolant (300 psi).

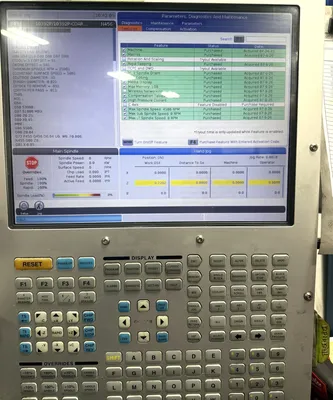

NEXTGEN CNC CONTROL

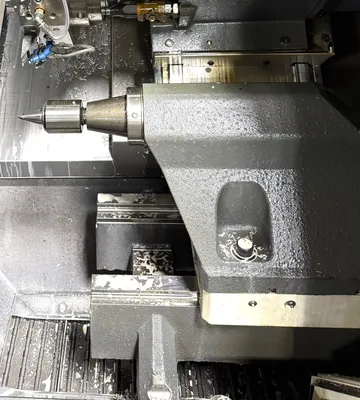

PROGRAMMABLE TAILSTOCK
WIRELESS INTUITIVE PROBING SYSTEM FOR LATHES (WIPS)
TOOL PRESETTER
10" 3-JAW HYDRAULIC CHUCK
4,500 RPM SPINDLE UPGRADE
CHIP CONVEYOR
AIR BLAST
HIGH PRESSURE COOLANT (300 PSI)
COOLANT SYSTEM
VISUAL PART PROGRAMMING SYSTEM
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
EARLY POWER-FAILURE DETECTION
ETHERNET
1GB
HAAS CONNECT
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY: STEEL
** MACHINE INSTALL DATE: JANUARY, 2020
** MACHINE MANUFACTURED DATE: NOVEMBER, 2019
** REPLACEMENT PRICE NEW AS EQUIPPED: $135,000
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
2,879 Cutting Hours, NexGen Control, Renishaw WIPS for Lathes, Tool Presetter, Tailstock, 4,500 RPM. Installed in January, 2020, this very well maintained originally owned 2019 Haas ST-30 CNC 2-axis lathe is in plant and under power and also includes chip conveyor and high pressure coolant (300 psi).
Imperial
| SWING OVER FRONT APRON | 31.75" |
| MAX CUTTING DIAMETER | 15" |
| MAX CUTTING LENGTH | 32.5" |
| X-AXIS TRAVEL | 9.4" |
| Z-AXIS TRAVEL | 32.5" |
| CHUCK SIZE | 10" |
| BAR CAPACITY | 3" |
| SPINDLE BORE | 3.5" |
| SPINDLE NOSE | A2-6 |
| SPINDLE MOTOR | 30 hp |
| SPINDLE SPEED | 3,400 RPM |
| RAPID TRAVERSE RATE X-AXIS | 472 in/min. |
| RAPID TRAVERSE RATE Z-AXIS | 945 in/min. |
| TURRET POSITIONS | 12 |
NEXTGEN CNC CONTROL
PROGRAMMABLE TAILSTOCK
WIRELESS INTUITIVE PROBING SYSTEM FOR LATHES (WIPS)
TOOL PRESETTER
10" 3-JAW HYDRAULIC CHUCK
4,500 RPM SPINDLE UPGRADE
CHIP CONVEYOR
AIR BLAST
HIGH PRESSURE COOLANT (300 PSI)
COOLANT SYSTEM
VISUAL PART PROGRAMMING SYSTEM
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
EARLY POWER-FAILURE DETECTION
ETHERNET
1GB
HAAS CONNECT
** ORIGINAL OWNER
** MACHINE CUTTING PRIMARILY: STEEL
** MACHINE INSTALL DATE: JANUARY, 2020
** MACHINE MANUFACTURED DATE: NOVEMBER, 2019
** REPLACEMENT PRICE NEW AS EQUIPPED: $135,000
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
