2006 CHEVALIER FSG-1632-ADII
ConditionUsed
1 available

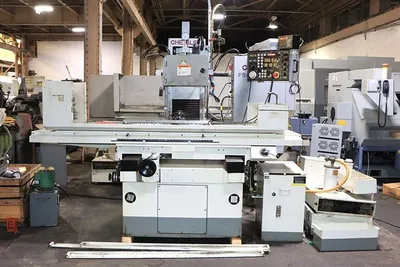

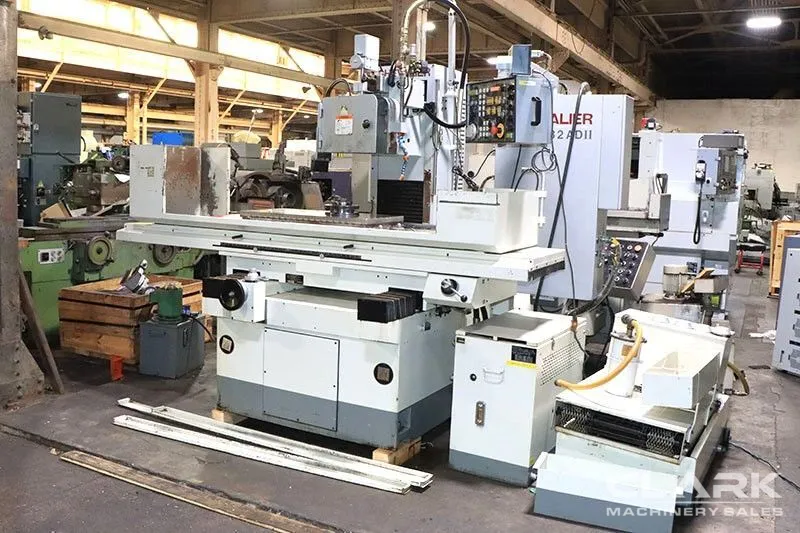

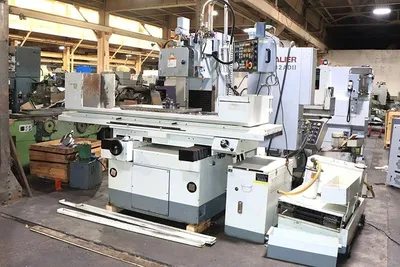

2006 CHEVALIER FSG-1632-ADII surface grinder in excellent condition features a 5 HP motor, 15.75" x 31.5" table, and advanced automation. Includes a variable power electro-magnetic chuck, hydraulic feed, coolant system, and Sony digital readout.
TABLE SIZE........................... 15-3/4" x 31-1/2"
MAX. GRINDING CAPACITY .................. 16" X 32"
MAX. LONGITUDINAL TABLE TRAVEL, HYD. .... 32-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL .. 33-3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ........ 16"
MAX. CROSSFEED TRAVEL, MANUAL ........... 18"
DIST. FROM SPINDLE CENTER TO TABLE ...... 24-3/8"
VARIABLE TABLE SPEED, HYDRAULIC ......... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........... 1/8" TO 2"

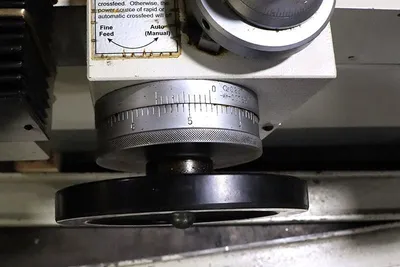

CROSSFEED HANDWHEEL, PER GRADUATION ..... 0.0025"
PER REVOLUTION .......................... 0.25"

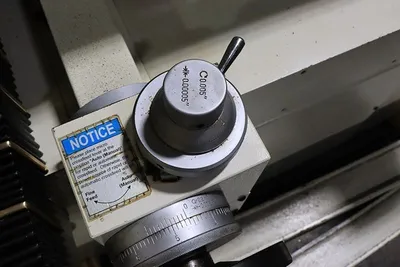

MICROFEED, PER REVOLUTION ............... 0.005"
PER GRADUATION .......................... 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ...... 0.000050" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ....... 0.0005"
PER REVOLUTION .......................... 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE ..................... 8" IPM
SPINDLE MOTOR ........................... 5 HP
STANDARD GRINDING WHEEL ............. 14"DIA. x 2"W x 5"B
APPROX. WEIGHT .......................... 6,400 LBS
APPROX. DIMENSIONS .................. 102" x 69" x 75"H
- HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED

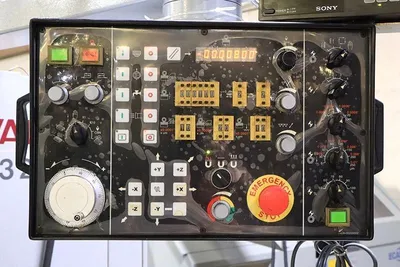

- ELECTROMECHANICALLY ACTUATED FEED OF SADDLE AC SERVO VERTICAL DRIVE PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005" T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION.
- FULLY AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF GRINDING WHEELHEAD, 0 T0 7 PARKOUT PASSES, AND RETRACTION OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF THE CYCLE.
- TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS WITH HIGH ACCURACY STEEL ROLLERS PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING GUIDE WAYS FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL & CROSS FEEDS 15-3/4" X 31-1/2" KANETSU "CROSS POLE"

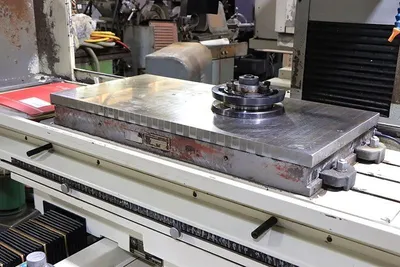

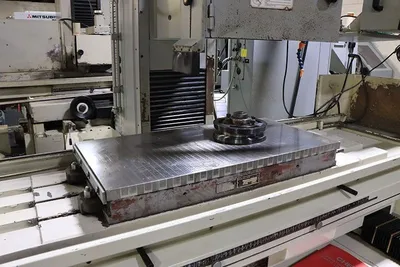

- ELECTRO-MAGNETIC CHUCK WITH A PENDANT MOUNTED POTENTIOMETER FOR VARIABLE HOLDING POWER AND A SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION OF WORK PIECE.

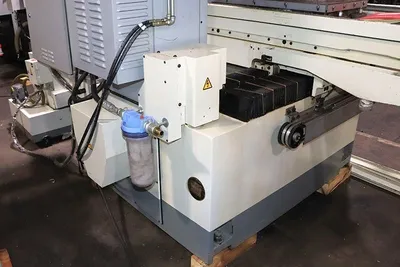

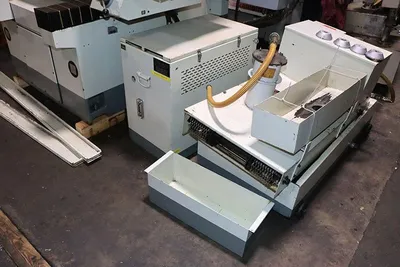

- COOLANT SYSTEM w/PAPER FILTRATION

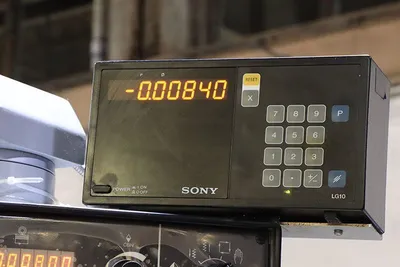

- "SONY" 1-AXIS DIGITAL READOUT

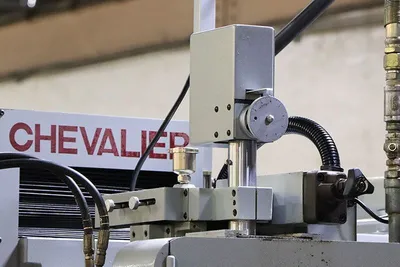

- POWER "OVER-THE-WHEEL" DRESSER, .00025" GRADUATION

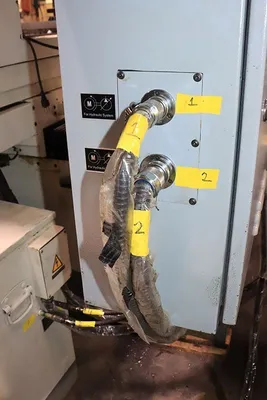

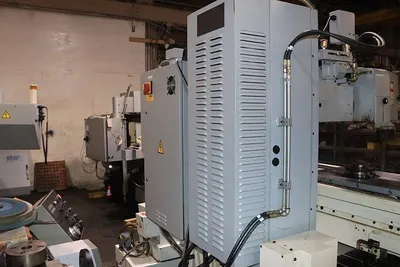

- EXTERNAL HYDRAULIC PUMP AND TANK
- 5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR
- MACHINE IS PRESENTLY WIRED FOR 3/60/230 VOLTS
*EXCELLENT CONDITION (ORIGINAL PAINT)
**** MACHINE IS AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
