| MAX CUTTING DIAMETER | 2" | 50.8 mm |
| MAX CUTTING LENGTH | 5.9" | 149.86 mm |
| X-AXIS TRAVEL | 6.5" | 165.1 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 3.14" (+/- 1.5") | 3.14" (+/- 1.5") |
| Z-AXIS TRAVEL | 11.8" | 299.72 mm |
| C-AXIS INDEXING | FULL C-AXIS (MAIN & SUB) | FULL C-AXIS (MAIN & SUB) |
| CHUCK SIZE | 6" | 152.4 mm |
| BAR CAPACITY | 2" | 50.8 mm |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 5" | 127 mm |
| SUB SPINDLE - BAR CAPACITY | 1.6" | 40.64 mm |
| SUB SPINDLE - SPINDLE MOTOR | 10 hp | 7.5 kW |
| SUB SPINDLE - SPINDLE SPEED | 5,000 RPM | 5,000 RPM |
| TURRET CAPACITY | 12 | 12 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |

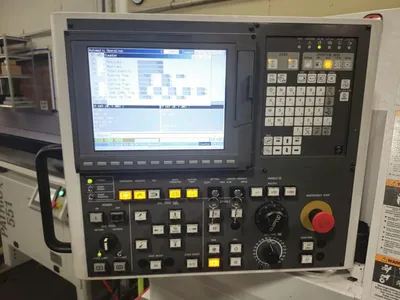

MITSUBISHI M70V CONTROL

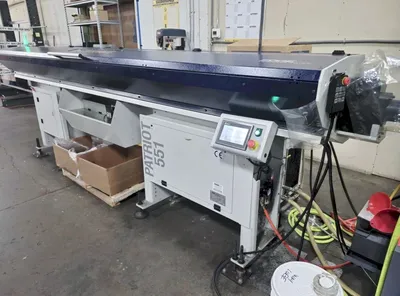

EDGE PATRIOT 551 MAGAZINE BAR FEEDER (12')
Y-AXIS
LIVE MILLING
SUB SPINDLE (X2 & Z2 AXES)
S22 COLLET CHUCKS
SPINDLE SYNC (FRONT & BACK)

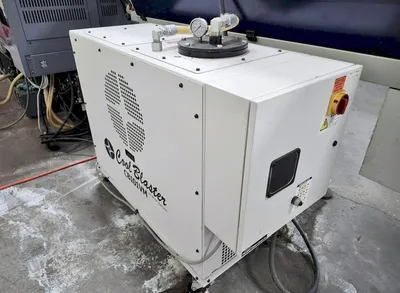

COOLBLASTER CB101VM HIGH-PRESSURE COOLANT UNIT (1,000 PSI)
COOLBLASTER MIST COLLECTOR (MIST CONTROL 1000)
PARTS CATCHER
PARTS CONVEYOR
CHIP CONVEYOR
WORK EJECTOR (SUB SPINDLE)
AN ASSORTMENT OF LIVE & STATIC TOOL HOLDERS
** AS OF JUNE 2026, RUNNING TIME - 7,401 HOURS
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** MACHINE FEATURES "SUPERIMPOSED CONTROL" WHERE MACHINING IS PERFORMED WITHT THE MOVEMENT OF THE SUB SPINDLE SYNCHRONIZED WITH THAT OF THE TOOL SLIDE **
