2017 HAAS UMC-750SS, 5-AXIS, TSC, WIPS
Sold

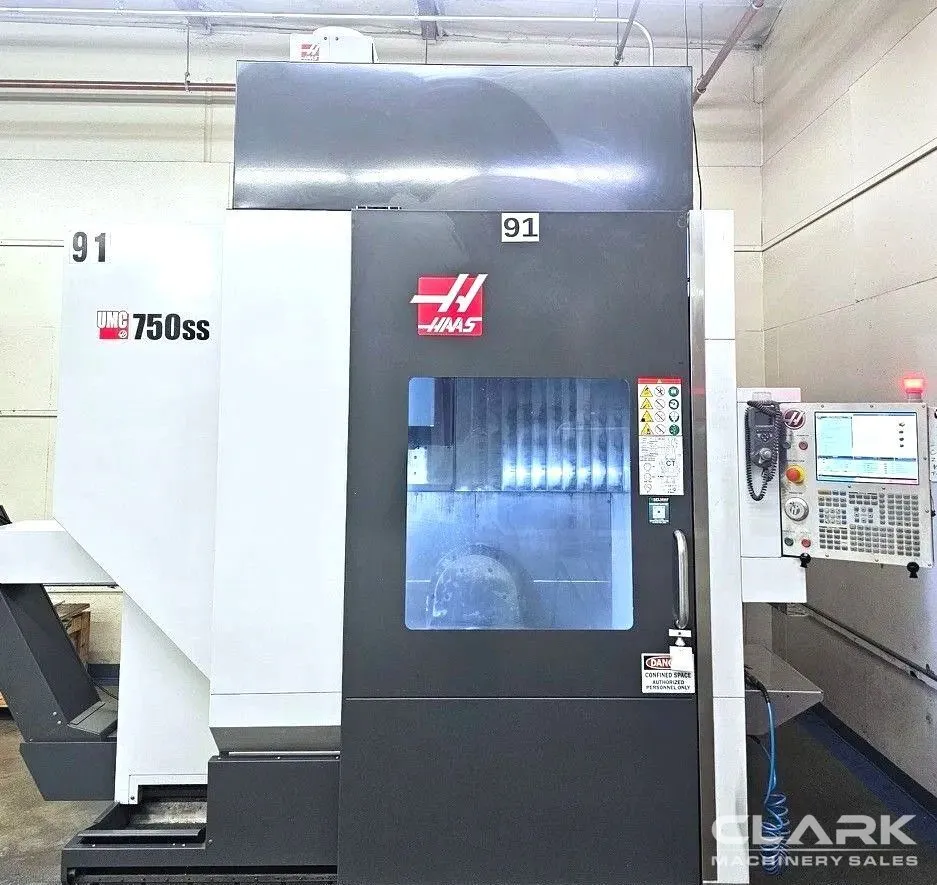

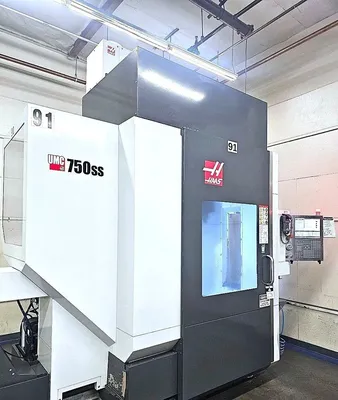

2017 HAAS UMC-750SS, 5-AXIS, TSC, WIPS

Sell Your HAAS UMC-750SS
Universal Machining Centers
Manufacturer:
HAAS
Model:
UMC-750SS
Condition:
Excellent
Year:
2017
Stock #:
500367
NextGen Control, 5-Axis, 15,000 RPM, Through-Spindle Coolant, Renishaw Probe, Chip Conveyor. This 2017 Haas UMC-750SS cnc universal machining center is also equipped with High Speed Machining, Dynamic Work Offsets and Tool Center Point Control. Sister unit also available in same facility.
PLATTER DIAMETER19.7"500.38 mm
TABLE LOAD CAPACITY660 lb299.4 kg
X-AXIS TRAVEL30"762 mm
Y-AXIS TRAVEL20"508 mm
Z-AXIS TRAVEL20"508 mm
B-AXIS (TILT) TRAVEL+120° to -35°+120° to -35°
C-AXIS (ROTATION) TRAVEL360°360°

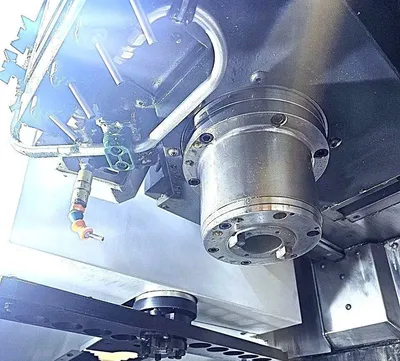

SPINDLE SPEED15,000 RPM15,000 RPM
SPINDLE MOTOR30 hp22.4 kW
SPINDLE TAPERCAT 40CAT 40
TOOL CAPACITY (ATC)4040
RAPID TRAVERSE RATE1200 ipm
CUTTING FEED RATE650 ipm
Dimensions162"L x 113"W x 110"H162"L x 113"W x 110"H
Weight20,000 lbs20,000 lbs

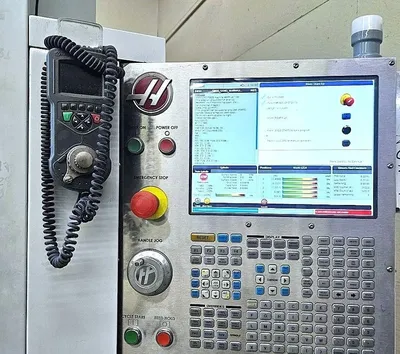

HAAS NEXGEN CNC CONTROL

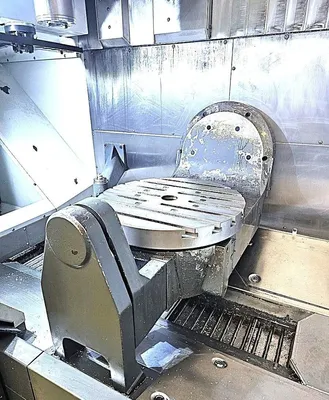

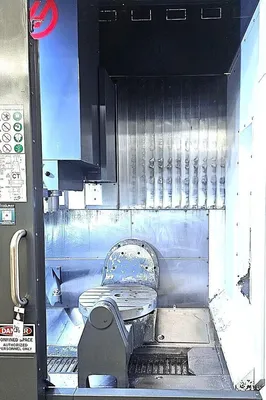

2-AXIS PROGRAMMABLE TRUNNION TABLE

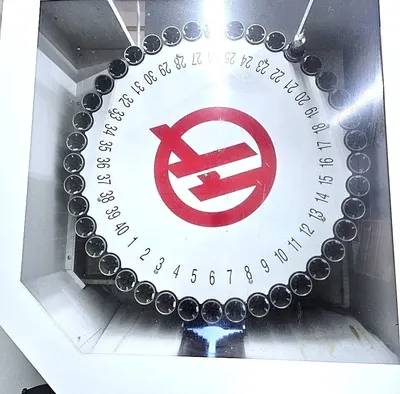

40-POSITION ATC
15,000 RPM SPINDLE HIGH SPEED MACHINING

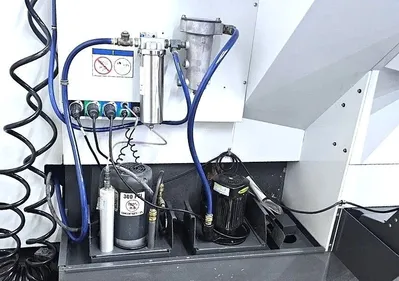

THROUGH SPINDLE COOLANT (300 PSI)
PROGRAMMABLE COOLANT NOZZLE
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
REMOTE JOG HANDLE WITH COLOR LCD

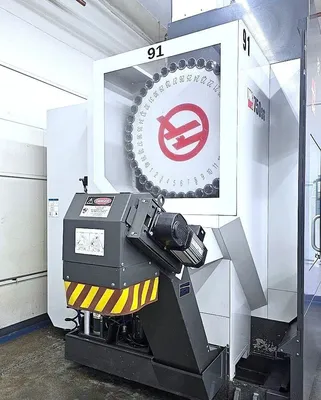

CHIP CONVEYOR (BELT-TYPE)
COOLANT TANK
RIGID TAPPING
DWO -DYNAMIC WORK OFFSETS
TCPC - TOOL CENTER POINT CONTROL
M19 SPINDLE ORIENTATION
COORDINATE ROTATION & SCALING
VPS EDITING
HIGH SPEED MACHINING
COMPENSATION TABLES
1 GB MEMORY EXPANSION
ETHERNET INTERFACE
HAAS CONNECT OPTION
SECOND HOME POSITION
MEDIA DISPLAY

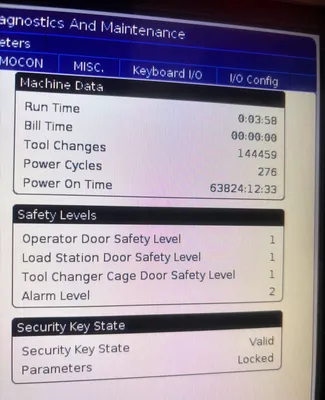

** AS OF JUNE, 2026 – FEED CUTTING TIME: 9,852 HOURS

** MACHINE MANUFACTURED DATE: OCTOBER, 2017

** REPLACEMENT COST NEW AS EQUIPPED: $280,000
