2020 HAAS VF-2SS, THROUGH-SPINDLE COOLANT, PROBE

2020 HAAS VF-2SS, THROUGH-SPINDLE COOLANT, PROBE

Sell Your HAAS VF-2SS
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your HAAS VF-2SS

Overview

Type:
Vertical Machining Centers
Manufacturer:
HAAS
Model:
VF-2SS
Year:
2020
Stock #:
500372
Status:
For Sale

Description

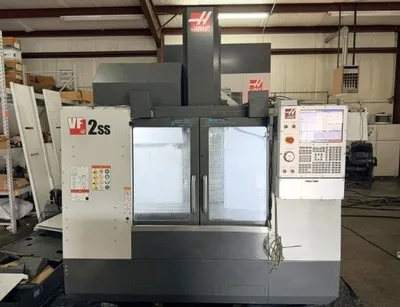

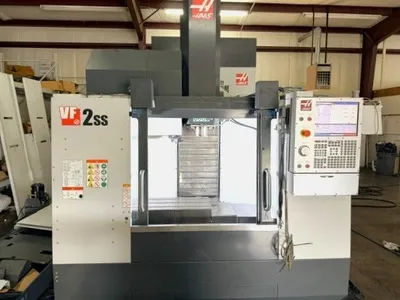

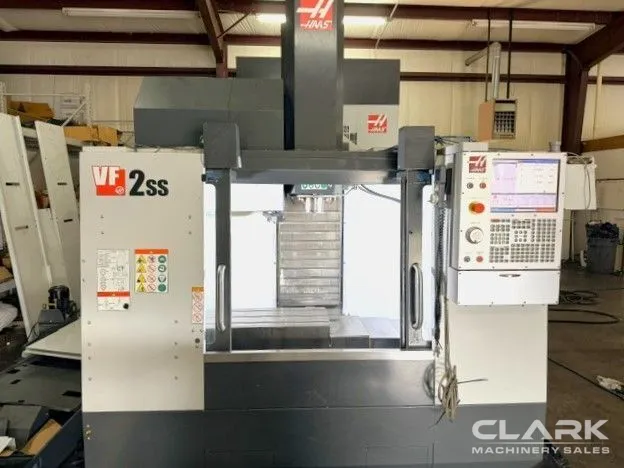

HAAS VF-2SS Vertical Machining Center, 2020 in very good condition and with through spindle coolant. Features include 30"x16"x20" travels, 30 HP spindle motor, 12000 RPM spindle speed, 30-tool ATC, and a 14"x36" table. Ideal for precision machining tasks.

TABLE LENGTH36"914.4 mm
TABLE WIDTH14"355.6 mm
TABLE SIZE36 x 1436 x 14
TABLE CAPACITY1,500 lb680.4 kg
X-AXIS TRAVEL30"762 mm
Y-AXIS TRAVEL16"406.4 mm
Z-AXIS TRAVEL20"508 mm
SPINDLE SPEED12,000 RPM12,000 RPM
SPINDLE MOTOR30 hp22.4 kW
SPINDLE TAPERCAT 40CAT 40
DIAMETER OF SPINDLE3"76.2 mm
TOOL CAPACITY (ATC)3030
RAPID TRAVERSE - X AXIS1,400 in/min.35.6 m/min.
RAPID TRAVERSE - Y AXIS1,400 in/min.35.6 m/min.
RAPID TRAVERSE - Z-AXIS1,400 in/min.35.6 m/min.
MAX RAPIDS1,400 in/min.35.6 m/min.
APPROX MACHINE WEIGHT8,000 lb3,628.7 kg
APPROX MACHINE DIMENSIONS88 x 92 x 11888 x 92 x 118
ControlCNC (NEXTGEN)CNC (NEXTGEN)
Dimensions88 x 92 x 11888 x 92 x 118
Weight80008000

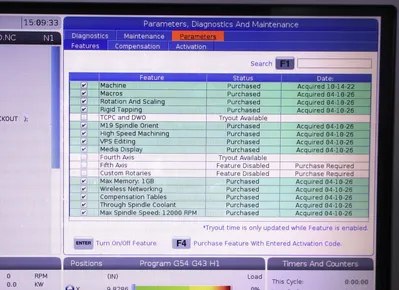

HAAS NEXTGEN CONTROL

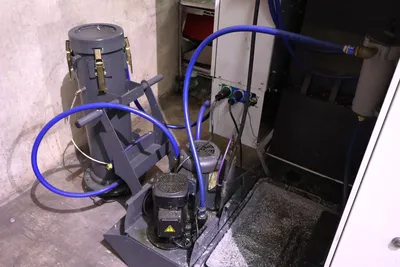

THROUGH-SPINDLE COOLANT (300 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)

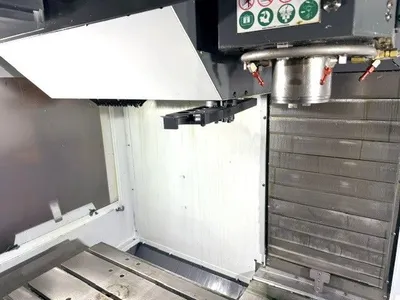

SIDE-MOUNT TOOL CHANGER (30 ATC)

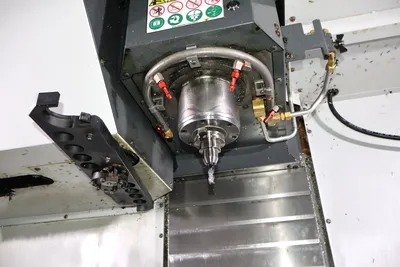

PROGRAMMABLE COOLANT NOZZLE
CHIP AUGER

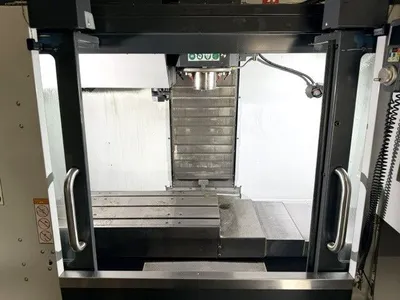

AUTO DOOR
RIGID TAPPING
SPINDLE ORIENTATION
HIGH-SPEED MACHINING
COORDINATE ROTATION AND SCALING
VISUAL PART PROGRAMMING SYSTEM
MACROS
USB PORT

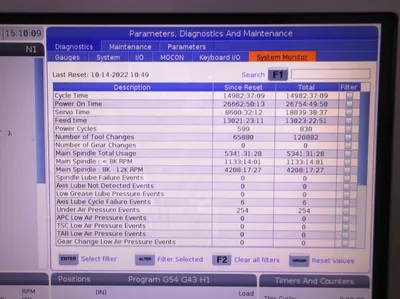

** AS OF JULY 2026, SPINDLE TIME - 5,341 HOURS

** MACHINE RAN IN A SINGLE SHIFT ENVIRONMENT
** FULL REPLACEMENT COST, AS EQUIPPED - $115,000
** MACHINE IS AVAILABLE IMMEDIATELY
