| SWING OVER BED | 21.7" | 551.18 mm |
| MAX CUTTING DIAMETER | 11.4" | 289.56 mm |
| MAX CUTTING LENGTH | 19.7" | 500.38 mm |
| X-AXIS TRAVEL | 8" | 203.2 mm |
| Z-AXIS TRAVEL | 22.8" | 579.12 mm |
| CHUCK SIZE | 10" | 254 mm |
| BAR CAPACITY | 3" | 76.2 mm |
| SPINDLE BORE | 3.38" | 85.852 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE SPEED | 3,500 RPM | 3,500 RPM |

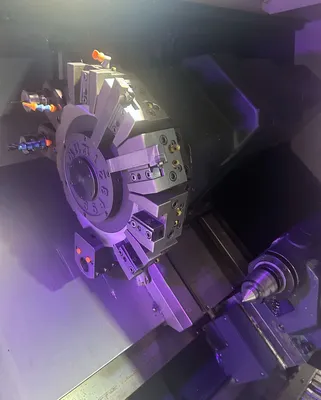

| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT55 | BMT55 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
DOOSAN-FANUC i SERIES CONTROL
LNS QUICK LOAD SERVO 80 S2 MAGAZINE BAR FEEDER (5’)
LIVE MILLING

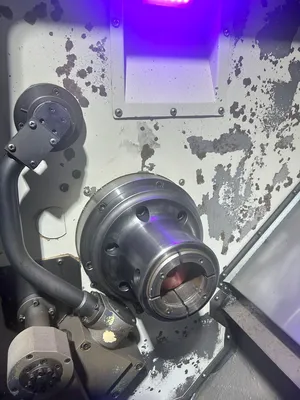

COLLET CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
BOX WAYS

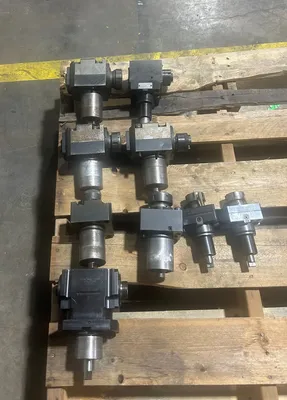

(8) RIGHT-ANGLE LIVE TOOL HOLDERS
(5) STRAIGHT LIVE TOOL HOLDERS

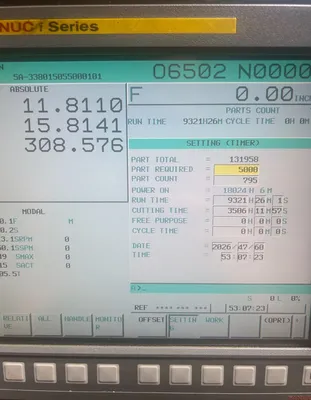

** AS OF AUGUST 2026, CUTTING TIME – 3,506 HOURS
** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
** FULL REPLACEMENT COST, AS EQUIPPED - $165,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURHCHASE
This equipment has been sold. Similar equipment available now is shown below.
