2012 DOOSAN LYNX 220LC

2012 DOOSAN LYNX 220LC

Sell Your DOOSAN LYNX 220LC
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your DOOSAN LYNX 220LC

Overview

Type:
CNC Lathes 2-Axis
Manufacturer:
DOOSAN
Model:
LYNX 220LC
Year:
2012
Stock #:
500409
Status:
For Sale

Description

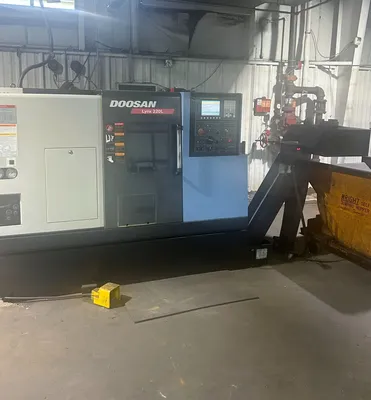

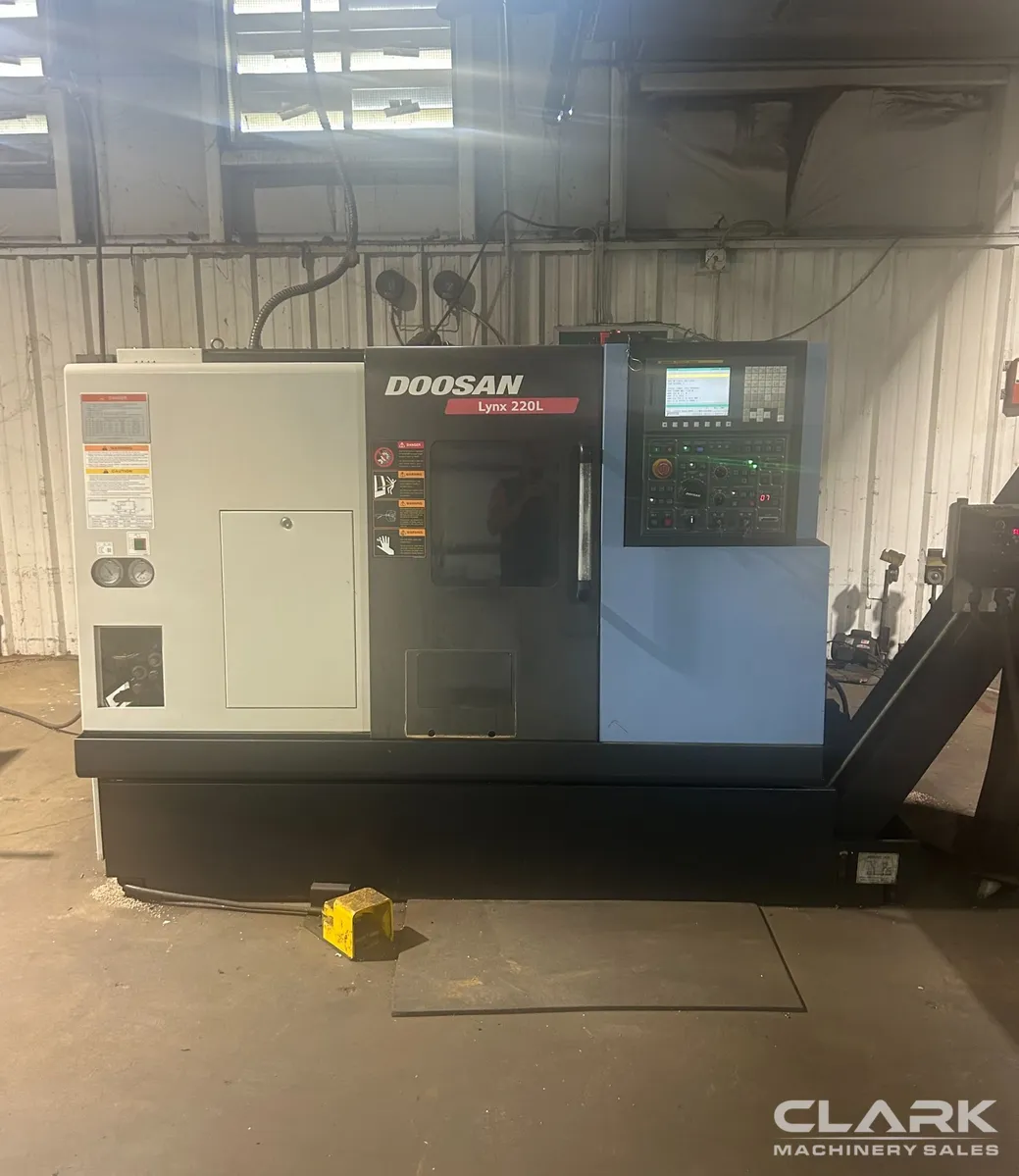

Fanuc Control, 8" chuck, 2.6" Bar Capacity, 20.7" Cutting Length, Tailstock, Tool Presetter, Chip Conveyor. This 2012 Doosan Lynx 220LC is in plant, under power and available immediately.

MAX SWING20"508 mm
MAX CUTTING DIAMETER12.6"320.04 mm
MAX CUTTING LENGTH21"533.4 mm
X-AXIS TRAVEL6.9"175.26 mm
Z-AXIS TRAVEL21.7"551.18 mm
CHUCK SIZE8"203.2 mm
BAR CAPACITY2.6"66.04 mm
SPINDLE BORE3"76.2 mm
SPINDLE NOSEA2-6A2-6
SPINDLE MOTOR20 hp14.9 kW
SPINDLE SPEED4,000 RPM4,000 RPM
TURRET POSITIONS1212

DOOSAN-FANUC i SERIES CONTROL
LONG BED (21” CUTTING LENGTH)
8”, 3-JAW HYDRAULIC CHUCK
2.6” BAR CAPACITY
TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR

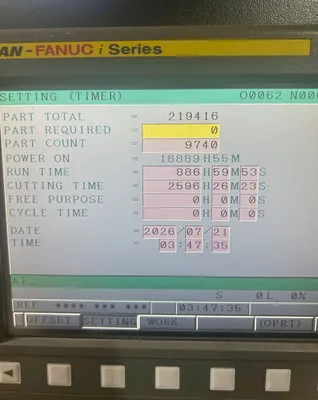

** AS OF JULY 2026, CUTTING TIME – 2,596 HOURS

** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
