| MAX SWING | 20" | 508 mm |
| MAX CUTTING DIAMETER | 12.6" | 320.04 mm |
| MAX CUTTING LENGTH | 21" | 533.4 mm |
| X-AXIS TRAVEL | 6.9" | 175.26 mm |
| Z-AXIS TRAVEL | 21.7" | 551.18 mm |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.6" | 66.04 mm |
| SPINDLE BORE | 3" | 76.2 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |

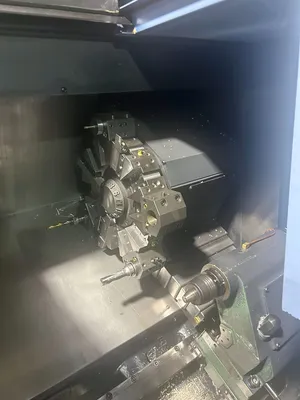

| TURRET POSITIONS | 12 | 12 |
DOOSAN-FANUC i SERIES CONTROL
LONG BED (21” CUTTING LENGTH)
8”, 3-JAW SAMCHULLY (MH-208VI) HYDRAULIC CHUCK
2.6” BAR CAPACITY
TAILSTOCK
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR (NOT INSTALLED, NEEDS BELT REPAIR)
BAR FEEDER INTERFACE

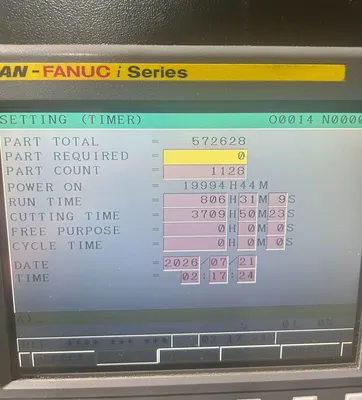

** AS OF AUGUST 2026, CUTTING TIME – 3,709 HOURS
** MACHINE CUT PRIMARILY ALLOY STEEL (8620)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
This equipment has been sold. Similar equipment available now is shown below.
