| TABLE LENGTH | 44.1" | 1,120.1 mm |
| TABLE WIDTH | 23.6" | 599.44 mm |
| TABLE CAPACITY | 2,210 lb | 1,002.4 kg |
| X-AXIS TRAVEL | 40.2" | 1,021.1 mm |
| Y-AXIS TRAVEL | 23.6" | 599.44 mm |
| Z-AXIS TRAVEL | 23.6" | 599.44 mm |
| DISTANCE FROM WORK FACE TO SPINDLE | 4.9" | 124.46 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 24 | 24 |
| RAPID TRAVERSE - X AXIS | 945 in/min. | 24 m/min. |
| RAPID TRAVERSE - Y AXIS | 945 in/min. | 24 m/min. |
| RAPID TRAVERSE - Z-AXIS | 788 in/min. | 20 m/min. |
| CUTTING FEEDRATE | 393 ipm | |
| APPROX MACHINE WEIGHT | 15,000 lb | 6,803.9 kg |
| APPROX MACHINE DIMENSIONS | 128″ x 98″ x 110″ | 128″ x 98″ x 110″ |

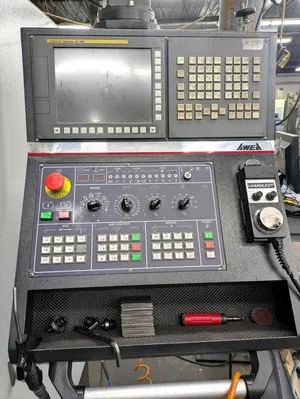

FANUC Oi-MD CNC CONTROL
THROUGH SPINDLE COOLANT (1000 PSI)
12,000 RPM SPINDLE
93 GALLON COOLANT TANK
CHIP CONVEYOR
RIGID TAPPING
BOXWAY
** MACHINE WAS CUTTING PRIMARILY ALUMINUM & SS

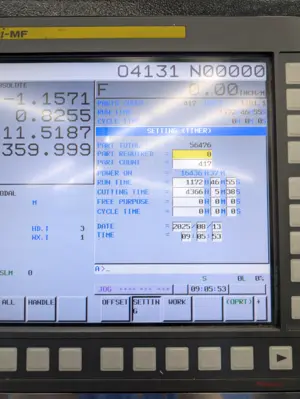

** AS OF JULY, 2026 - FEED CUTTING TIME HOURS: 4,356
** MACHINE INSTALLATION DATE: 2019
** MACHINE MANUFACTURE DATE: NOVEMBER, 2017

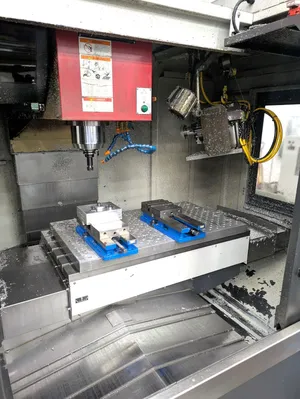

** VICES IN PICTURE NOT INCLUDED
** UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
This equipment has been sold. Similar equipment available now is shown below.
