| MAX CUTTING DIAMETER | 11.75" | 298.45 mm |
| MAX CUTTING LENGTH | 22.5" | 571.5 mm |
| X-AXIS TRAVEL | 8.4" | 213.36 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | +/- 2" | +/- 2" |
| Z-AXIS TRAVEL | 22.5" | 571.5 mm |
| CHUCK SIZE | 8" | 203.2 mm |
| BAR CAPACITY | 2.5" | 63.5 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 5" | 127 mm |
| SUB SPINDLE - SPINDLE NOSE | A2-5 | A2-5 |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| TURRET CAPACITY | 24 | 24 |
| TURRET TYPE | BMT65 | BMT65 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |
HAAS NEXTGEN CONTROL

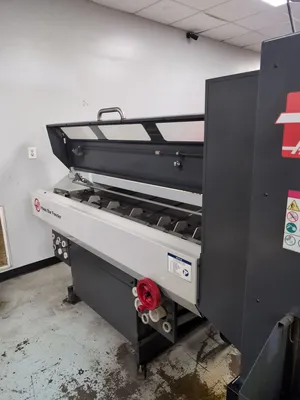

HAAS BAR FEEDER
Y-AXIS
LIVE MILLING (6,000 RPM UPGRADE)

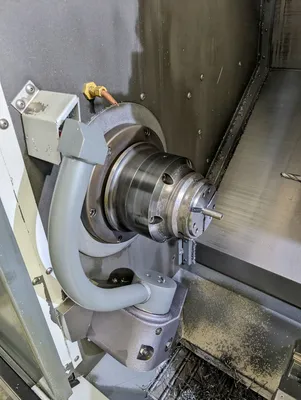

SUB SPINDLE

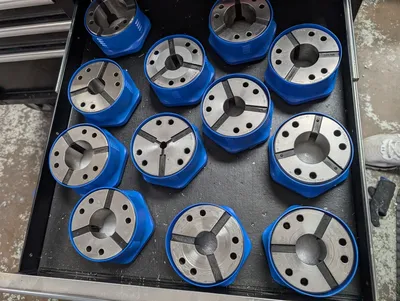

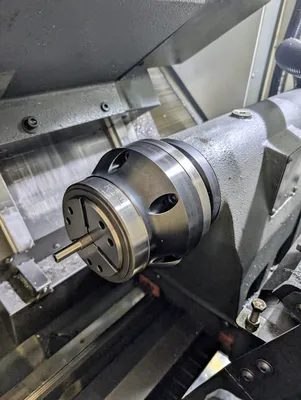

ROYAL QG-65 COLLET CHUCKS (MAIN & SUB)

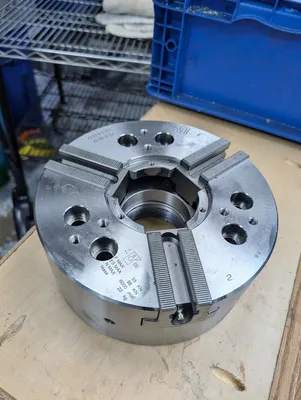

8”, 3-JAW LMC HYDRAULIC CHUCK (MAIN)
5”, 3-JAW HYDRAULIC CHUCK (SUB)

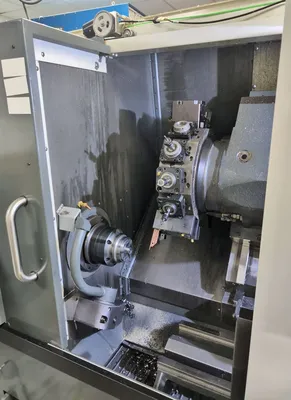

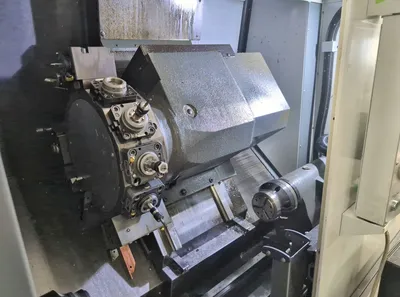

24-STATION BMT65 TURRET
AUTO DOOR
TOOL PRESETTER
PARTS CATCHER

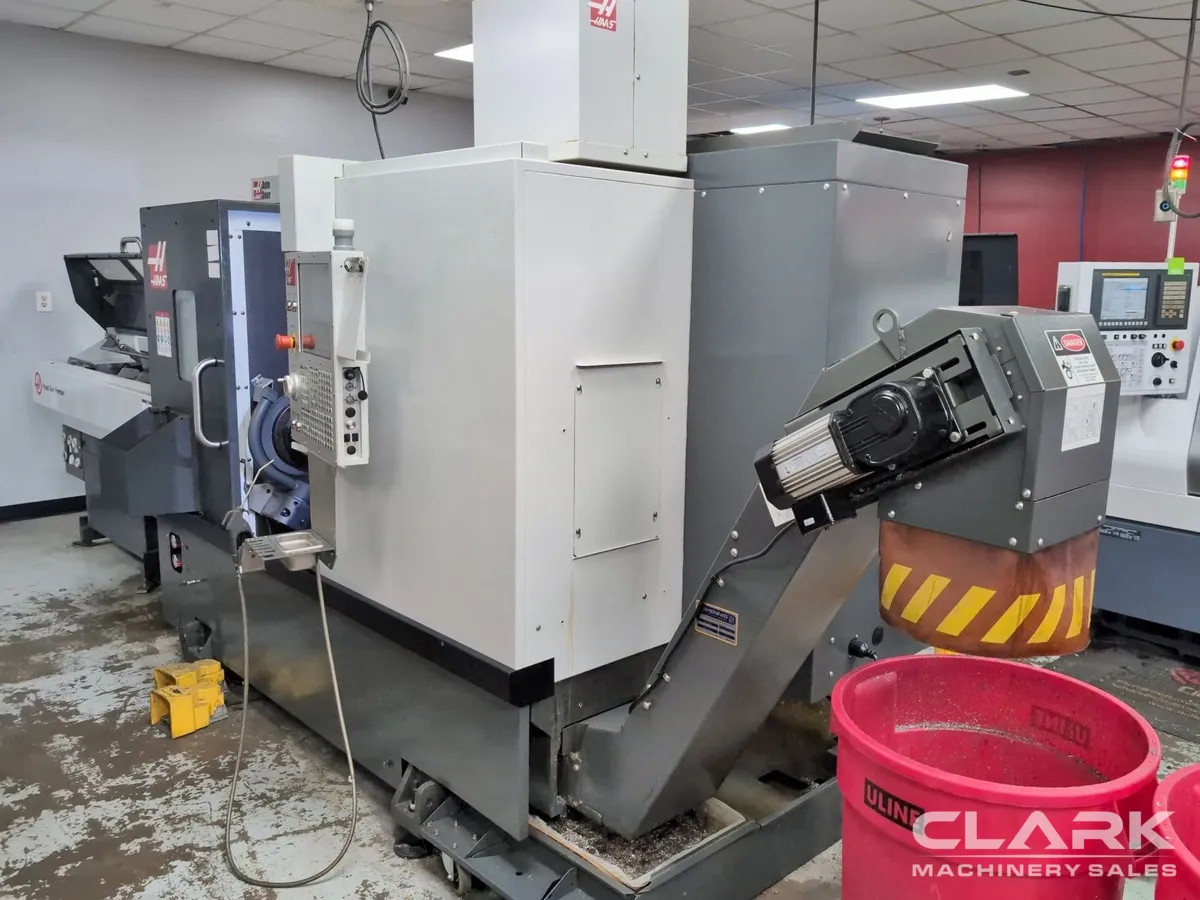

CHIP CONVEYOR
AUTO JET AIR BLAST
CHIP TRAY FILTER KIT
ENCLOSURE EXHAUST SYSTEM

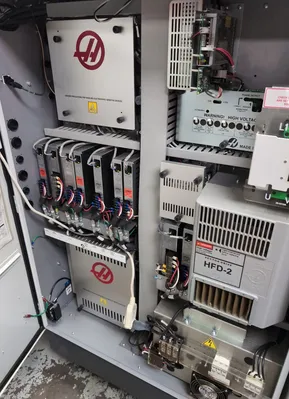

CNC CONTROL CABINET COOLER
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTION
HAASCONNECT: REMOTE MONITORING
(4) STRAIGHT LIVE TOOL HOLDERS
(2) 90 DEGREE LIVE TOOL HOLDERS

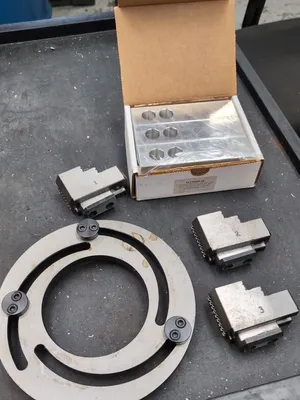

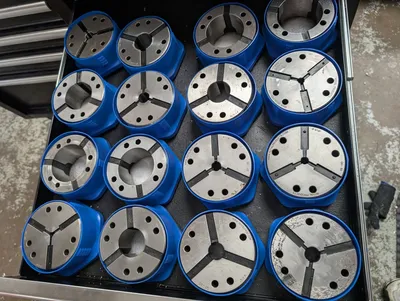

AN ASSORTMENT OF COLLETS & STATIC TOOL BLOCKS (SEE PHOTOS)

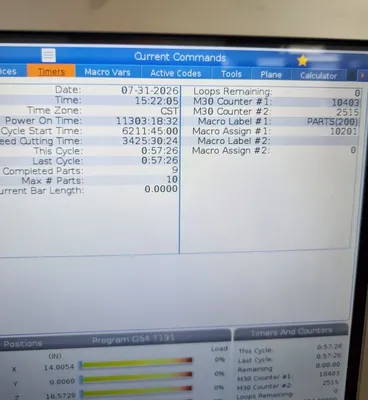

** AS OF JULY 2026, CUTTING TIME – 3,425 HOURS
** MACHINE CUT PRIMARILY ALUMINUM, STAINLESS & PLASTIC
** FULL REPLACEMENT COST OF MACHINE & ALL ACCESSORIES - $220,000+
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
This equipment has been sold. Similar equipment available now is shown below.
