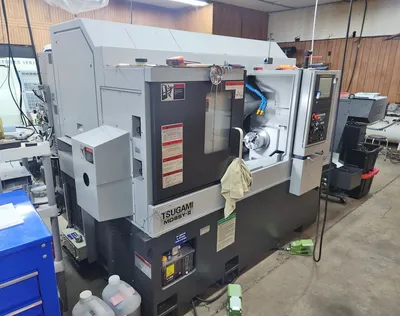

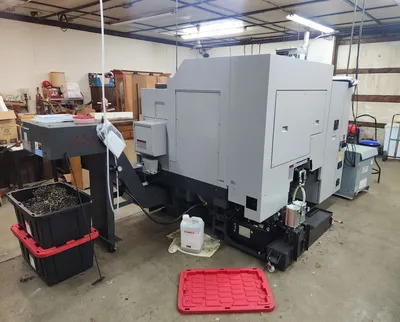

2023 TSUGAMI M08SY-II, LIKE-NEW, 17 CUTTING HOURS

2023 TSUGAMI M08SY-II, LIKE-NEW, 17 CUTTING HOURS

Sell Your TSUGAMI M08SY-II
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your TSUGAMI M08SY-II

Document (1)

M08SY - Brochure.pdf

Overview

Type:
CNC Lathes Multi-Axis
Manufacturer:
TSUGAMI
Model:
M08SY-II
Condition:
Like New
Year:
2023
Stock #:
500436
Status:
For Sale

Description

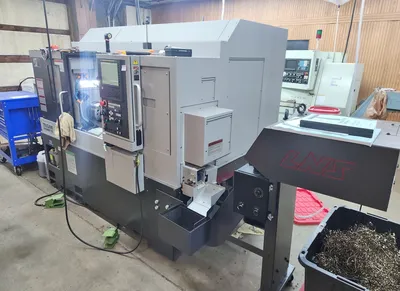

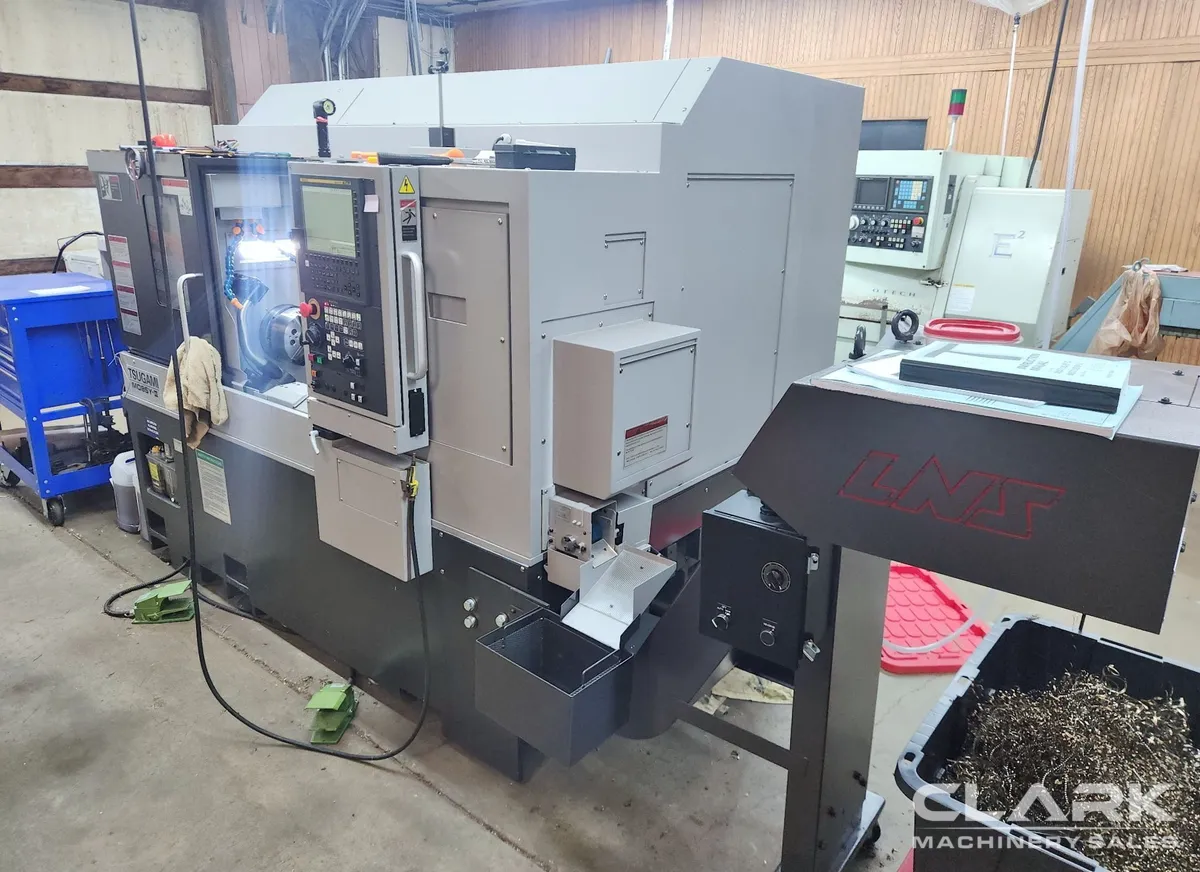

Fanuc 0i-TF Control, Y-Axis, Live Milling, Sub Spindle, 8" & 6" chucks, 2.5" Bar Capacity, Tool Presetter, Parts Catcher, Parts Conveyor, Chip Conveyor, (4) Live Holders, Like-New, only 17 Cutting Hours. This 2023 Tsugami M08SY-II is in plant, under power and available immediately.

MAX CUTTING DIAMETER11.02"279.91 mm
MAX CUTTING LENGTH14.96"379.98 mm
X-AXIS TRAVEL8.7"220.98 mm
Y-AXISYesYes
Y-AXIS TRAVEL+/- 1.97"+/- 1.97"
Z-AXIS TRAVEL15.75"400.05 mm
C-AXIS INDEXINGFULL C-AXISFULL C-AXIS
CHUCK SIZE8"203.2 mm
BAR CAPACITY2.56"65.024 mm
SPINDLE BORE2.87"72.898 mm
SPINDLE NOSEA2-6A2-6
SPINDLE MOTOR15 hp11.2 kW
SPINDLE SPEED4,500 RPM4,500 RPM
SUB SPINDLEYesYes

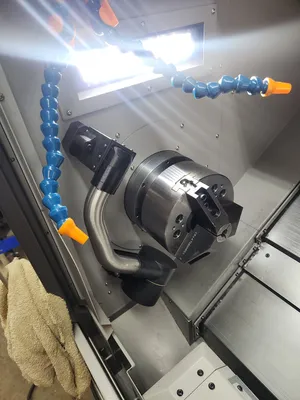

SUB SPINDLE - CHUCK SIZE6"152.4 mm
SUB SPINDLE - SPINDLE BORE2.3"58.42 mm
SUB SPINDLE - SPINDLE MOTOR10 hp7.5 kW
SUB SPINDLE - SPINDLE SPEED4,500 RPM4,500 RPM

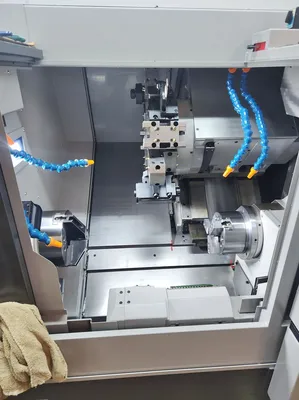

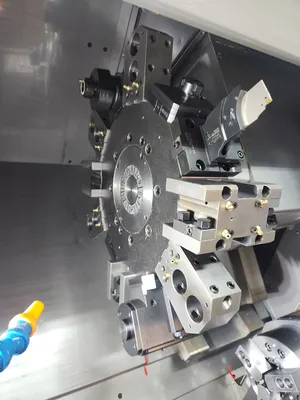

TURRET CAPACITY12 (ALL LIVE CAPABLE)12 (ALL LIVE CAPABLE)
LIVE MILLINGYesYes
LIVE MILLING SPEED5,000 RPM5,000 RPM

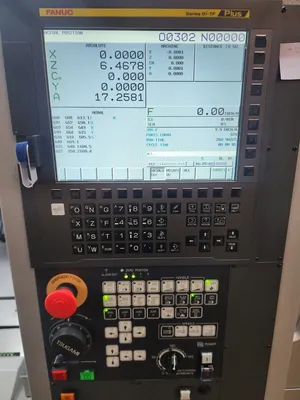

FANUC 0i-TF PLUS CONTROL
Y-AXIS
LIVE MILLING
SUB SPINDLE
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
PNEUMATIC PARTS EJECTOR
CHIP CONVEYOR (LNS)
HIGH-PRESSURE COOLANT (300 PSI)
(2) AXIAL LIVE TOOL HOLDERS
(2) RADIAL LIVE TOOL HOLDERS
BOX WAYS ON X & Y AXES

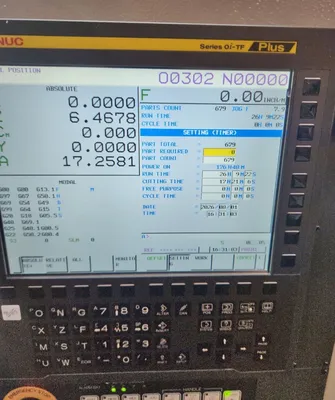

** AS OF AUGUST 2026, CUTTING TIME – 17 HOURS

** MACHINE IS LIKE-NEW
** FULL REPLACEMENT COST, AS EQUIPPED - $160,000+
** MACHINE CUT TOOL STEEL & TITANIUM (LIGHTLY USED)
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
