2017 DOOSAN DNM 200/5AX, 5-AXIS, 12000 RPM, 40 ATC, 4000 HOURS
ConditionUsed
1 available

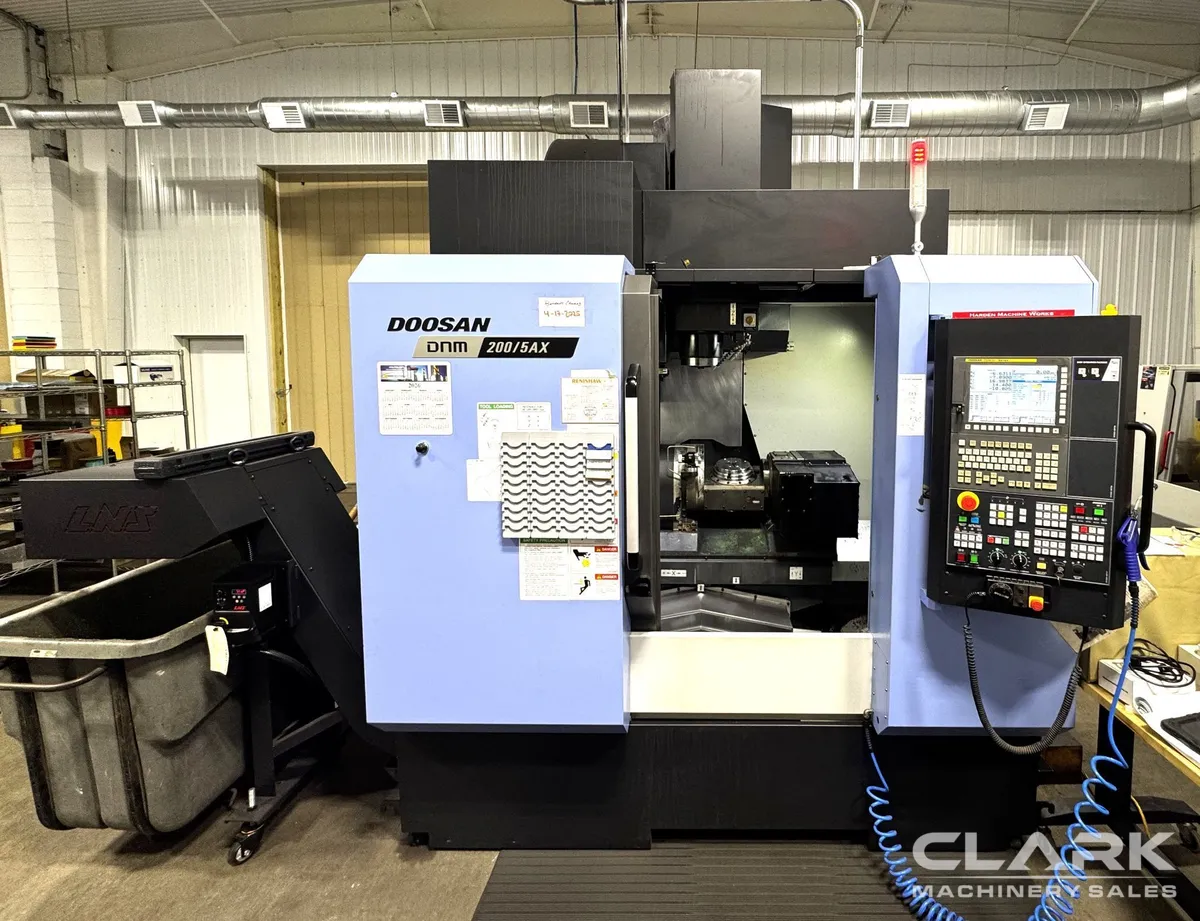

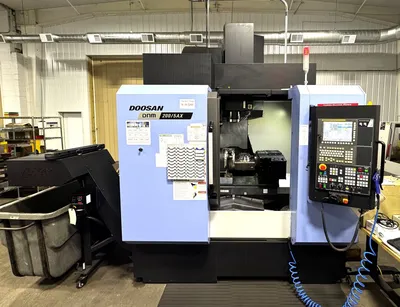

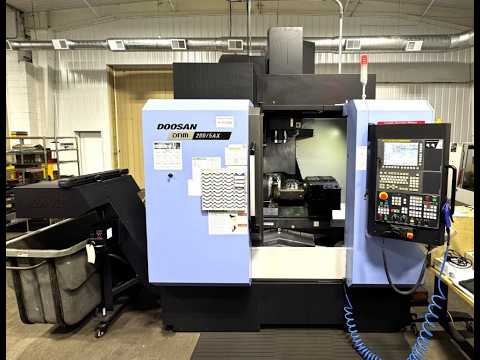

3,728 Hours, 5-Axis (3+2), 12,000 RPM, Through Spindle Coolant, Renishaw Probe, 40 ATC, Chip Conveyor. This 2017 Doosan DNM 200/5AX compact cnc multi-axis vertical machining center includes built-in 5-axis trunnion with tilting A-axis and rotating C-axis. Perfect for machining complex parts in single set-ups.

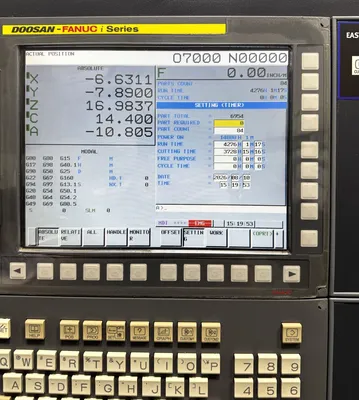

DOOSAN-FANUC i SERIES CNC CONTROL

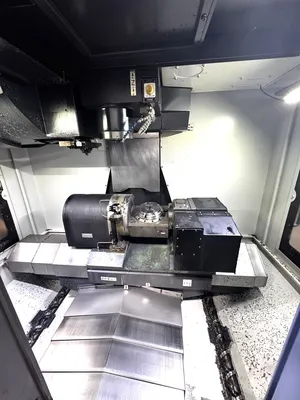

BUILT-IN 5TH AXIS TRUNNION ROTARY TABLE (3+2)
THROUGH SPINDLE COOLANT (230 PSI)
RENISHAW WORK PROBE, TOOL SETTER, & RMI
12,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
COOLANT TANK
OIL SKIMMER
** MACHINE CUTTING PRIMARILY S7 & 4140
** MACHINE MANUFACTURED DATE: JULY, 2017
** AS OF AUGUST, 2026 - CUTTING TIME: 3,728 HOURS
** MACHINE REPLACEMENT PRICE NEW AS EQUIPPED: $200,000
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
3,728 Hours, 5-Axis (3+2), 12,000 RPM, Through Spindle Coolant, Renishaw Probe, 40 ATC, Chip Conveyor. This 2017 Doosan DNM 200/5AX compact cnc multi-axis vertical machining center includes built-in 5-axis trunnion with tilting A-axis and rotating C-axis. Perfect for machining complex parts in single set-ups.
Imperial
| TABLE LENGTH | 7.87" |
| TABLE WIDTH | 7.87" |
| X-AXIS TRAVEL | 15.75" |
| Y-AXIS TRAVEL | 17.13" |
| Z-AXIS TRAVEL | 19.69" |
| A-AXIS ROTATION | +30° -120° |
| C-AXIS ROTATION | 360° |
| SPINDLE SPEED | 12,000 RPM |
| SPINDLE MOTOR | 25 hp |
| SPINDLE TAPER | CAT 40 (BIG PLUS) |
| TOOL CAPACITY (ATC) | 40 |
| RAPID TRAVERSE - X AXIS | 1,417 in/min. |
| RAPID TRAVERSE - Y AXIS | 1,417 in/min. |
| RAPID TRAVERSE - Z-AXIS | 1,181 in/min. |
| APPROX MACHINE WEIGHT | 12,500 lb |
DOOSAN-FANUC i SERIES CNC CONTROL
BUILT-IN 5TH AXIS TRUNNION ROTARY TABLE (3+2)
THROUGH SPINDLE COOLANT (230 PSI)
RENISHAW WORK PROBE, TOOL SETTER, & RMI
12,000 RPM SPINDLE
40 POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
COOLANT TANK
OIL SKIMMER
** MACHINE CUTTING PRIMARILY S7 & 4140
** MACHINE MANUFACTURED DATE: JULY, 2017
** AS OF AUGUST, 2026 - CUTTING TIME: 3,728 HOURS
** MACHINE REPLACEMENT PRICE NEW AS EQUIPPED: $200,000
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
