| SWING OVER BED | 23.6" | 599.44 mm |
| MAX CUTTING DIAMETER | 13.8" | 350.52 mm |
| MAX CUTTING LENGTH | 20.1" | 510.54 mm |
| X-AXIS TRAVEL | 8.1" | 205.74 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | 2.05 | 2.05 |
| Z-AXIS TRAVEL | 22" | 558.8 mm |
| BAR CAPACITY | 2.6" | 66.04 mm |
| SPINDLE BORE | 3" | 76.2 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE SPEED | 4,500 RPM | 4,500 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 1,181 in/min. | 30 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,181 in/min. | 30 m/min. |
| TURRET CAPACITY | 12 | 12 |
| TURRET TYPE | BMT55 | BMT55 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 6,000 RPM | 6,000 RPM |

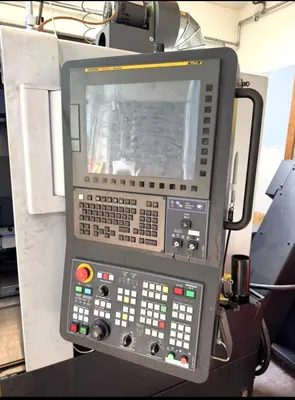

FANUC OI CNC
LNS BARFEED
LIVE TOOLING
Y-AXIS
C-AXIS
COLLET CHUCK
HYDRAULIC TAILSTOCK
CHIP CONVEYOR
PARTS CATCHER
COOLANT SYSTEM
** MACHINE WILL COME WITH MISC BORING BARS, LIVE HOLDER ETC.
*** MACHINE CAN BE SEEN UNDER POWER WITH PRIOR NOTICE.
This equipment has been sold. Similar equipment available now is shown below.
