2023 HURCO TM10Mi, LIVE MILLING AND BARFEED
ConditionUsed
1 available

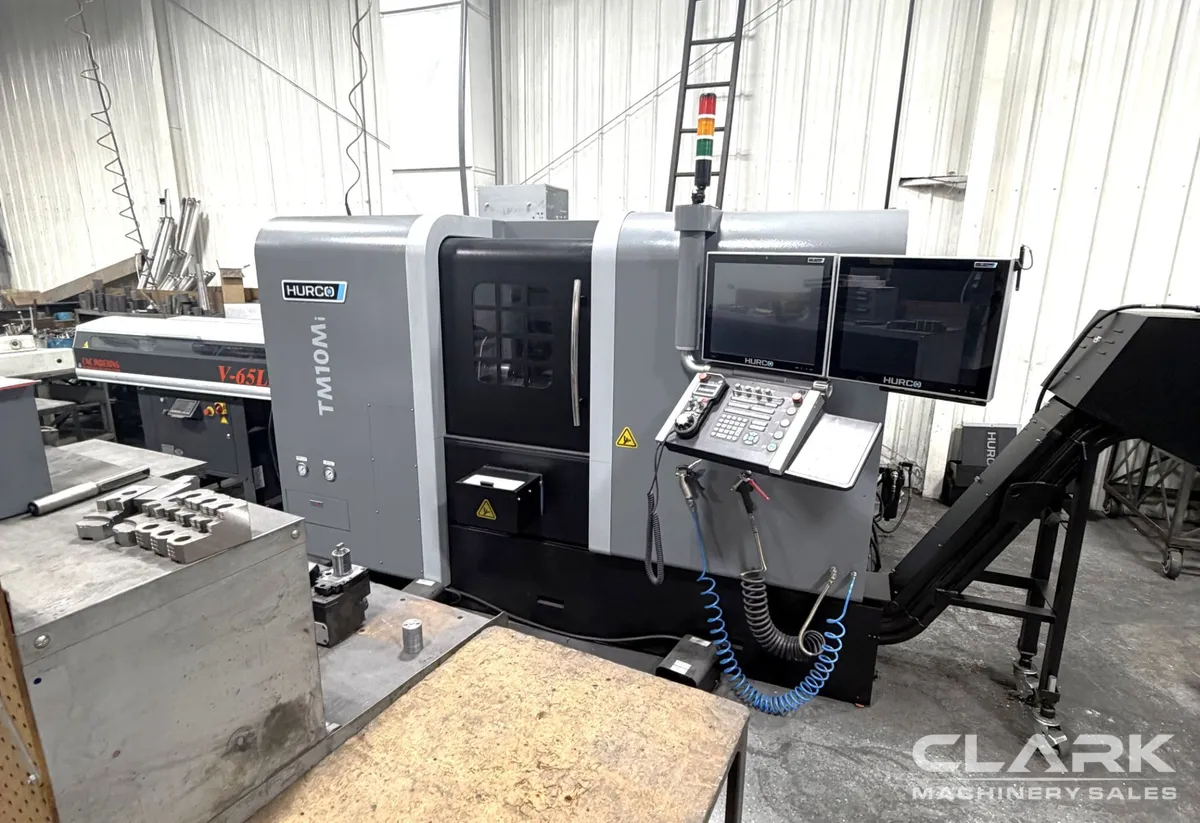

Used 2023 HURCO TM10Mi multi-axis CNC lathe with WinMax control, live milling, 12-station VDI turret, 3-jaw chuck, barfeed, parts catcher and chip conveyor. 928 machine hours; 117 spindle hours. Machine built in 2023 and installed new 2025
WINMAX CNC CONTROL
10" 3-JAW HYDRAULIC CHUCK
LIVE TOOL, FULL C-AXIS
TOOL PRESETTER
DUAL SCREEN
CHIP CONVEYOR

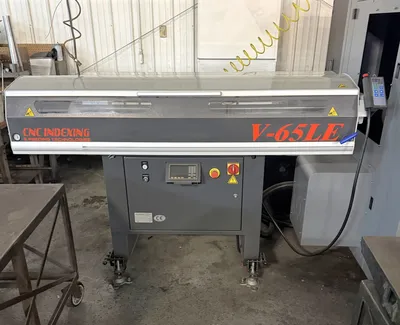

TRACER V-65LE PNEUMATIC BARFEED, 5’ BAR CAPACITY
PARTS CATCHER
TAILSTOCK, MANUAL POSITION, PROGRAMMABLE HYDRAULIC QUILL
MISC TOOLING INCLUDED
FLOOD COOLANT
WINMAX STANDARD PACKAGE
TOOL PROBING
2ND SCREEN
ULTIMOTION
THREAD REPAIR
4GB RAM, 128 GB HARD DRIVE
*MACHINE TIME: 969.6 HOURS
**SPINDLE TIME: 117 HOURS
REPLACEMENT COST ON ABOVE MACHINE SYSTEM IS $158,000
MACHINE CAME OUT OF OWNER-OPERATOR, SINGLE SHIFT ENVIRONMENT, BARELY USED.
AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
Used 2023 HURCO TM10Mi multi-axis CNC lathe with WinMax control, live milling, 12-station VDI turret, 3-jaw chuck, barfeed, parts catcher and chip conveyor. 928 machine hours; 117 spindle hours. Machine built in 2023 and installed new 2025
Imperial
| SWING OVER BED | 22.9" |
| SWING OVER CROSS SLIDE | 15.8" |
| MAX CUTTING DIAMETER | 11.6" |
| MAX CUTTING LENGTH | 29.1" |
| DISTANCE BETWEEN CENTERS | 29.29" |
| X-AXIS TRAVEL | 9.84" |
| Z-AXIS TRAVEL | 31.1" |
| BAR CAPACITY | 3.07" |
| SPINDLE BORE | 3.74" |
| SPINDLE NOSE | A2-8 |
| SPINDLE MOTOR | 40 hp |
| SPINDLE SPEED | 3,000 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 1,181 in/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,181 in/min. |
| TURRET CAPACITY | 12 |
| TURRET TYPE | VDI |
| LIVE MILLING | Yes |
| LIVE MILLING SPEED | 4,000 RPM |
| LIVE MILLING MOTOR | 8.8 hp |
| Weight | 11,936 |
WINMAX CNC CONTROL
10" 3-JAW HYDRAULIC CHUCK
LIVE TOOL, FULL C-AXIS
TOOL PRESETTER
DUAL SCREEN
CHIP CONVEYOR
TRACER V-65LE PNEUMATIC BARFEED, 5’ BAR CAPACITY
PARTS CATCHER
TAILSTOCK, MANUAL POSITION, PROGRAMMABLE HYDRAULIC QUILL
MISC TOOLING INCLUDED
FLOOD COOLANT
WINMAX STANDARD PACKAGE
TOOL PROBING
2ND SCREEN
ULTIMOTION
THREAD REPAIR
4GB RAM, 128 GB HARD DRIVE
*MACHINE TIME: 969.6 HOURS
**SPINDLE TIME: 117 HOURS
REPLACEMENT COST ON ABOVE MACHINE SYSTEM IS $158,000
MACHINE CAME OUT OF OWNER-OPERATOR, SINGLE SHIFT ENVIRONMENT, BARELY USED.
AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE.
