| SWING OVER BED | 30.7" | 779.78 mm |
| MAX CUTTING DIAMETER | 14.8" | 375.92 mm |
| MAX CUTTING LENGTH | 29.9" | 759.46 mm |
| X-AXIS TRAVEL | 10.23" | 259.84 mm |
| Y-AXIS | Yes | Yes |
| Y-AXIS TRAVEL | + / - 4.13" | + / - 4.13" |
| Z-AXIS TRAVEL | 32.67" | 829.82 mm |
| C-AXIS INDEXING | .001 DEGREE | .001 DEGREE |
| CHUCK SIZE | 10" | 254 mm |
| BAR CAPACITY | 3" | 76.2 mm |
| SPINDLE BORE | 3.38" | 85.852 mm |
| SPINDLE NOSE | A2-8 | A2-8 |
| SPINDLE MOTOR | 30 hp | 22.4 kW |
| SPINDLE SPEED | 4,000 RPM | 4,000 RPM |
| RAPID TRAVERSE RATE - X-AXIS | 1,181 in/min. | 30 m/min. |
| RAPID TRAVERSE RATE - Z-AXIS | 1,181 in/min. | 30 m/min. |
| SUB SPINDLE | Yes | Yes |
| SUB SPINDLE - CHUCK SIZE | 8" | 203.2 mm |
| SUB SPINDLE - SPINDLE BORE | 2.4" | 60.96 mm |
| SUB SPINDLE - SPINDLE MOTOR | 20 hp | 14.9 kW |
| SUB SPINDLE - SPINDLE SPEED | 6,000 RPM | 6,000 RPM |
| SUB SPINDLE / W-AXIS TRAVEL | 32.7" | 830.58 mm |
| TURRET CAPACITY | 12 | 12 |
| LIVE MILLING | Yes | Yes |
| LIVE MILLING SPEED | 5,000 RPM | 5,000 RPM |
| LIVE MILLING MOTOR | 7.5 hp | 5.6 kW |
| Dimensions | 153" X 74" X 85" | 153" X 74" X 85" |
| Weight | 14,000 LBS | 14,000 LBS |

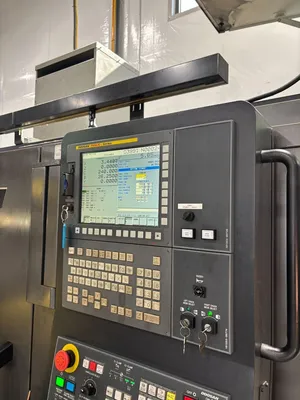

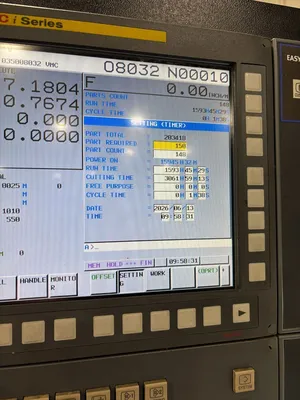

FANUC i-SERIES CNC CONTROL

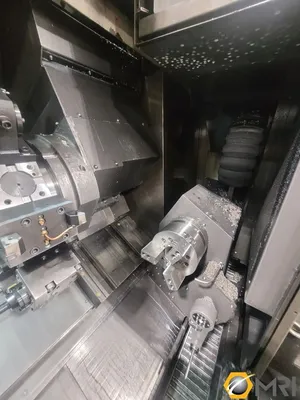

SUB SPINDLE
Y-AXIS
LIVE MILLING
(3) LIVE MILLING HOLDERS INCLUDED
TOOL PRESETTER
PARTS CATCHER
PARTS CONVEYOR
HENNIG CHIP CONVEYOR
COOLANT TANK

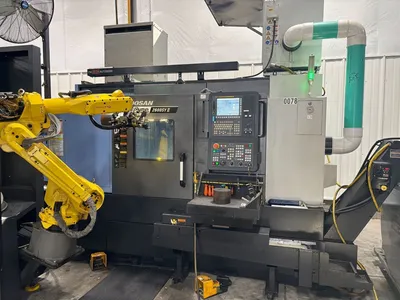

***** ROBOT AND AUTO DOORS AS PICTURED NOT INCLUDED
** ORIGINAL OWNER
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
This equipment has been sold. Similar equipment available now is shown below.
