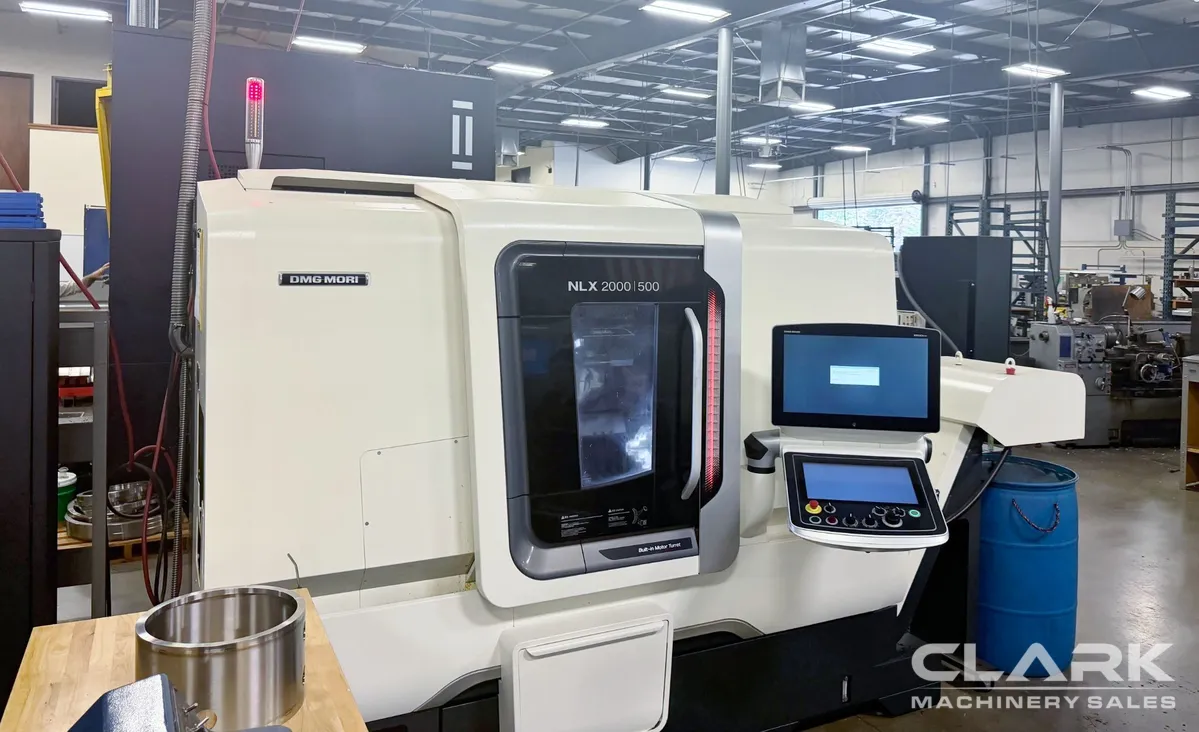

2018 DMG MORI NLX 2000SY/500, Y-AXIS, SUB SPINDLE, LOW HOURS

2018 DMG MORI NLX 2000SY/500, Y-AXIS, SUB SPINDLE, LOW HOURS

Sell Your DMG MORI NLX 2000SY/500
410.252.5494
Sales@ClarkMachinerySales.com
ConditionUsed
1 available
Sell Your DMG MORI NLX 2000SY/500

Overview

Type:
CNC Lathes Multi-Axis
Manufacturer:
DMG MORI
Model:
NLX 2000SY/500
Condition:
Excellent
Year:
2018
Stock #:
500563
Status:
For Sale

Description

Y-Axis, Live Milling, Sub Spindle, 8" chuck (main), 6" chuck (sub), Tool Presetter, Parts Catcher, Chip Conveyor, High-Pressure Coolant, Low Hours. This 2018 DMG MORI NLX 2000SY/500 CNC lathe is in plant, under power and available immediately.

SWING OVER CROSS SLIDE29.7"754.38 mm
MAX CUTTING DIAMETER14.4"365.76 mm
MAX CUTTING LENGTH20"508 mm
X-AXIS TRAVEL10.2"259.08 mm
Y-AXISYesYes
Y-AXIS TRAVEL3.9" (+/- 2")3.9" (+/- 2")
Z-AXIS TRAVEL23.2"589.28 mm
CHUCK SIZE8"203.2 mm
BAR CAPACITY2.5"63.5 mm
SPINDLE BORE2.8"71.12 mm
SPINDLE NOSEA2-6A2-6
SPINDLE MOTOR20 hp14.9 kW
SPINDLE SPEED5,000 RPM5,000 RPM
SUB SPINDLEYesYes
SUB SPINDLE - CHUCK SIZE6"152.4 mm
SUB SPINDLE - SPINDLE NOSEA2-5A2-5
SUB SPINDLE - SPINDLE MOTOR15 hp11.2 kW
SUB SPINDLE - SPINDLE SPEED6,000 RPM6,000 RPM
TURRET CAPACITY1212
TURRET TYPEBMTBMT
LIVE MILLINGYesYes

ERGOLINE/CELOS CONTROL
Y-AXIS
LIVE MILLING
SUB SPINDLE
8”, 3-JAW HYDRAULIC CHUCK (MAIN)
6”, 3-JAW HYDRAULIC CHUCK (SUB)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
HIGH-PRESSURE COOLANT

** MACHINE CUT PRIMARILY ALUMINUM & STAINLESS
** FULL REPLACEMENT COST, AS EQUIPPED - $350,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
