2022 HAAS ST-20Y, FINISHING SPINDLE & BAR FEEDER
ConditionUsed
1 available
2022 HAAS ST-20Y CNC lathe, multi-axis with finishing spindle and bar feeder, offers precision with 11.75" max cutting diameter, 22" length, and live milling. Features WiFi, remote monitoring, and touchscreen.
HAAS NEXTGEN CNC CONTROL
8" 3-JAW HYDRAULIC MAIN CHUCK
6" 3-JAW HYDRAULIC SUB SPINDLE CHUCK

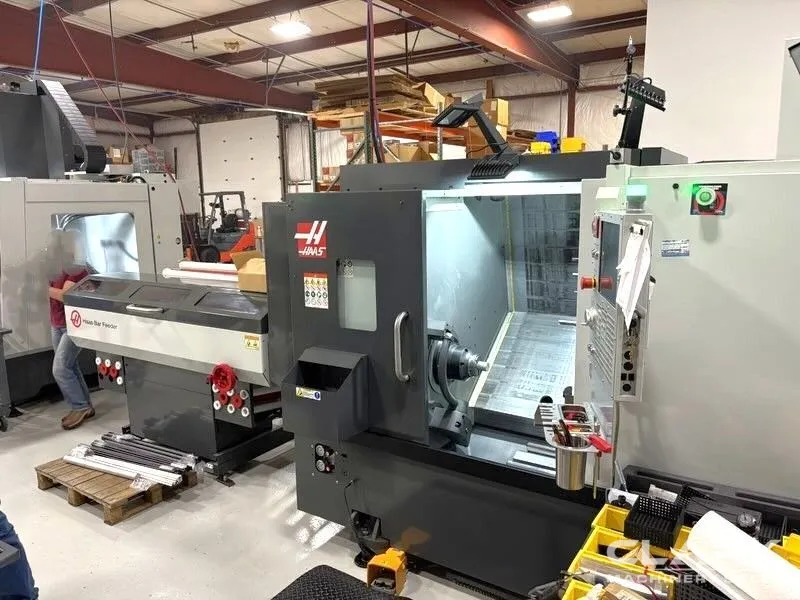

HAAS BAR FEEDER V2
A2-5 FINISHING SUB-SPINDLE
5000 RPM MAIN SPINDLE RPM (UPGRADE)
6000 RPM SPEED UPGRADE FOR LIVE TOOLING

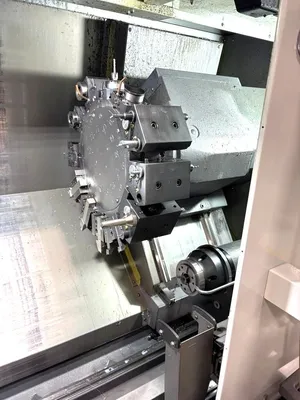

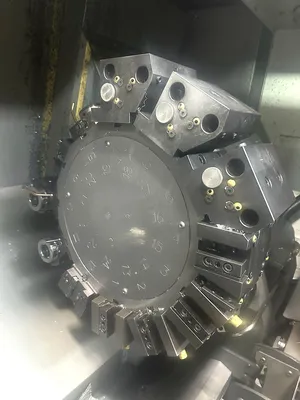

24-STATION BMT65 TURRET (UPGRADE)
MACHINE WILL COME WITH MISC STATIONARY AND LIVE HOLDERS
HIGH-PRESSURE COOLANT
AUTOMATIC TOOL PRESETTER

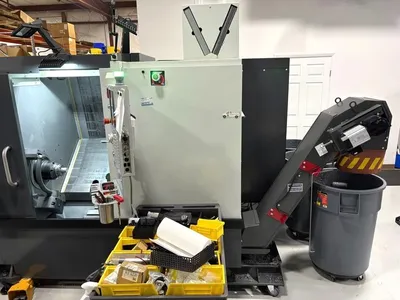

BELT-TYPE CHIP CONVEYOR
COOLANT CHILLER
AUTOMATIC COOLANT REFILL
AUXILIARY COOLANT FILTER
COOLANT TANK OIL SKIMMER
ENCLOSURE EXHAUST SYTEM
HIGH-INTENSITY LIGHTING
MAIN & SUB-SPINDLE AIR BLAST
PARTS CATCHER
WIFI CAMERA
LOW VOLTAGE CONFIGURATION
CNC CONTROL CABINET COOLER
VISUAL PART PROGRAMMING SYSTEM (VPS)
1GB PROGRAM MEMORY
EARLY POWER-FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAASCONNECT REMOTE MONITORING
MEDIA DISPLAY M-CODE (M130)
RIGID TAPPING
SPINDLE ORIENTATION
WIFI CONNECTION FOR HAAS CONTROL

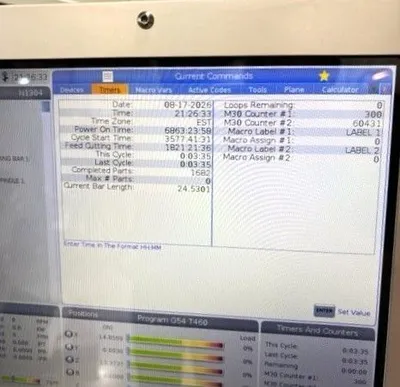

HOURS OF USE:
* POWER ON TIME: 6,863 HOURS
* CYCLE START TIME: 3,577 HOURS
* FEED CUTTING TIME: 1,821 HOURS

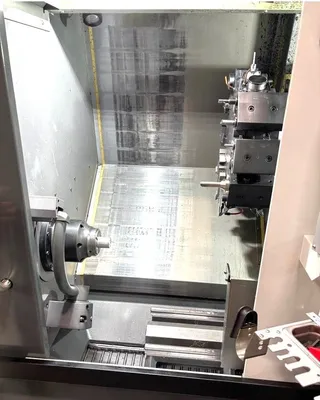

*** NOTE *** COLLET SYSTEM SEEN IN PHOTOS ON MAIN & SUB - NOT INCLUDED IN SALE. ORIGINAL 8" & 6" 3-JAW CHUCKS WILL ACCOMPANY SALE
REPLACEMENT COST FOR ABOVE SYSTEM IF PURCHASE NEW: $217,600.... ($139,000 IN OPTIONS)
MACHINE IS AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE
2022 HAAS ST-20Y CNC lathe, multi-axis with finishing spindle and bar feeder, offers precision with 11.75" max cutting diameter, 22" length, and live milling. Features WiFi, remote monitoring, and touchscreen.
Imperial
| SWING OVER BED | 31" |
| SWING OVER CROSS SLIDE | 20" |
| SWING OVER SADDLE | 23" |
| MAX CUTTING DIAMETER | 11.75" |
| MAX CUTTING LENGTH | 22" |
| DISTANCE BETWEEN CENTERS | 26" |
| X-AXIS TRAVEL | 8.4" |
| Y-AXIS | Yes |
| Y-AXIS TRAVEL | ±2.0 |
| Z-AXIS TRAVEL | 22.5" |
| CHUCK SIZE | 8" |
| BAR CAPACITY | 2.5" |
| SPINDLE BORE | 3" |
| SPINDLE NOSE | A2-6 |
| SPINDLE SPEED | 5,000 RPM |
| SUB SPINDLE | Yes |
| TURRET CAPACITY | 24 |
| TURRET TYPE | BMT65 |
| LIVE MILLING | Yes |
| LIVE MILLING SPEED | 6,000 RPM |
| LIVE MILLING MOTOR | 5 hp |
| Control | CNC (HAAS) |
HAAS NEXTGEN CNC CONTROL
8" 3-JAW HYDRAULIC MAIN CHUCK
6" 3-JAW HYDRAULIC SUB SPINDLE CHUCK
HAAS BAR FEEDER V2
A2-5 FINISHING SUB-SPINDLE
5000 RPM MAIN SPINDLE RPM (UPGRADE)
6000 RPM SPEED UPGRADE FOR LIVE TOOLING
24-STATION BMT65 TURRET (UPGRADE)
MACHINE WILL COME WITH MISC STATIONARY AND LIVE HOLDERS
HIGH-PRESSURE COOLANT
AUTOMATIC TOOL PRESETTER
BELT-TYPE CHIP CONVEYOR
COOLANT CHILLER
AUTOMATIC COOLANT REFILL
AUXILIARY COOLANT FILTER
COOLANT TANK OIL SKIMMER
ENCLOSURE EXHAUST SYTEM
HIGH-INTENSITY LIGHTING
MAIN & SUB-SPINDLE AIR BLAST
PARTS CATCHER
WIFI CAMERA
LOW VOLTAGE CONFIGURATION
CNC CONTROL CABINET COOLER
VISUAL PART PROGRAMMING SYSTEM (VPS)
1GB PROGRAM MEMORY
EARLY POWER-FAILURE DETECTION MODULE
ETHERNET INTERFACE
HAASCONNECT REMOTE MONITORING
MEDIA DISPLAY M-CODE (M130)
RIGID TAPPING
SPINDLE ORIENTATION
WIFI CONNECTION FOR HAAS CONTROL
HOURS OF USE:
* POWER ON TIME: 6,863 HOURS
* CYCLE START TIME: 3,577 HOURS
* FEED CUTTING TIME: 1,821 HOURS
*** NOTE *** COLLET SYSTEM SEEN IN PHOTOS ON MAIN & SUB - NOT INCLUDED IN SALE. ORIGINAL 8" & 6" 3-JAW CHUCKS WILL ACCOMPANY SALE
REPLACEMENT COST FOR ABOVE SYSTEM IF PURCHASE NEW: $217,600.... ($139,000 IN OPTIONS)
MACHINE IS AVAILABLE FOR IMMEDIATE INSPECTION AND PURCHASE
